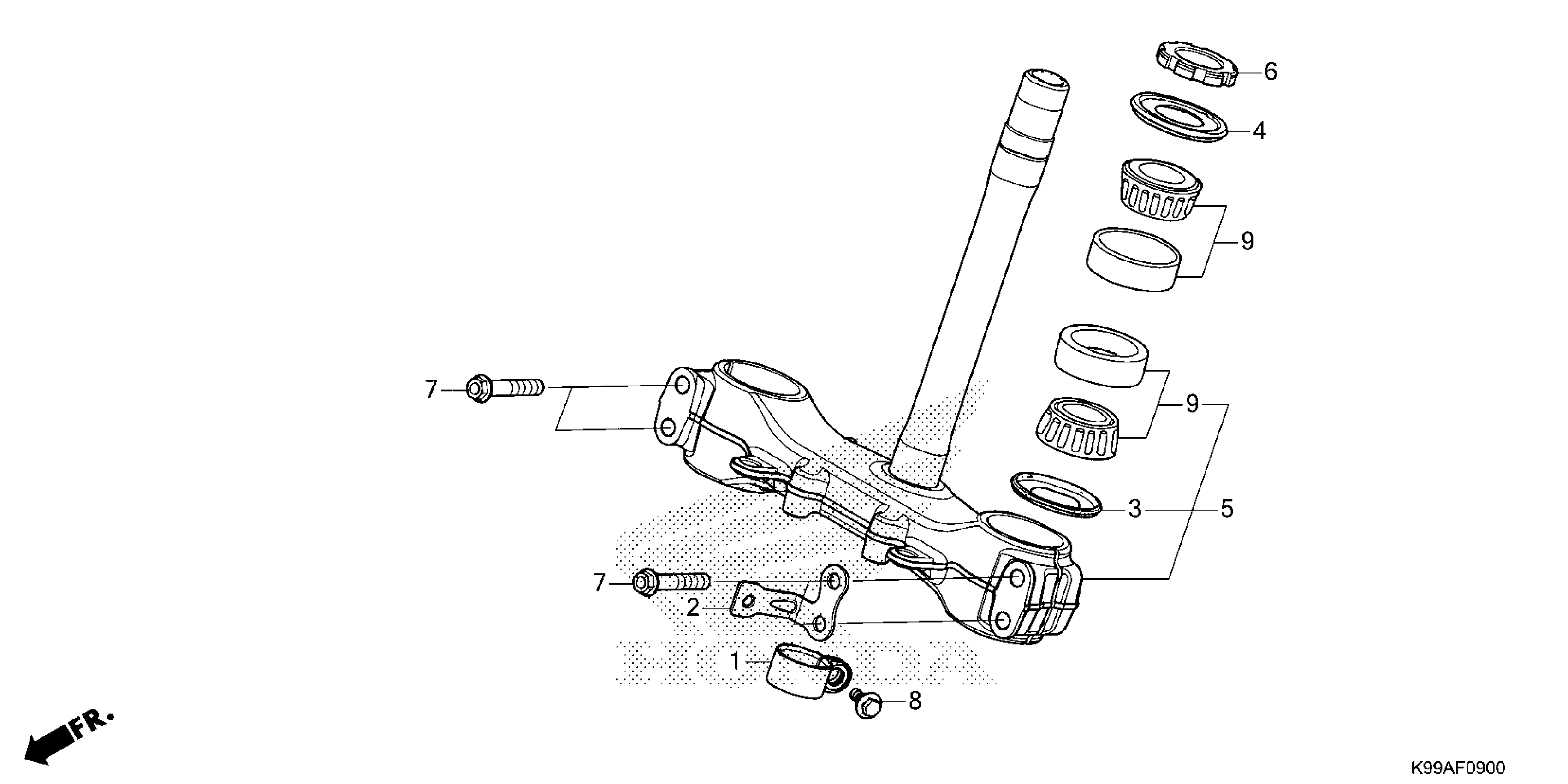

Honda CRF300FA (26) MOTORCYCLE, BRA, VIN# 9C2NE074-TR400001 TO 9C2NE074-TR499999 STEERING STEM Diagram

#

Description
Price

1

GUIDE, BRAKE HOSE

45463-K3W-B00

$6.36

2

STAY COMP (LOWER)

45464-K99-A70

$5.87

3

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

4

DUST SEAL, STEERING (UPPER)

53214-KZZ-901

$6.05

5

STEM SUB-ASSY., STRG

53219-K99-A71

$152.46

6

THREAD, STEERING HEAD TOP

53229-KPS-900

$10.84

7

BOLT, FLANGE (8X45)

90107-KZ4-J40

$2.13

8

BOLT, FLANGE (6MM) (NOT AVAILABLE)

90113-K3W-B00

Unavailable

9

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

9

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00
