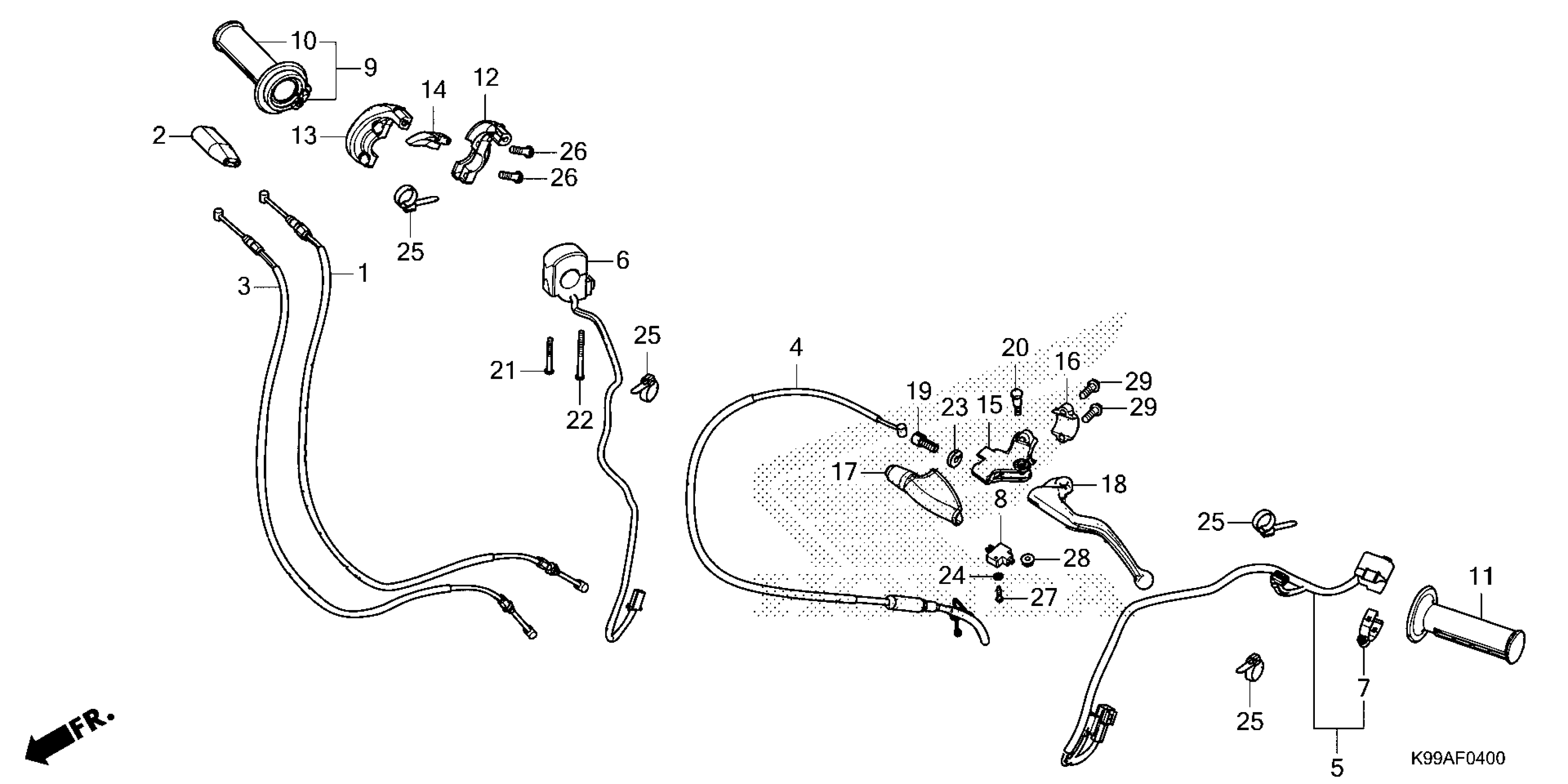

Honda CRF300FA (26) MOTORCYCLE, BRA, VIN# 9C2NE074-TR400001 TO 9C2NE074-TR499999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-K99-A01

$35.56

2

COVER, THROTTLE CABLE

17913-K99-A00

$3.25

3

CABLE B, THROTTLE

17920-K99-A01

$34.45

4

CABLE, CLUTCH

22870-K99-A01

$34.19

5

SWITCH ASSY., ENGINE STOP

35130-K99-A01

$91.39

6

SWITCH ASSY., START

35150-K99-A01

$225.98

7

BAND SET

35181-HM8-V81

$9.44

8

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

9

GRIP ASSY., THROTTLE

53140-K99-A00

$11.81

10

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

10

GRIP, R. HANDLE (COO)

53165-KPT-305

$10.28

11

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

11

GRIP, L. HANDLE (COO)

53166-KPT-305

$10.28

12

HOUSING, THROTTLE (UPPER)

53167-K99-A00

$75.15

13

HOUSING, THROTTLE (LOWER)

53168-K99-A00

$76.21

14

SLIDER, THROTTLE CABLE

53169-K99-A00

$1.49

15

BRACKET, L. HANDLE LEVER

53172-K99-A00

$96.18

16

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

17

COVER, L. HANDLE LEVER

53177-KPS-730

$1.49

18

LEVER, L. HANDLEBAR (COO) This part replaces 53178-KPS-900.

53178-KPT-305

$10.18

18

LEVER, L. HANDLEBAR (COO)

53178-KPT-305

$10.18

19

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

20

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.67

21

SCREW, PAN (4X32)

90120-KPS-900

$1.49

22

SCREW, PAN (4X45)

90121-KPS-900

$1.93

23

NUT, FIXING

90322-KRM-860

$1.52

24

WASHER, SPRING (3MM)

90520-KPS-900

$1.49

25

BAND, WIRE

90650-KW3-000

$4.48

26

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

27

SCREW, TAPPING (3X12)

93901-32320

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
