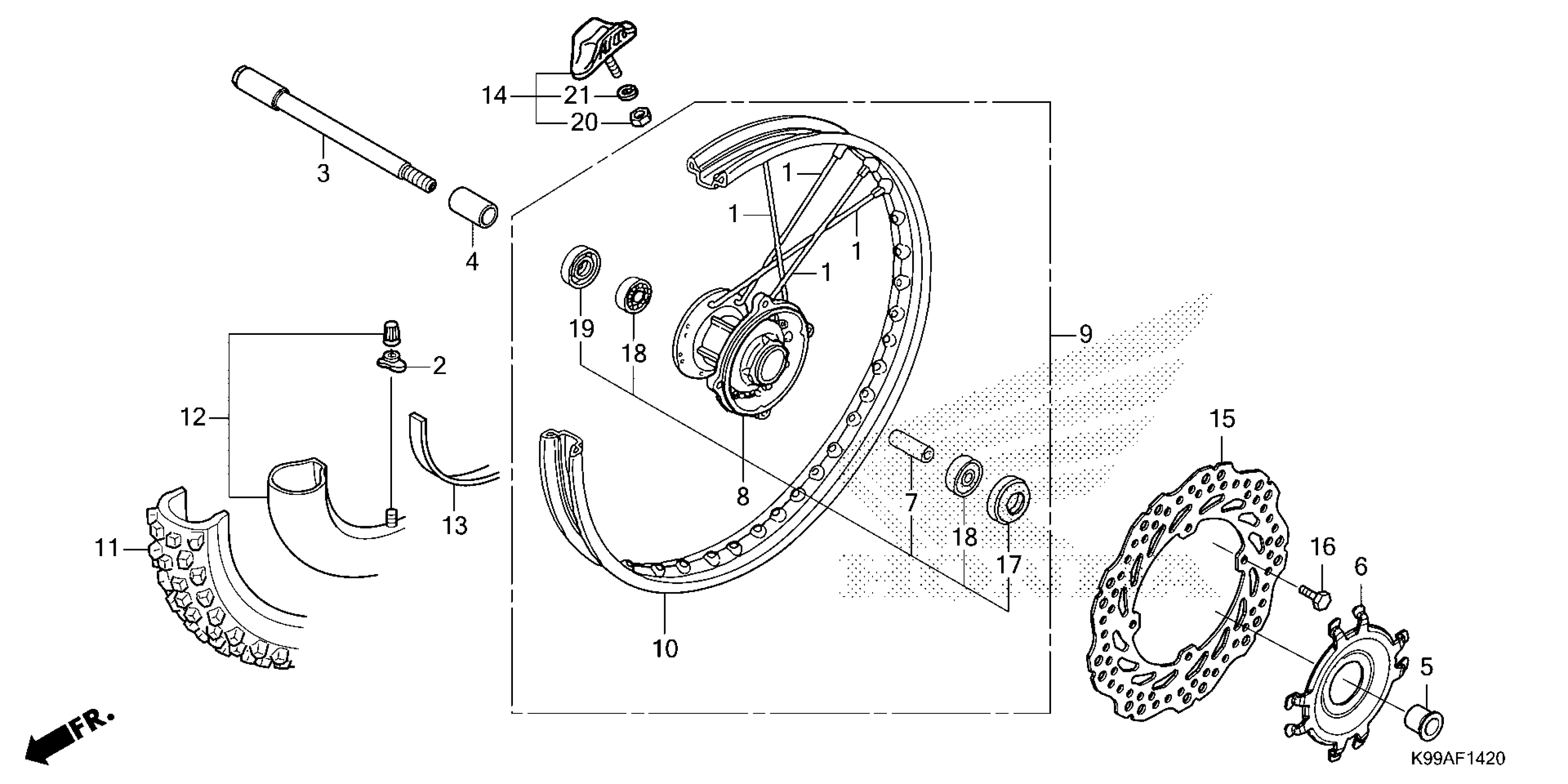

Honda CRF300FA (26) MOTORCYCLE, BRA, VIN# 9C2NE074-TR400001 TO 9C2NE074-TR499999 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET, FR.

06441-KPS-730

$8.81

1

SPOKE SET, FR.

06441-K99-A00

$4.07

2

CAP, VALVE

42714-KA3-710

$10.46

3

AXLE, FR. WHEEL

44301-K99-A00

$19.07

4

COLLAR, FR. WHEEL

44311-K99-A00

$8.25

5

COLLAR, FR. WHEEL SIDE

44311-K99-A70

Unavailable

6

COVER, FR. HUB

44610-K99-A00

$10.69

7

COLLAR, FR. WHEEL DISTANCE

44620-K99-A70

Unavailable

8

HUB SUB-ASSY., FR.

44635-K99-A71

$88.71

9

WHEEL SUB-ASSY., FR.

44650-K99-A71

$484.08

10

RIM, FR. WHEEL

44701-KPS-902

$263.93

11

TIRE, FR. (80/100-21 51R NHS) (PIRELLI)

44711-K99-A02

$104.93

12

TUBE, TIRE (MA-21) (PIRELLI)

44712-MAN-622

$48.84

13

FLAP, TIRE (1.40-21) (PIRELLI)

44713-KW8-901

$3.34

14

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

15

DISK, FR. BRAKE

45351-K99-A71

$96.22

16

BOLT, DISK (6X17)

90105-KAE-870

$2.92

17

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-KGA-K00.

90755-229-003

$5.05

17

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

18

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-731.

96140-62020-10

$10.85

18

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-732.

96140-62020-10

$10.85

18

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85

19

DUST SEAL (22X50X5)

91253-K99-A71

$5.48

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49
