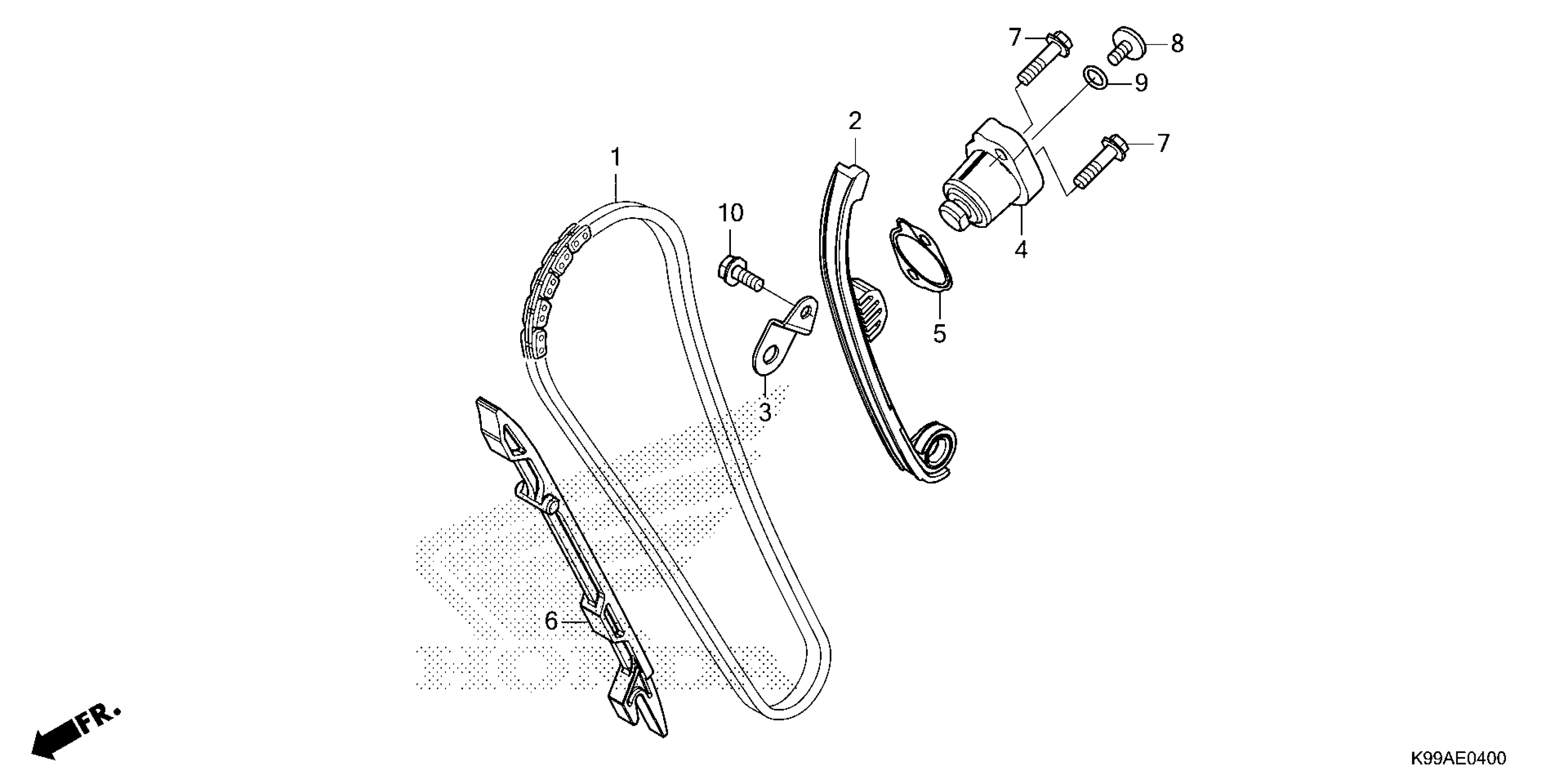

Honda CRF300FA (26) MOTORCYCLE, BRA, VIN# 9C2NE074-TR400001 TO 9C2NE074-TR499999 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (DAIDO) (DID SCZ-0407 SV-102LE) (NOT AVAILABLE)

14401-K2K-B01

Unavailable

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14510-K2K-D00

Unavailable

PLATE, TENSIONER SETTING

14515-K31-900

$1.49

LIFTER ASSY., TENSIONER (NOT AVAILABLE)

14520-K2K-B01

Unavailable

GASKET, TENSIONER LIFTER (NOT AVAILABLE)

14560-K2K-D01

Unavailable

GUIDE, CAM CHAIN

14611-K31-900

$17.41

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

SCREW, PAN (6X6)

90005-K15-900

$1.49

O-RING (1.5X9.5)

91306-KRM-840

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
