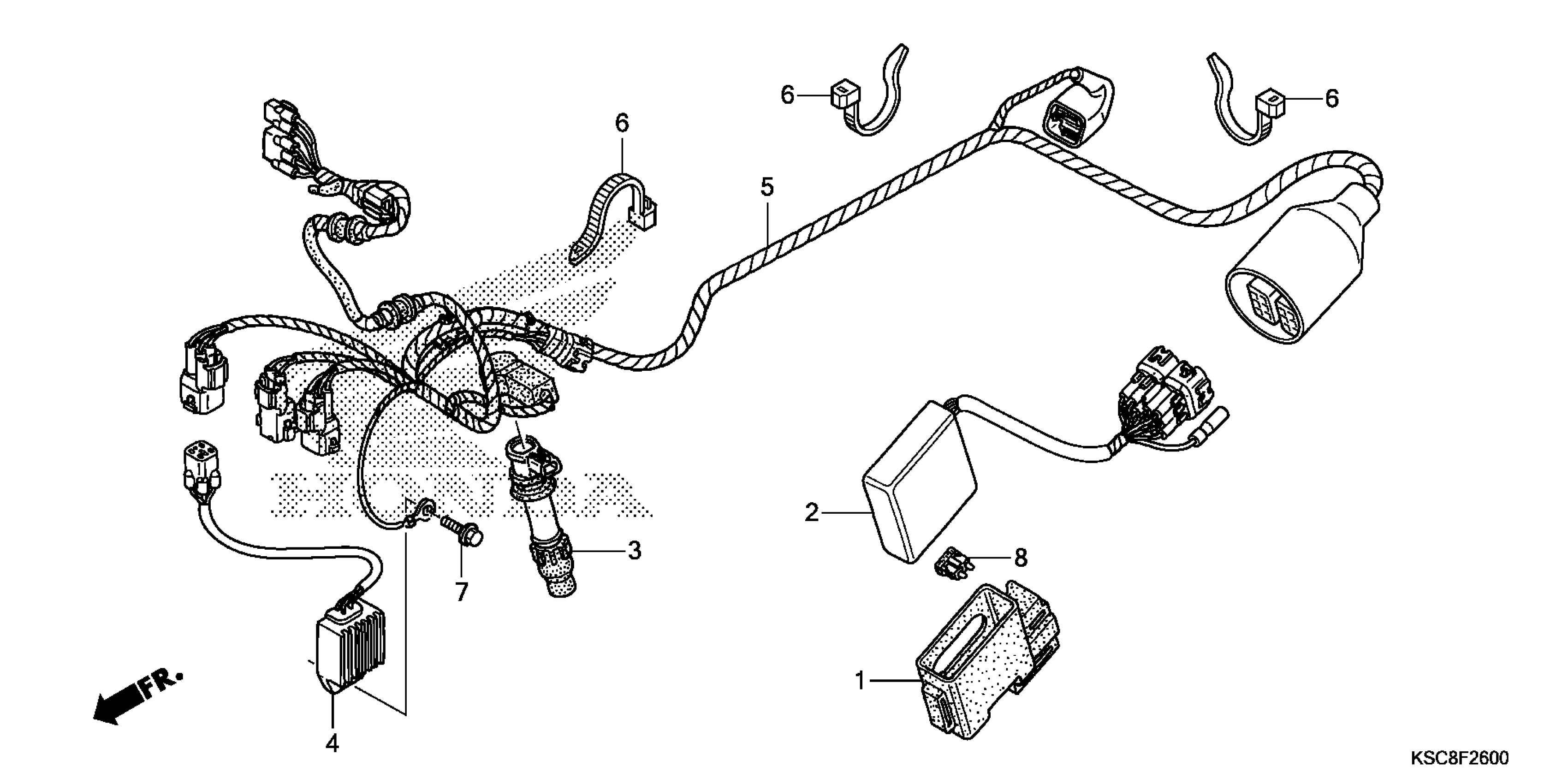

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KSC-000

$11.96

2

MODULE, IGNITION CONTROL (CDI)

30410-KSC-A21

$282.14

3

CAP ASSY., NOISE SUPPRESSOR

30700-KRN-671

$59.80

4

RECTIFIER, REGULATOR

31600-KSC-671

$198.67

5

WIRE HARNESS

32100-KSC-A20

$184.35

6

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

7

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

8

FUSE, BLADE (15A)

98200-31500

$1.19
