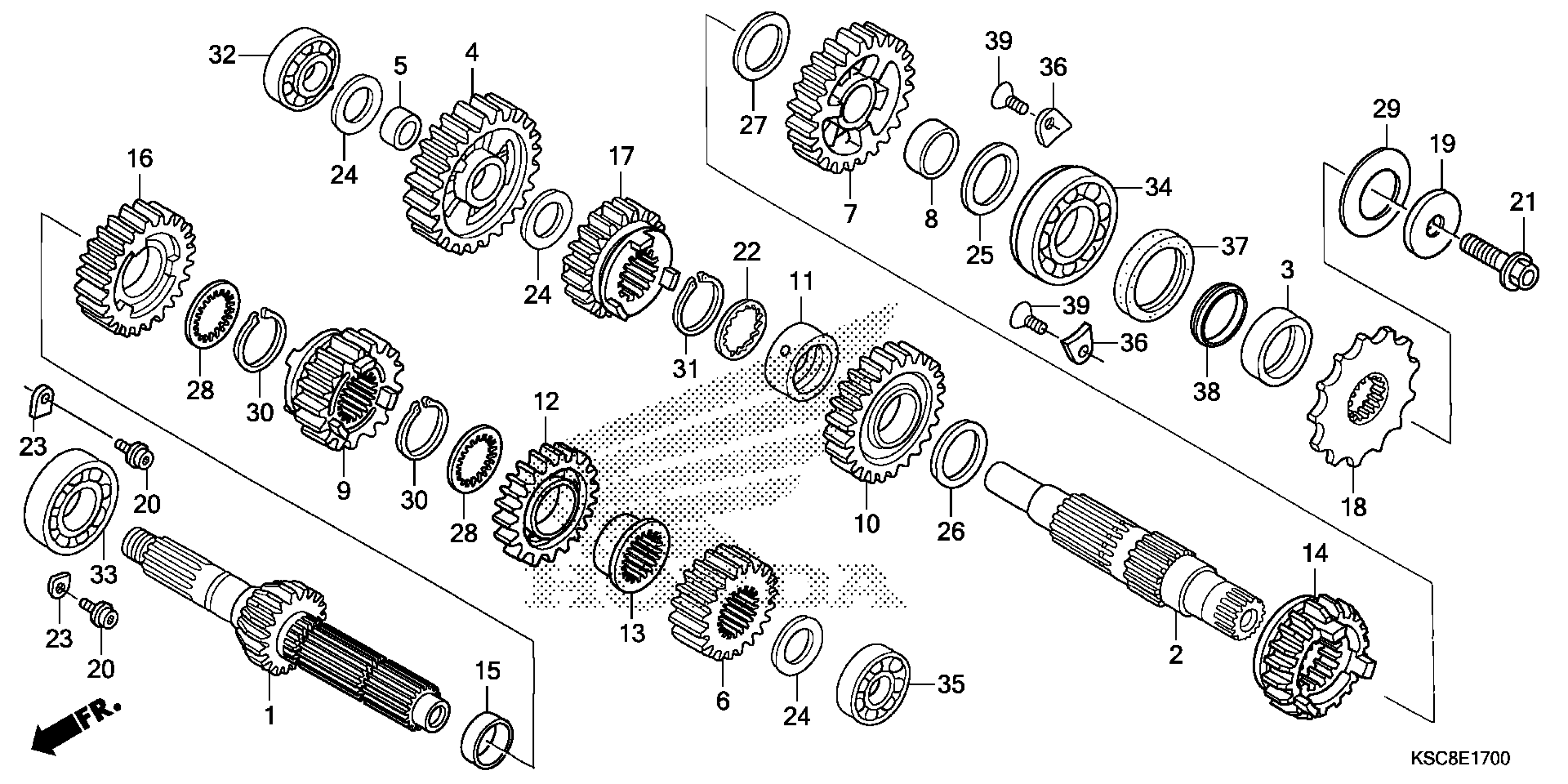

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 TRANSMISSION Diagram

MAINSHAFT (13T)

23210-KSC-A10

$166.64

COUNTERSHAFT

23221-KSC-A10

$165.10

COLLAR, COUNTERSHAFT

23225-KSC-670

$11.95

GEAR, COUNTERSHAFT LOW (31T)

23411-KSC-670

$103.56

COLLAR (17MM)

23413-KSC-670

$7.02

GEAR, MAINSHAFT SECOND (16T)

23421-KSC-670

$52.97

GEAR, COUNTERSHAFT SECOND (28T)

23431-KSC-670

$98.26

COLLAR (24MM)

23432-KSC-670

$6.93

GEAR, MAINSHAFT THIRD (21T)

23441-KSC-670

$107.51

GEAR, COUNTERSHAFT THIRD (28T)

23451-KSC-670

$98.26

COLLAR, COUNTERSHAFT THIRD GEAR

23452-KSC-670

$9.79

GEAR, MAINSHAFT FOURTH (24T)

23461-KSC-670

$95.44

COLLAR, MAINSHAFT FOURTH GEAR

23462-KSC-670

$14.56

GEAR, COUNTERSHAFT FOURTH (25T)

23471-KSC-670

$107.51

COLLAR (20MM)

23472-KZ4-000

$15.95

GEAR, MAINSHAFT FIFTH (27T)

23481-KSC-670

$98.26

GEAR, COUNTERSHAFT FIFTH (22T)

23491-KSC-670

$107.51

SPROCKET, DRIVE (14T)

23801-KSC-670

$42.67

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

BOLT, UBS (8X33)

90112-413-000

$3.85

WASHER, THRUST INVOLUTE (22X21X1)

90404-KW3-000

$3.87

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

WASHER (24X32X1)

90452-KSR-A00

$3.00

WASHER, THRUST (22X30X1)

90452-KZ4-000

$5.05

WASHER (22X32X1.5)

90453-KSR-A00

$2.54

WASHER, SPLINE (20MM)

90455-HM8-A40

$2.44

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

SET-RING (20MM)

90601-360-000

$9.19

SET-RING (22MM)

90602-360-000

$9.66

BEARING, RADIAL BALL (17X35X10)

91001-KZ4-J11

$16.18

BEARING, RADIAL BALL (22X47X14)

91004-KSC-671

$13.84

BEARING, RADIAL BALL (22X52X14)

91005-KRN-A01

$22.84

BEARING, RADIAL BALL (17X38X10)

91006-KRN-A01

$24.22

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

OIL SEAL (28X37X7)

91201-KSR-A01

$8.05

D-RING (22MM)

91301-KSR-A01

$2.95

SCREW, FLAT (6X10)

93600-06010-0H

$1.49
