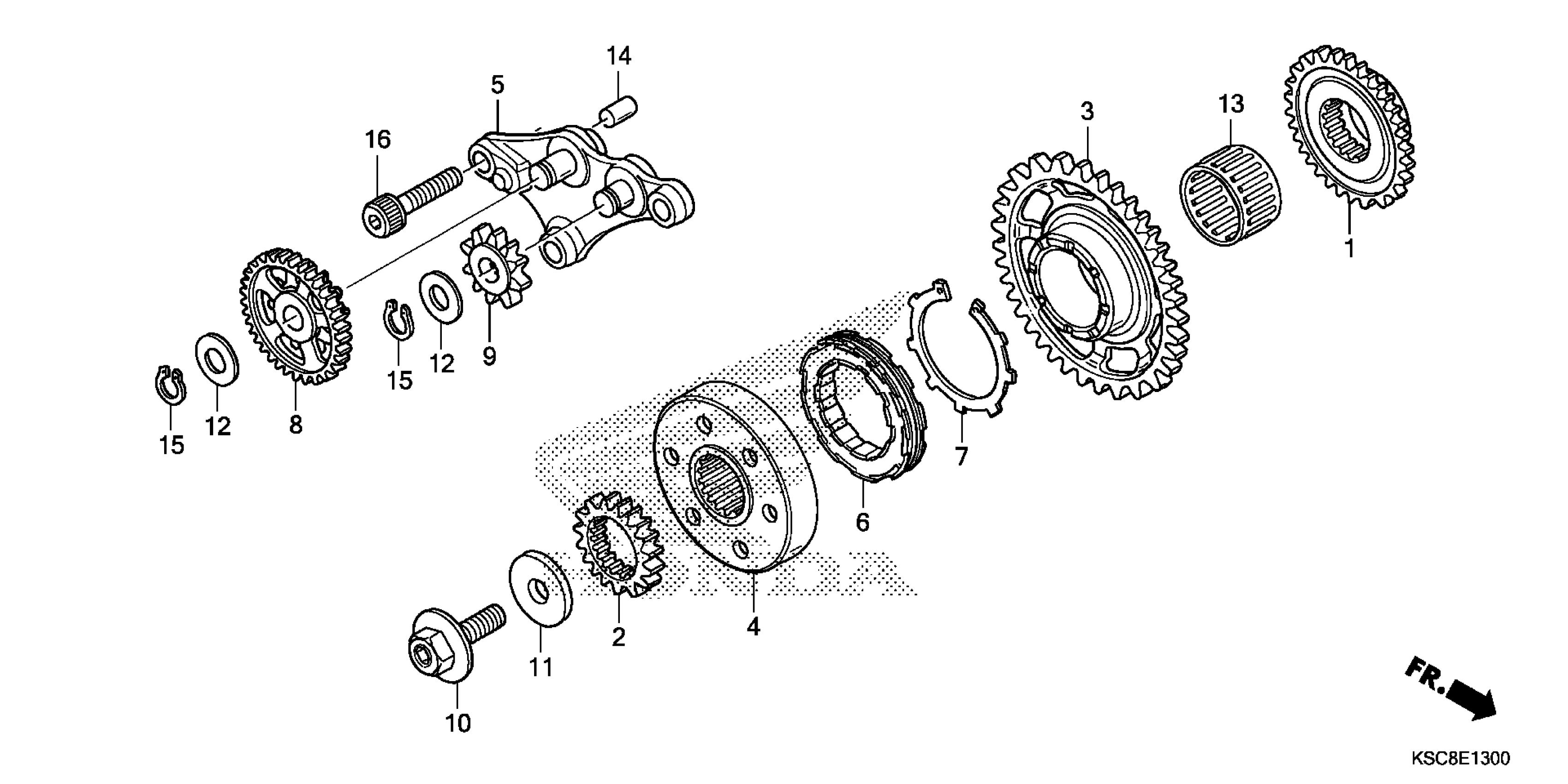

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 STARTING CLUTCH Diagram

GEAR, BALANCER DRIVE (32T)

13415-KRN-670

$72.72

GEAR, PRIMARY DRIVE (18T)

23121-KSC-670

$68.93

GEAR, STARTING DRIVEN (38T)

28110-KSC-670

$125.09

CLUTCH OUTER, STARTING

28115-KSC-670

$92.64

HOLDER, STARTER GEAR

28120-KSC-670

$155.48

CLUTCH, ONE-WAY

28125-MT7-004

$69.73

RING, FRICTION

28127-MS2-612

$4.94

GEAR, STARTING REDUCTION (53T/10T)

28131-KSC-670

$68.90

GEAR, STARTING IDLE (10T)

28141-KSC-670

$43.87

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.98

WASHER, PLAIN (12MM)

90402-KW6-960

$5.55

WASHER, THRUST (12MM)

90452-166-600

$2.39

BEARING, NEEDLE (30X35X20)

91025-KT7-003

$22.11

PIN, DOWEL (8X14)

94303-08140

$2.14

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, SOCKET (8X28)

96600-08028-00

$2.02
