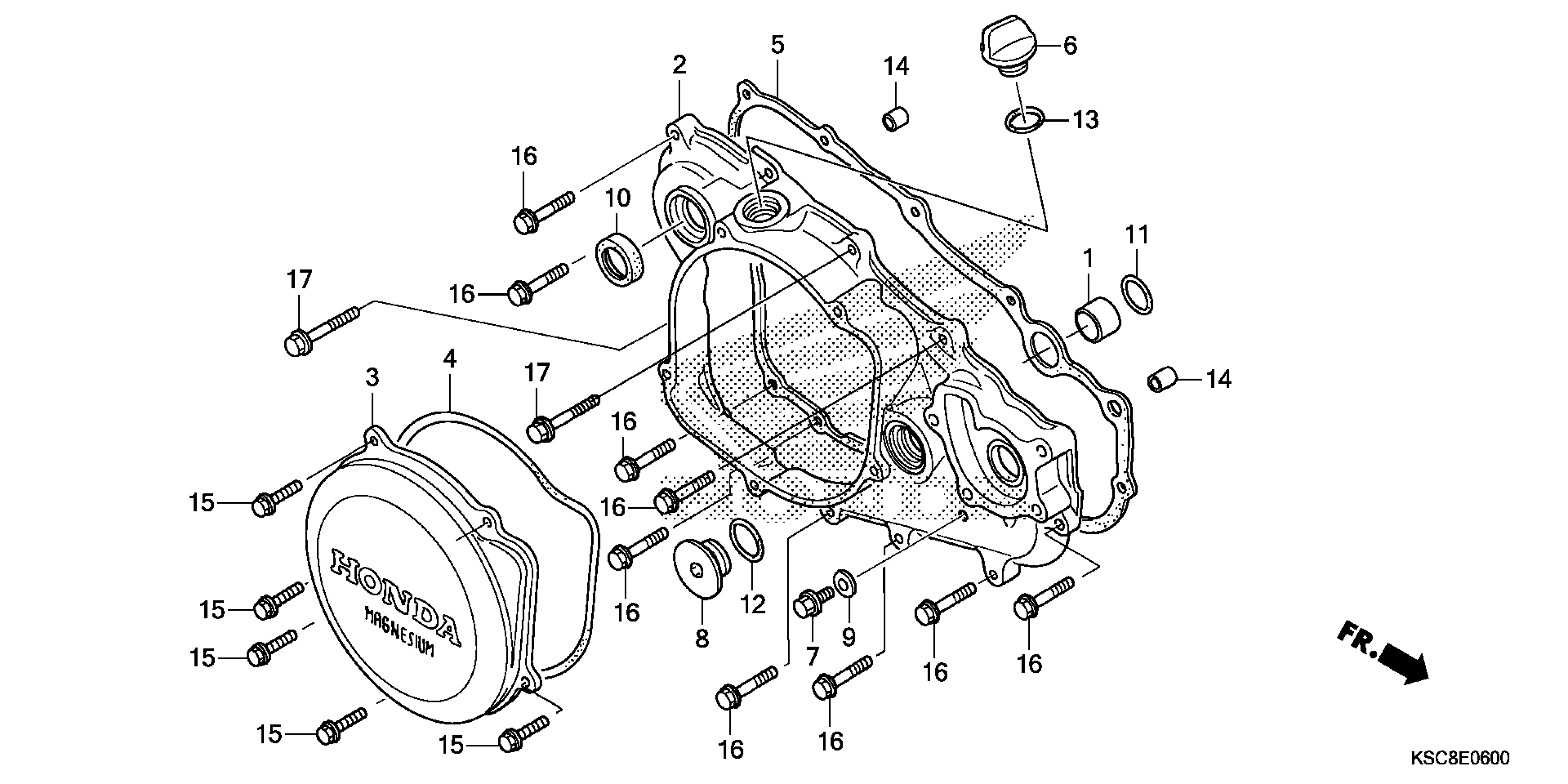

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 RIGHT CRANKCASE COVER Diagram

COLLAR, WATER PASS (16MM)

11102-KRN-670

$2.80

COVER, R. CRANKCASE

11331-KSC-670

$180.30

COVER, CLUTCH

11351-KSC-A30

$89.12

GASKET, CLUTCH COVER

11352-KRN-671

$8.42

GASKET, R. COVER This part replaces 11394-KRN-A01.

11394-KRN-A02

$19.33

CAP, OIL FILLER

15611-KA3-710

$12.13

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.88

CAP (30MM)

90087-KW3-000

$18.78

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

OIL SEAL (16.5X25X5) (NOK)

91205-KA3-712

$5.73

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.03

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

O-RING (11.9X2.2)

91370-461-000

$2.17

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
