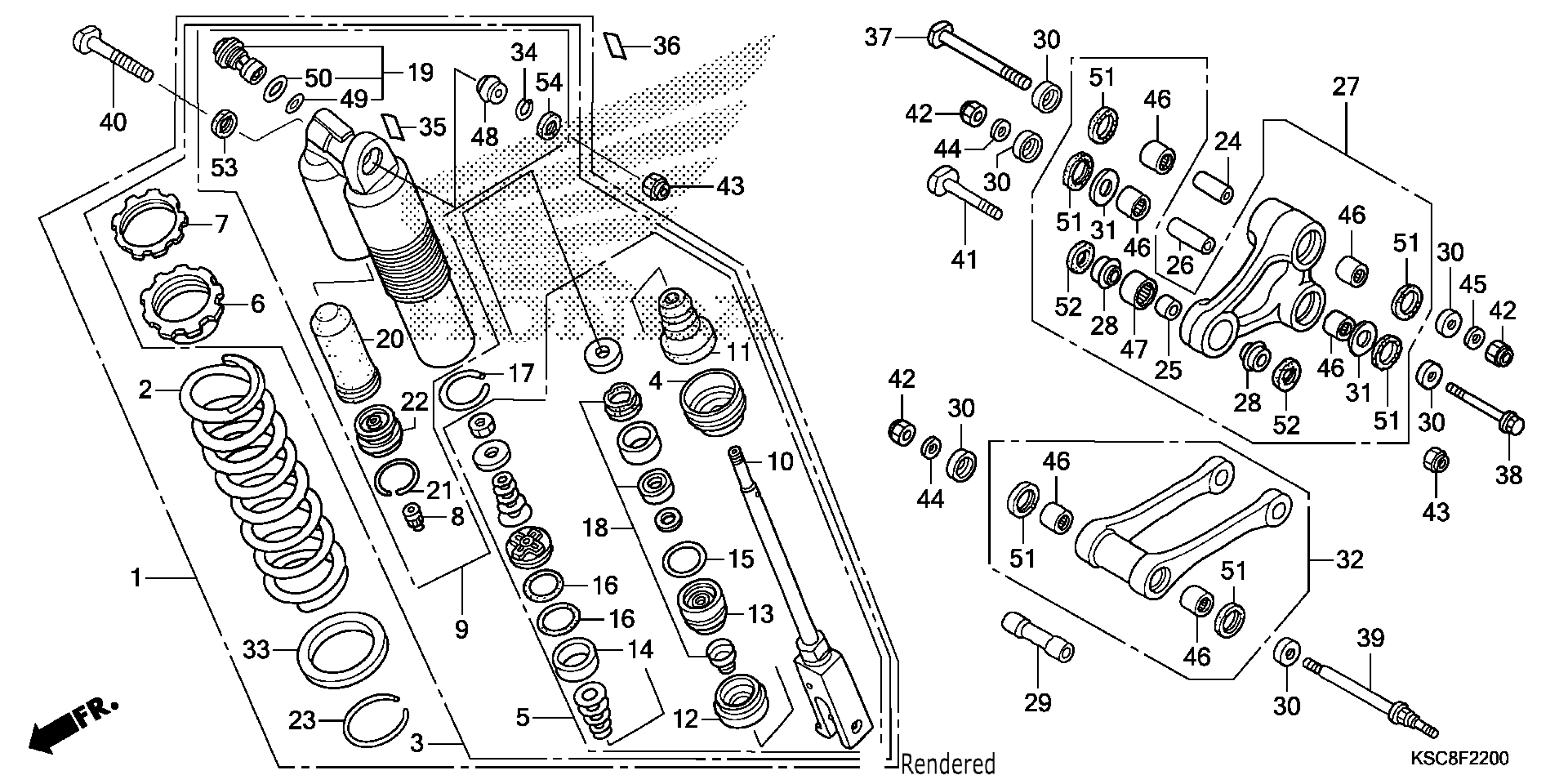

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (COO)

52400-KSC-305

$1,275.80

2

SPRING, RR. SHOCK ABSORBER (47.1N/MM,4.8KGF/MM) (SHOWA)

52401-KSC-A31

$183.30

2

SPRING, RR. SHOCK ABSORBER (49.0N/MM,5.0KGF/MM) (SHOWA) | (Optional).

52402-KSC-A31

$205.54

2

SPRING, RR. SHOCK ABSORBER (44.6N/MM,4.55KGF/MM) (SHOWA) | (Optional).

52403-KSC-A31

$205.54

3

DAMPER, RR. (COO)

52410-KSC-305

$994.39

4

STOPPER, SPRING SEAT

52419-KZ3-J21

$20.45

5

ROD, PISTON

52421-KSC-A01

$468.52

6

ADJUSTER, SPRING

52422-KZ3-J31

$31.23

7

NUT, ADJUSTER

52423-KZ3-J21

$14.32

8

CAP, AIR VALVE

52425-381-771

$4.70

9

CASE, DAMPER

52425-MEY-671

$587.83

10

ROD

52426-KSC-A01

$378.49

11

RUBBER, STOPPER

52427-KZ3-891

$17.07

12

PLATE, END

52428-KRN-711

$13.09

13

CASE, ROD GUIDE

52429-KZ3-J41

$18.17

14

RING, PISTON

52431-KZ3-J31

$14.33

15

O-RING (3.5X43.7)

52434-KZ3-J21

$3.39

16

O-RING (42.5X2.0)

52434-KZ3-J31

$3.21

17

RING, STOPPER

52435-KZ3-J21

$2.16

18

OIL SEAL SET

52436-MEN-671

$22.25

19

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MEN-671

$124.22

20

BLADDER

52451-KZ3-891

$16.88

21

RING, STOPPER

52452-KS7-831

$2.64

22

CAP, CHAMBER

52453-KRN-711

$25.17

23

RING, STOPPER

52455-KZ3-J21

$5.29

24

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.30

25

COLLAR D, CUSHION ARM

52464-KRN-710

$9.21

26

COLLAR B, CUSHION

52464-KZ4-J20

$6.97

27

ARM SUB-ASSY., CUSHION

52465-KSR-710

$303.55

28

COLLAR D, CUSHION ARM SIDE

52466-KRN-710

$3.62

29

COLLAR A, CONNECTING ROD

52473-KZ4-J20

$14.71

30

COLLAR, LINK SIDE

52475-KZ4-J20

$6.32

31

WASHER, THRUST

52476-KZ4-J20

$4.83

32

ROD SUB-ASSY., CUSHION CONNECTING

52479-KSC-A10

$225.32

33

SEAT, SPRING

52486-KZ3-J21

$26.09

34

RING, STOPPER

52487-KA4-831

$3.66

35

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.13

37

BOLT, LINK (12X82)

90130-MEN-840

$9.38

38

BOLT, LINK (12X92)

90131-MEN-840

$9.01

39

BOLT, LINK (12X120)

90131-MEY-000

$11.03

40

BOLT, CUSHION (UPPER) (10X53)

90152-MEB-750

$2.80

41

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$8.08

42

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$8.18

43

NUT, U (10MM)

90306-KZ4-711

$3.49

44

WASHER, PLAIN (12MM)

90501-KRN-710

$3.68

45

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.03

46

BEARING, NEEDLE (20X26X15)

91051-KSC-003

$7.89

47

BEARING, NEEDLE (19X26X13)

91074-KRN-711

$7.64

48

BEARING, SPHERICAL (10)

91074-MAC-741

$31.45

49

O-RING (21.5X1.5)

91256-KZ3-731

$2.58

50

O-RING (26.2X1.9)

91257-KZ3-891

$3.07

51

DUST SEAL (25X32X4)

91262-KZ3-731

$6.98

52

DUST SEAL (17.5X26X3)

91351-KRN-711

$2.67

53

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.54

54

DUST SEAL (16X26X3)

91351-MAC-671

$5.16
