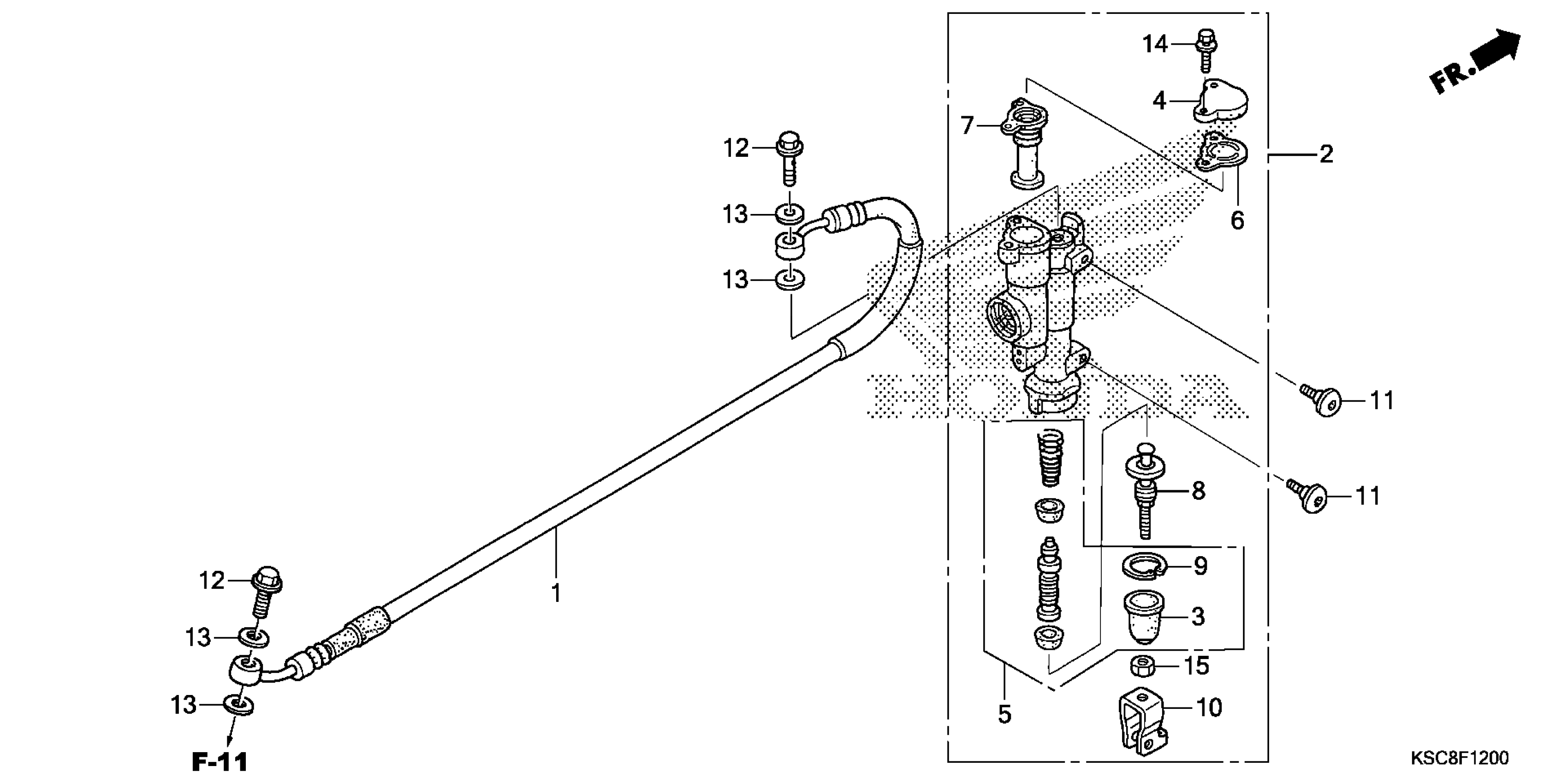

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-KZ4-J41

$50.15

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) This part replaces 43500-MEN-305.

43500-KZ4-J43

$297.75

BOOT

43504-MB2-006

$10.04

CAP, MASTER CYLINDER

43513-KZ4-J41

$4.74

PISTON SET, MASTER CYLINDER

43520-KZ4-J43

$47.35

PLATE, DIAPHRAGM

43521-KZ4-J41

$4.17

DIAPHRAGM

43522-KZ4-J41

$18.37

ROD, PUSH

43530-KZ4-J41

$22.98

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-KZ4-J41

$5.57

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT-WASHER (4X16)

93401-04016-00

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49
