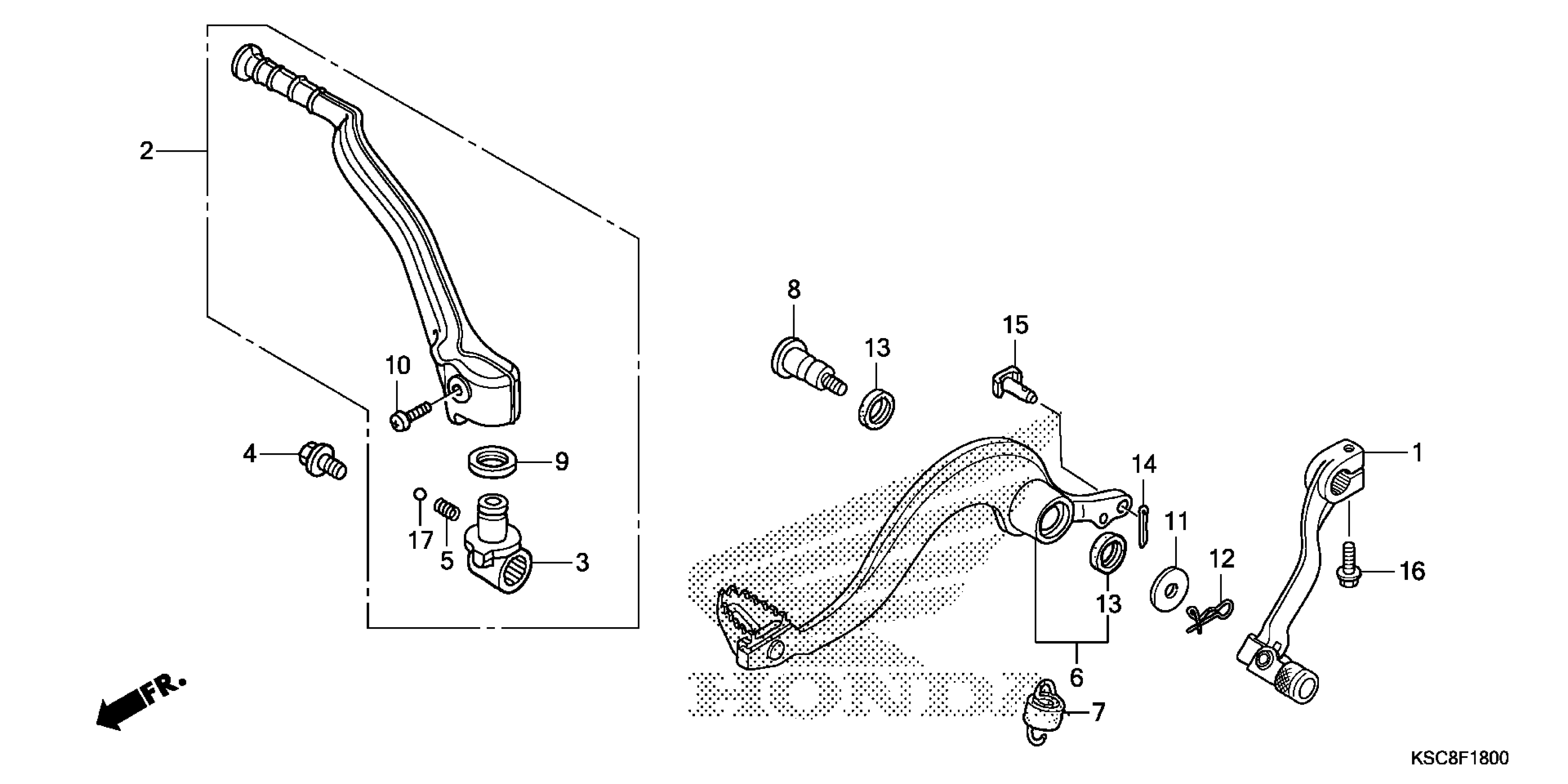

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 PEDAL + KICK STARTER ARM Diagram

PEDAL, CHANGE This part replaces 24700-KSC-305.

24700-KRN-000

$114.88

ARM ASSY., KICK STARTER (COO)

28300-KSC-305

$197.00

JOINT, KICK ARM

28302-KRN-000

$74.28

BOLT, KICK JOINT

28306-MEN-670

$5.59

SPRING, KICK STARTER

28333-KK0-000

$2.32

PEDAL, RR. BRAKE This part replaces 46510-KSC-305.

46510-KSC-000

$119.18

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

SHAFT, BRAKE PIVOT

46513-KSC-A10

$23.25

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

BOLT, KICK ARM

90103-KRN-000

$1.85

WASHER (26X10.5)

90512-KRN-730

$2.40

PIN, SNAP (8MM)

90705-PFF-300

$4.53

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

PIN, SPLIT (2.0X12)

94201-20120

$1.04

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
