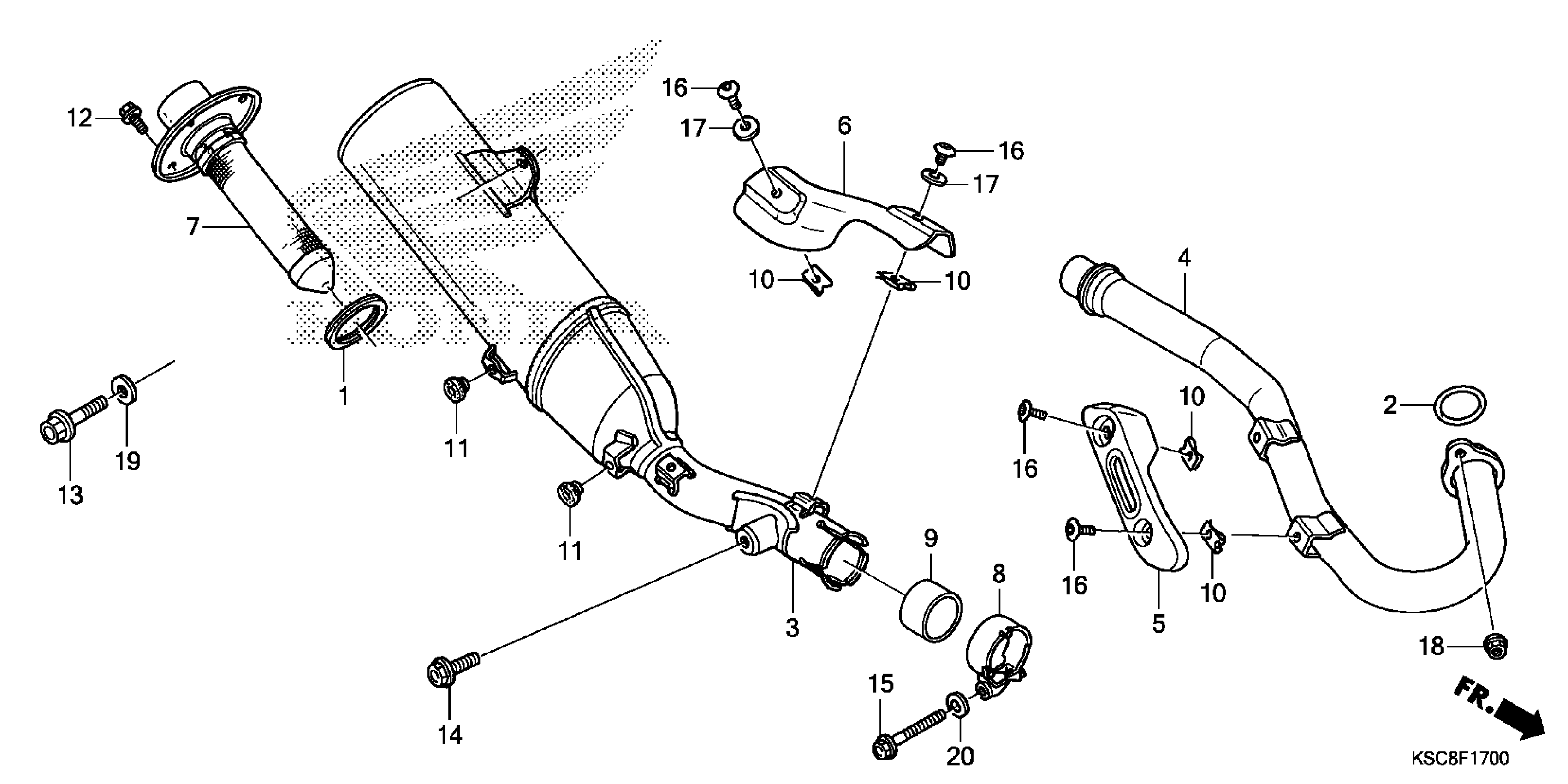

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 MUFFLER Diagram

GASKET, EX. MUFFLER

18291-KPS-900

$7.52

GASKET, EX. PIPE

18291-MM5-860

$5.17

MUFFLER (COO)

18310-KSC-305

$1,109.61

PIPE, EX.

18320-KSC-000

$291.72

PROTECTOR, EX. PIPE

18323-KSC-A30

$74.93

PROTECTOR, MUFFLER

18324-KRN-000

$84.10

ARRESTER, MUFFLER (COO)

18340-KSC-305

$295.28

BAND, R. MUFFLER

18373-KE8-000

$28.64

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$28.64

GASKET, MUFFLER

18392-MK4-000

$13.66

NUT, SPRING (6MM)

19508-KA3-710

$5.72

RUBBER, SIDE COVER

83512-KA4-700

$4.57

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.66

BOLT, FLANGE (8X18)

90123-KZ4-J40

$1.97

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.26

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

WASHER (6MM)

90406-KV3-780

$2.31

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49
