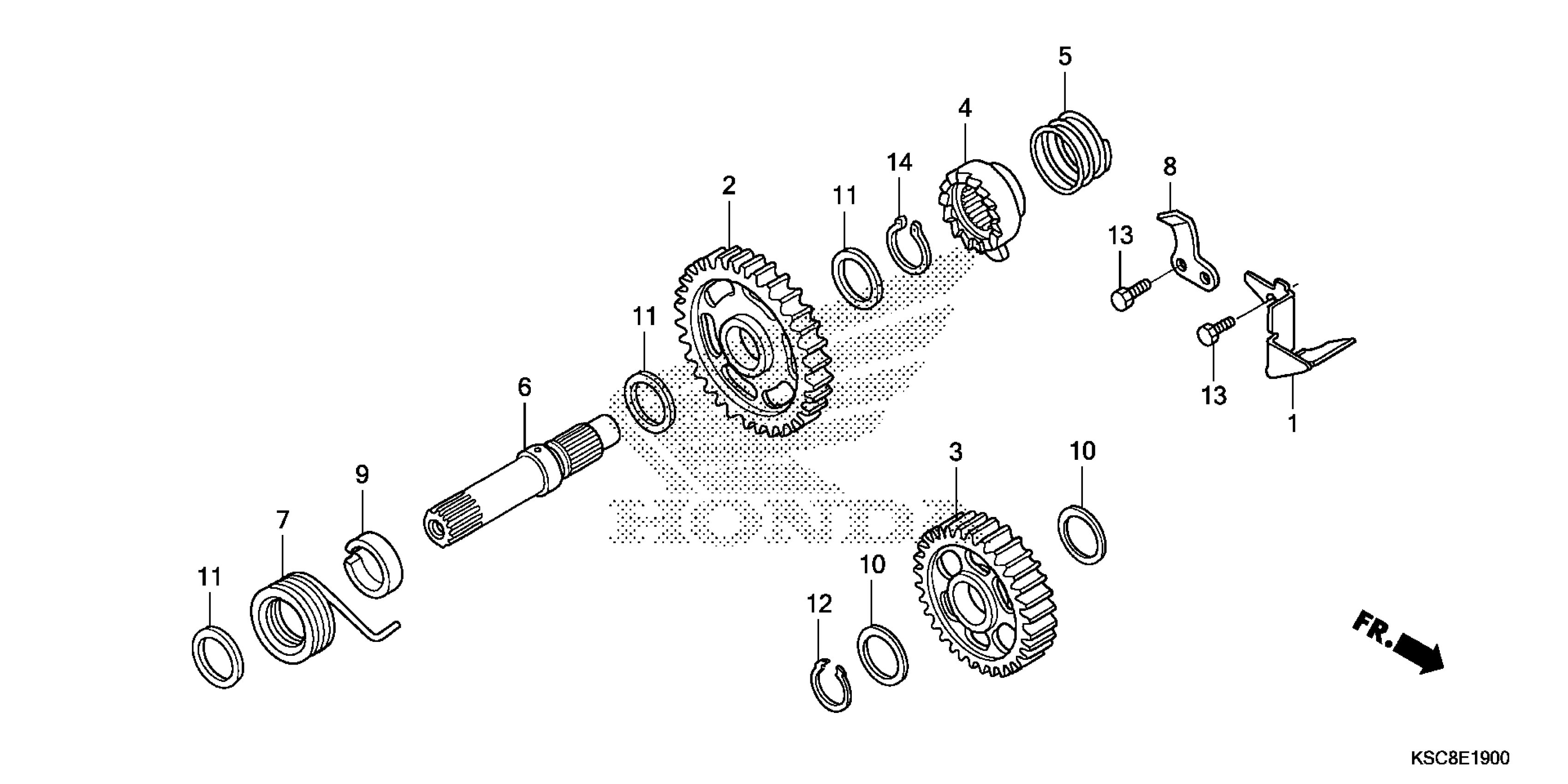

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 KICK STARTER SPINDLE Diagram

PLATE, OIL GUIDE

15201-KSC-670

Unavailable

PINION, KICK STARTER (32T)

28210-KSC-670

$90.78

GEAR, STARTER IDLE (30T)

28230-KRN-670

$59.59

RATCHET, STARTER

28241-KA3-710

$62.55

SPRING, RATCHET

28242-KA3-710

$3.59

SPINDLE, KICK STARTER

28251-KZ4-000

$94.72

SPRING, STARTER RETURN

28261-KA3-710

$11.88

PLATE, RATCHET SLIDER

28262-KS6-701

$11.65

COLLAR, KICK SPINDLE

28282-KZ4-B00

$6.08

WASHER, THRUST (17MM)

90452-178-000

$3.89

WASHER (16.8X24)

90501-444-000

$3.89

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

BOLT, HEX. (6X16)

93301-06016-0A

$1.33

CIRCLIP (OUTER) (16MM)

94510-16000

$0.71
