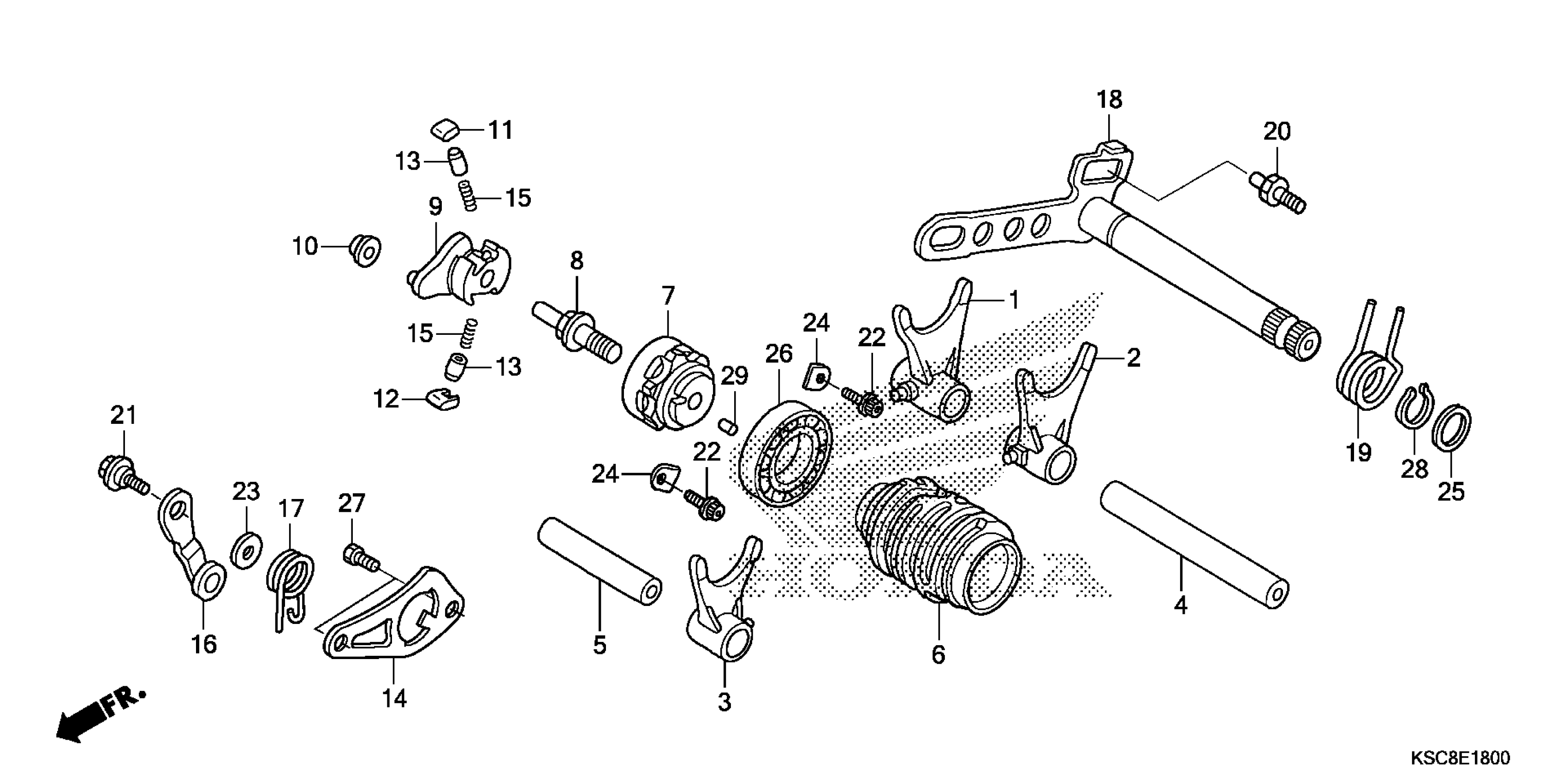

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-KSC-670

$54.24

2

FORK, L. GEARSHIFT

24221-KSC-670

$54.24

3

FORK, CENTER GEARSHIFT

24231-KSC-670

$54.24

4

SHAFT A, SHIFT FORK

24241-KSC-670

$26.84

5

SHAFT B, SHIFT FORK

24242-KSC-670

$24.32

6

DRUM, GEARSHIFT

24311-KRN-A00

$71.07

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-HA0-000

$11.56

9

SHIFTER, DRUM

24321-KZ4-620

$53.88

10

COLLAR, SHIFTER

24322-MM4-000

$4.88

11

PAWL A, RATCHET

24324-KA3-711

$12.13

12

PAWL B, RATCHET

24325-KA3-711

$12.13

13

PLUNGER, PAWL

24326-KBH-901

$5.56

14

PLATE, GUIDE

24328-KRN-670

$12.22

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

16

STOPPER, DRUM

24430-KA3-740

$20.10

17

SPRING, DRUM STOPPER

24435-KZ4-690

$4.53

18

SPINDLE, GEARSHIFT

24610-KRN-730

$65.94

19

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$3.81

20

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.84

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.19

23

WASHER (6.1MM)

90435-HB3-000

$2.80

24

PLATE, BEARING HOLDER

90441-KRM-840

$0.56

25

WASHER (14MM)

90451-155-000

$3.62

26

BEARING, RADIAL BALL (6905U)

91004-KY4-900

$21.00

27

BOLT, HEX. (6X16)

93301-06016-0A

$1.47

28

CIRCLIP, OUTER (14MM)

94510-14000

Unavailable

29

ROLLER (4X8)

96220-40080

Unavailable
