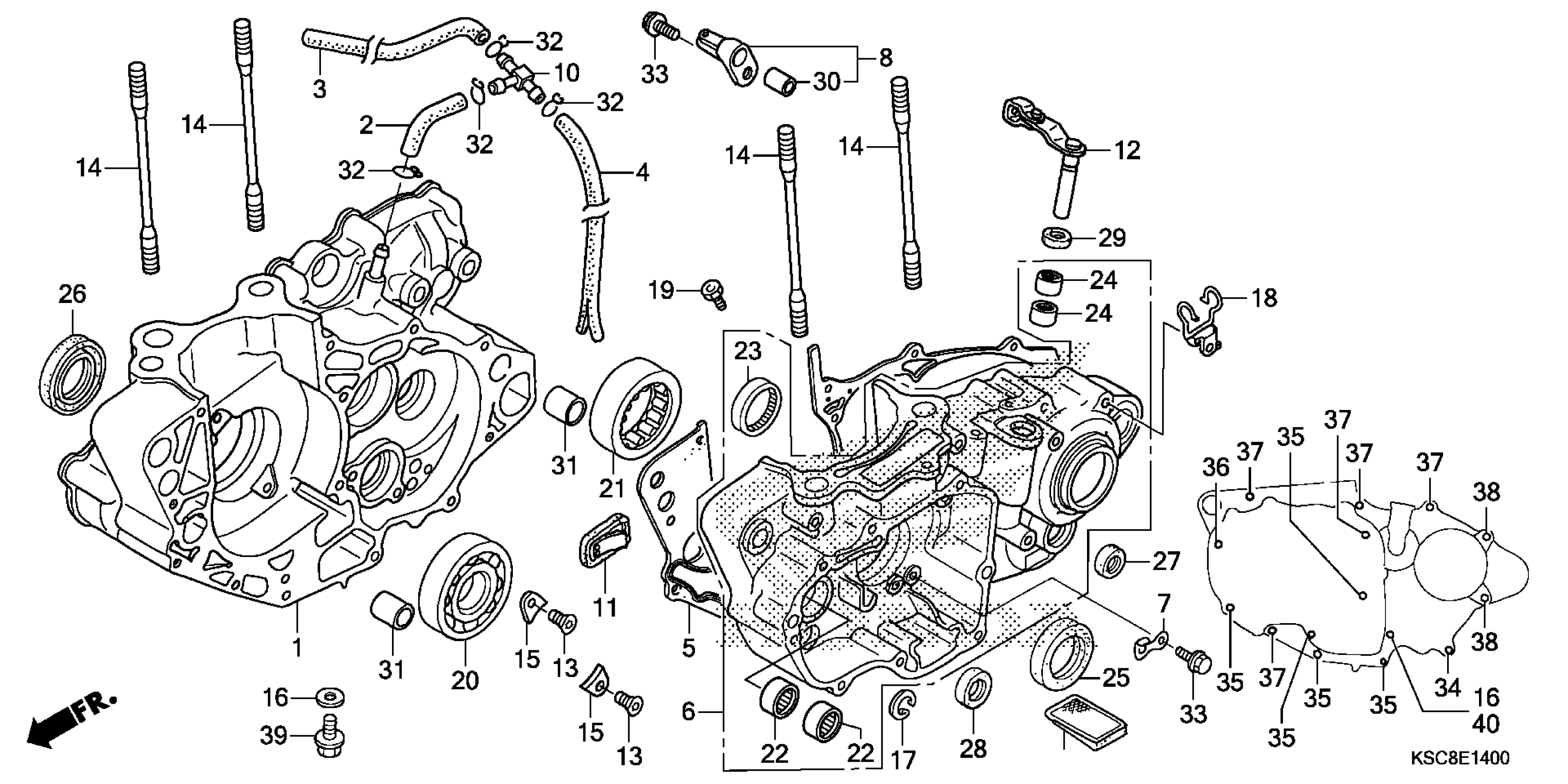

Description

Price

1

CRANKCASE, R.

11100-KSC-A20

$349.82

2

TUBE A, BREATHER

11105-KSC-670

$3.08

3

TUBE B, BREATHER

11107-KSC-670

$10.13

4

TUBE C, BREATHER

11108-KSC-670

$8.84

5

GASKET, CRANKCASE This part replaces 11191-KRN-A11.

11191-KRN-A12

$21.05

6

CRANKCASE, L.

11200-KSC-A20

$446.20

7

PLATE, CAM CHAIN GUIDE

11206-KRN-670

$3.25

8

JET, PISTON (#80)

11210-KRN-730

$20.67

9

SCREEN, OIL FILTER

15421-KK0-000

$7.70

10

JOINT, THREE WAY

16961-MCT-010

$11.72

11

VALVE, REED

18601-MBW-003

$17.16

12

LEVER, CLUTCH LIFTER

22810-KSC-A10

$54.08

13

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.80

14

BOLT, STUD (10X135)

90031-KRN-670

$5.49

15

PLATE, BEARING HOLDER

90441-KRN-670

$2.92

16

WASHER, SEALING (8MM)

90474-333-000

$3.30

17

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.40

18

GUIDE, TUBE

90610-MEB-670

$12.85

19

ORIFICE (#170)

90901-KSC-A20

$10.21

20

BEARING, RADIAL BALL (30X72X16)

91001-KRN-671

$22.89

21

BEARING, SPECIAL ROLLER

91002-KRN-A11

$48.13

22

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$13.32

23

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

23

BEARING, SHELL (33X38X8)

91022-KA4-741

$16.82

24

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

24

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

25

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$13.13

26

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$14.53

27

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

28

OIL SEAL (20X33X5) (ARAI)

91203-MEB-671

$4.89

29

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.45

30

PIN, DOWEL (8X10)

94301-08100

$2.25

31

PIN, DOWEL (14X20)

94301-14200

$2.28

32

CLIP, TUBE (B10)

95002-02100

$1.90

33

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

34

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

35

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

36

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

37

BOLT, FLANGE (6X70)

96001-06070-00
