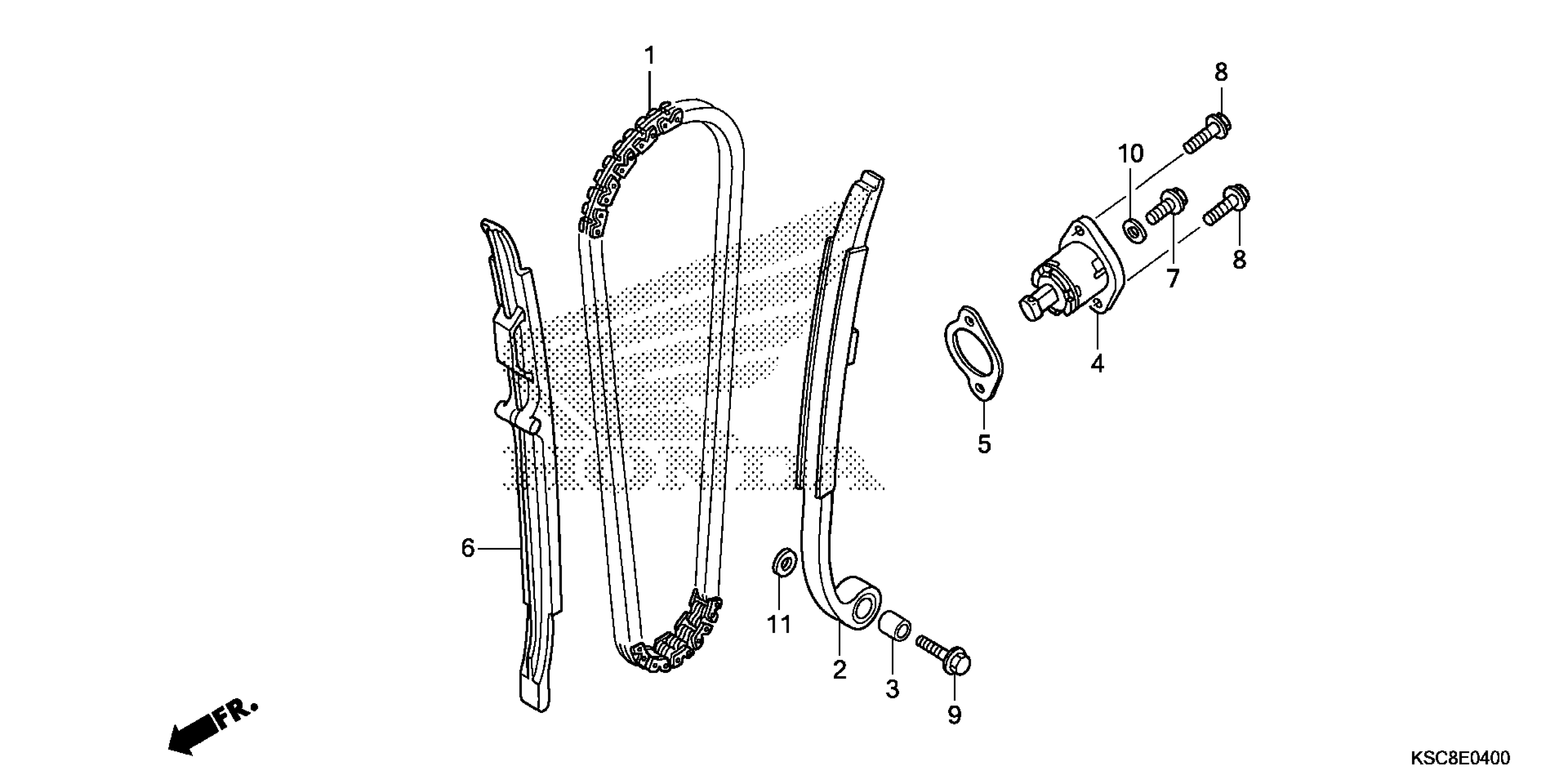

Honda CRF250XA (17) CRF250X, JPN, VIN# JH2ME110-HK100001 CAM CHAIN + TENSIONER Diagram

#

Description

Price

1

CHAIN, CAM (104L) (BORG WARNER)

14401-KRN-671

$67.34

2

TENSIONER, CAM CHAIN

14510-KRN-670

$61.71

3

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

4

LIFTER ASSY., TENSIONER

14520-KRN-671

$81.38

5

GASKET, TENSIONER LIFTER

14560-MEN-671

$6.01

6

GUIDE, CAM CHAIN

14620-KRN-670

$27.96

7

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

8

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

9

BOLT, FLANGE (6X25)

90088-MEB-670

$1.49

10

WASHER, SEALING (6MM)

90442-397-000

$2.28

11

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.87

11

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

11

WASHER (18MM)

90581-831-650

$1.87
