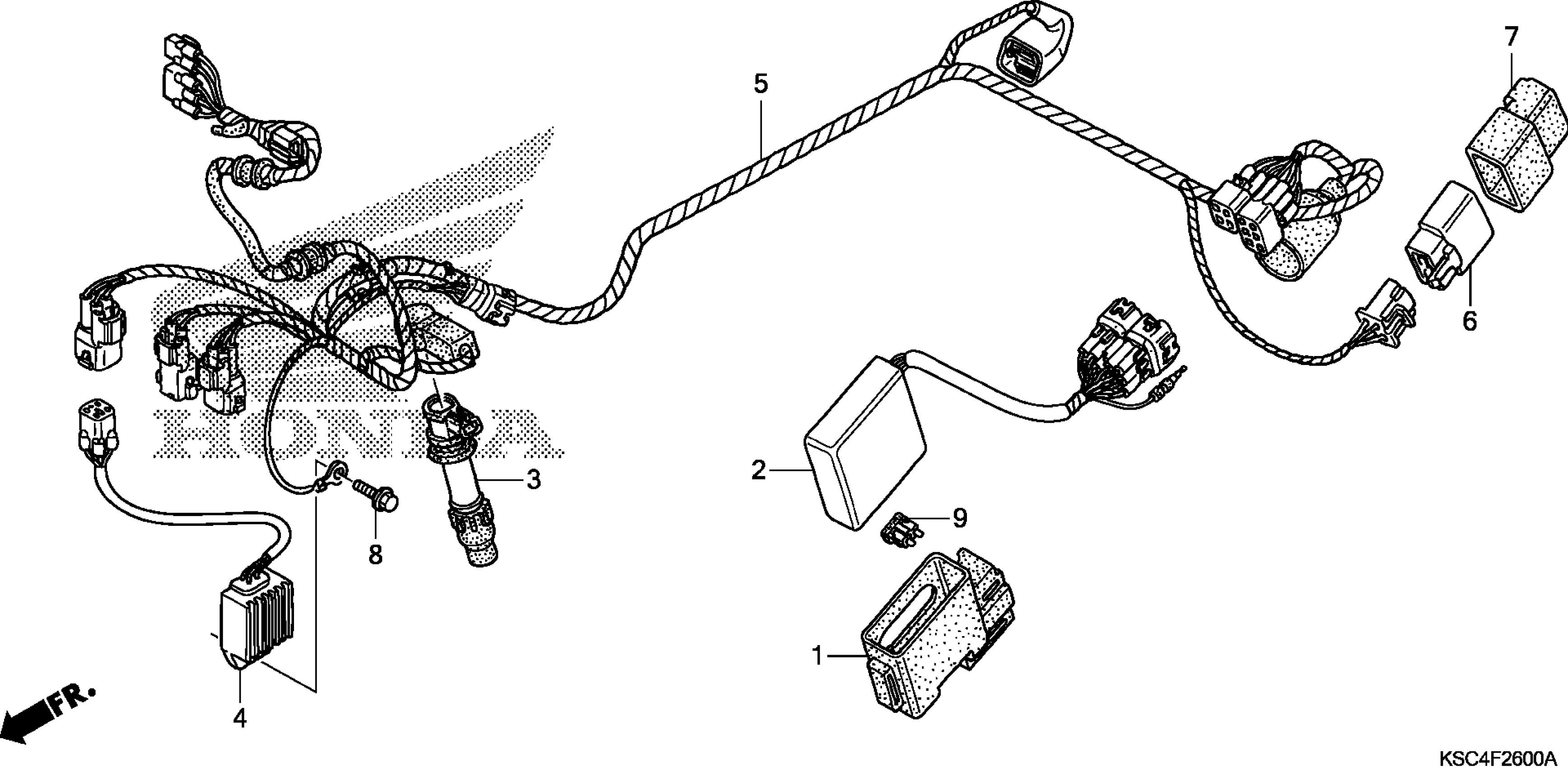

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KSC-000

$12.13

2

MODULE, IGNITION CONTROL (CDI)

30410-KSC-A21

$286.29

3

CAP ASSY., NOISE SUPPRESSOR

30700-KRN-671

$61.15

4

RECTIFIER, REGULATOR

31600-KSC-671

$201.59

5

WIRE HARNESS

32100-KSC-A20

$187.06

8

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

9

FUSE, BLADE (15A)

98200-31500

$1.21
