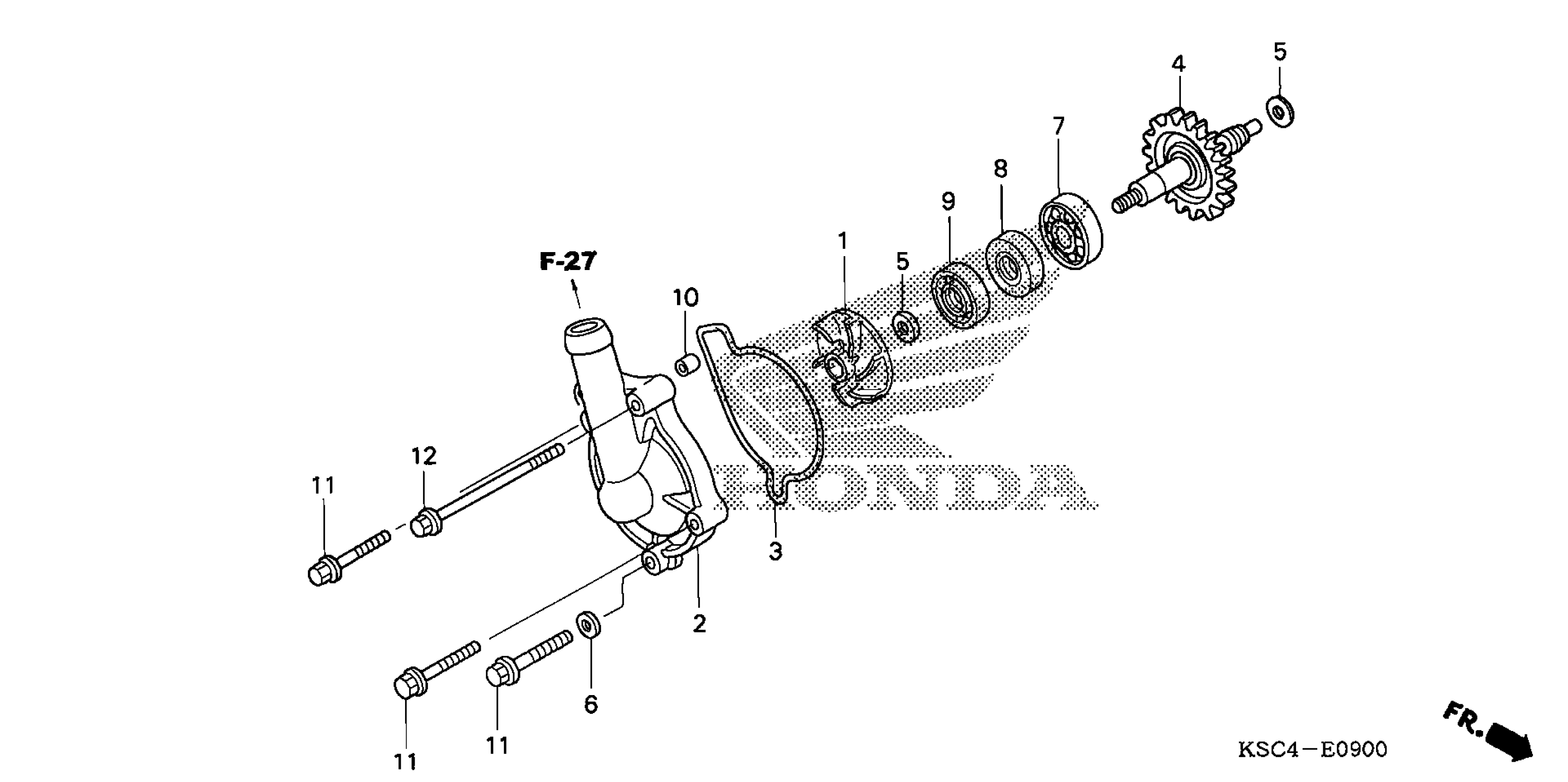

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KRN-A00

$44.53

COVER, WATER PUMP

19221-KRN-A00

$86.83

GASKET, WATER PUMP

19226-KRN-670

$4.89

GEAR, WATER PUMP (22T)

19240-KSC-670

$91.97

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$15.33

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

OIL SEAL (12X22X5)

91201-965-000

$3.77

SEAL, WATER PUMP

91211-KSE-671

$4.36

PIN, DOWEL (8X10)

94301-08100

$2.04

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X85)

96001-06085-00

$2.64
