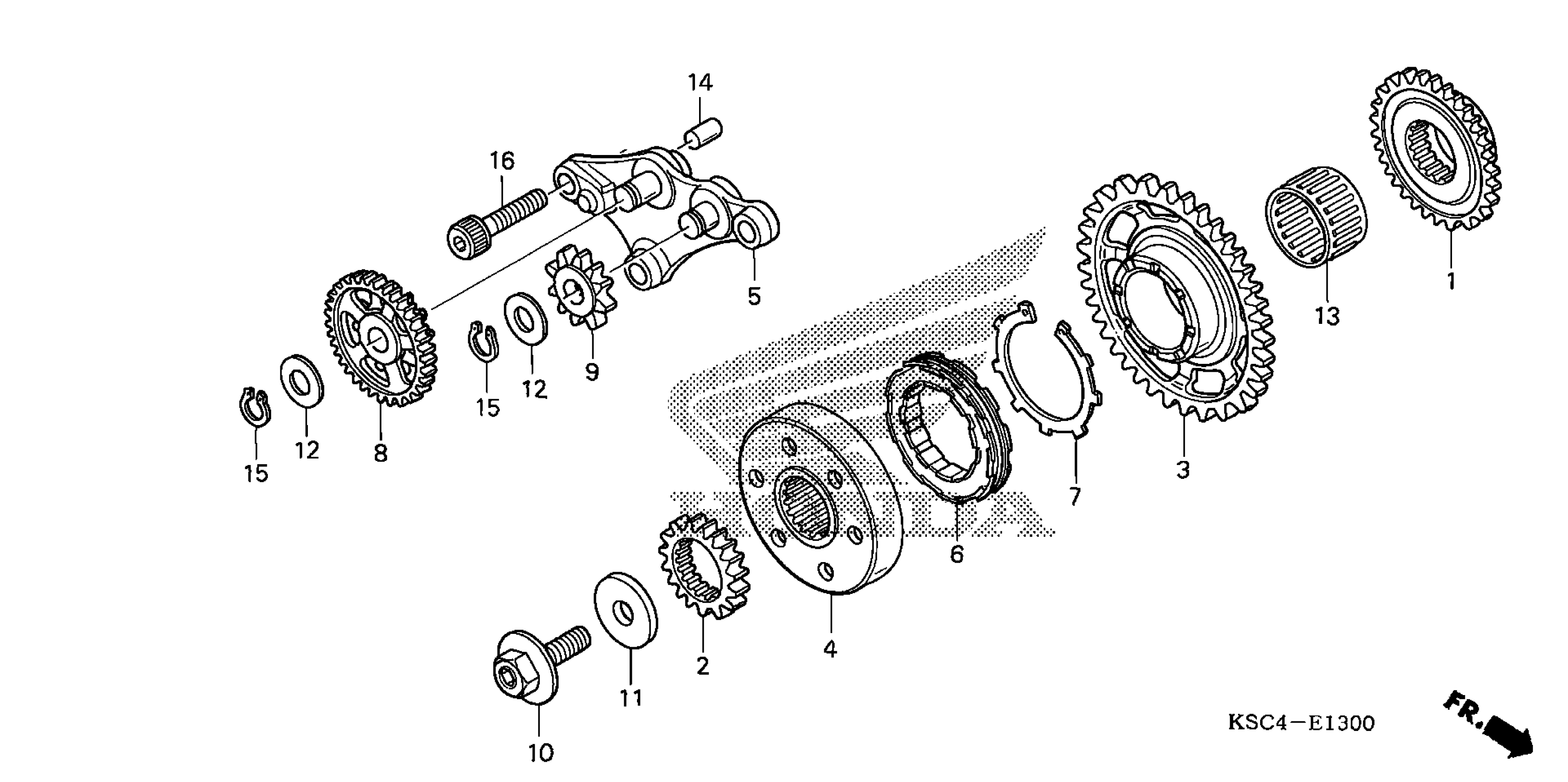

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 STARTING CLUTCH Diagram

GEAR, BALANCER DRIVE (32T)

13415-KRN-670

$67.21

GEAR, PRIMARY DRIVE (18T)

23121-KSC-670

$63.69

GEAR, STARTING DRIVEN (38T)

28110-KSC-670

$114.83

CLUTCH OUTER, STARTING

28115-KSC-670

$85.60

HOLDER, STARTER GEAR

28120-KSC-670

$143.66

CLUTCH, ONE-WAY

28125-MT7-004

$62.15

RING, FRICTION

28127-MS2-612

$4.71

GEAR, STARTING REDUCTION (53T/10T)

28131-KSC-670

$63.66

GEAR, STARTING IDLE (10T)

28141-KSC-670

$40.53

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.71

WASHER, PLAIN (12MM)

90402-KW6-960

$5.30

WASHER, THRUST (12MM)

90452-166-600

$2.21

BEARING, NEEDLE (30X35X20)

91025-KT7-003

$20.44

PIN, DOWEL (8X14)

94303-08140

$2.62

CIRCLIP, OUTER (12MM)

94510-12000

$1.68

BOLT, SOCKET (8X28)

96600-08028-00

$1.87
