Description

Price

1

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.53

2

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.53

3

SPROCKET, FINAL DRIVEN (54T) | (Optional).

41201-KSR-J00

$107.35

3

SPROCKET, FINAL DRIVEN (52T) | (Optional).

41203-KZ4-J30

$109.14

3

SPROCKET, FINAL DRIVEN (53T)

41204-KZ4-J30

$127.14

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$17.31

5

AXLE, RR. WHEEL

42301-KZ4-J40

$46.80

6

COLLAR, L. RR. AXLE

42305-KZ4-J40

$15.23

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$17.18

8

COLLAR, RR. WHEEL SIDE

42311-KZ4-J40

$19.04

9

COLLAR, RR. WHEEL DISTANCE

42620-KZ4-J20

$24.90

10

HUB SUB-ASSY., RR.

42635-KRN-710

$296.42

11

WHEEL SUB-ASSY., RR.

42650-KSC-A20

$631.36

12

RIM, RR. WHEEL (18X2.15)

42701-KSC-A21

$234.46

13

TIRE, RR. (100/100-18) (59M D756) (DUNLOP)

42711-KSC-004

Unavailable

14

CAP, VALVE

42714-KA3-710

$9.39

15

STOPPER, BEAD (2.15)

42715-MA0-770

$34.02

16

CAP, RIM HOLE

42717-329-000

$3.90

18

TUBE, TIRE (100/100-19) (DUNLOP)

44712-300-004

$59.58

19

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.50

20

BOLT, DISK (6X19)

90105-MAC-680

$4.65

21

SCREW, FLAT (8X31)

90125-KA4-000

$2.87

22

NUT, U (6MM)

90301-473-003

$3.79

23

NUT, U (22MM)

90305-KZ4-J20

$8.04

24

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.06

25

WASHER (22X35X2)

90401-KZ4-J20

$2.62

26

WASHER (8MM)

90465-MC4-000

$2.29

27

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$16.42

28

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.59

29

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.60

30

NUT, HEX. (8MM)

94001-08000-0S

$1.19

31

WASHER, SPRING (8MM)

94111-08000

$0.90

32

DISK, RR. BRAKE

43351-MEN-A10

$182.90

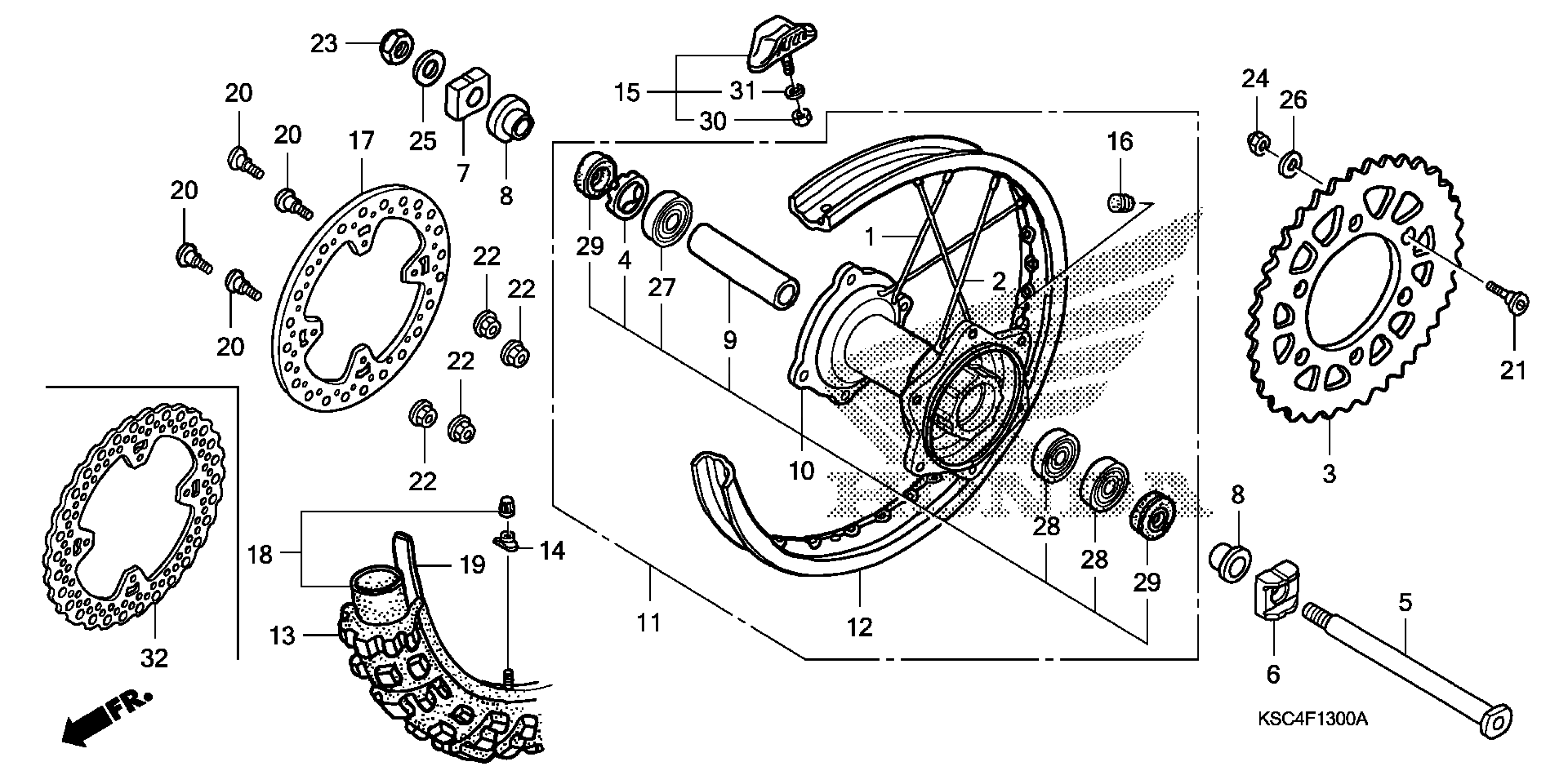

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 REAR WHEEL Diagram
