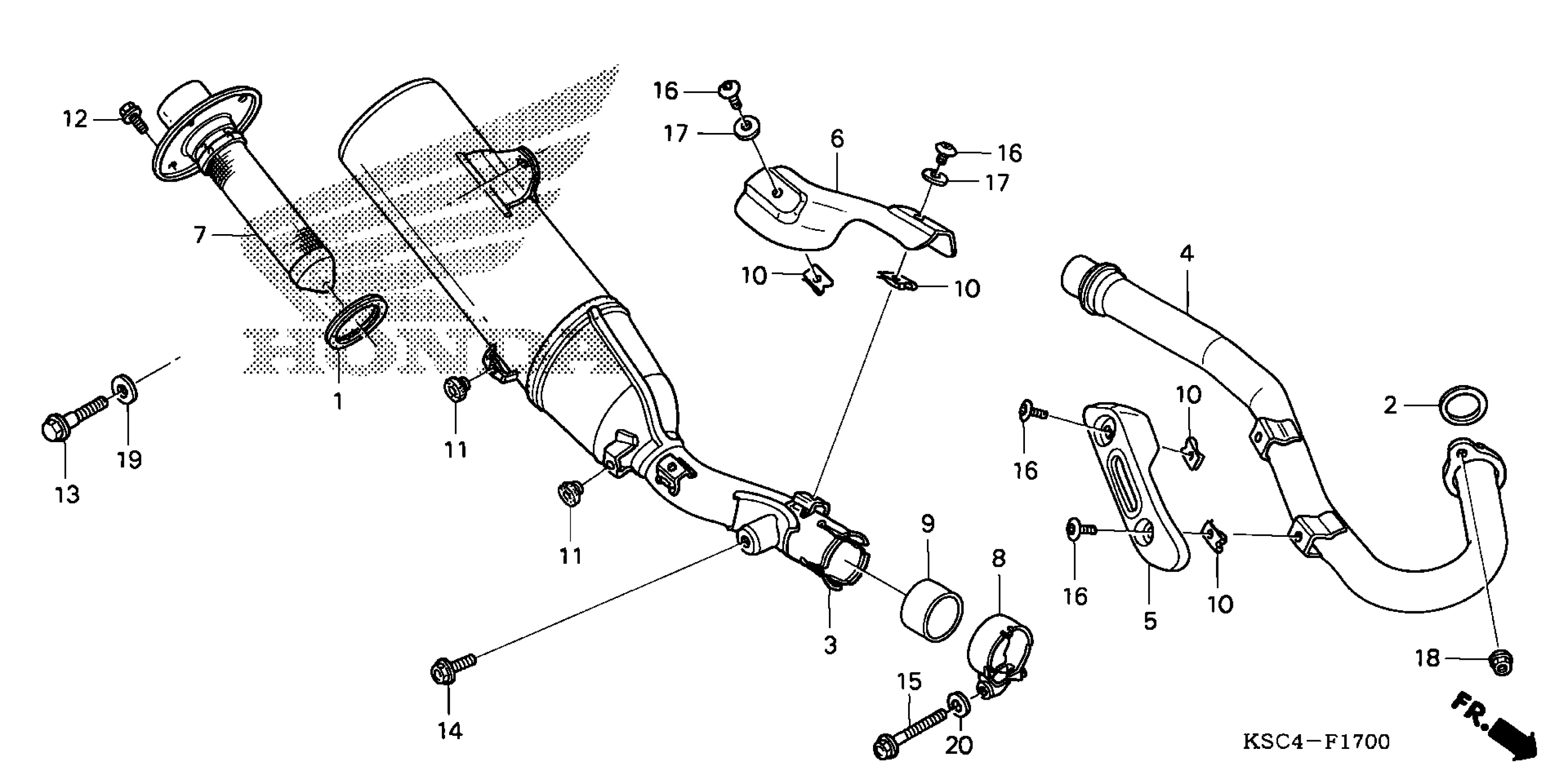

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. MUFFLER

18291-KPS-900

$6.86

2

GASKET, EX. PIPE

18291-MM5-860

$4.81

3

MUFFLER (COO) This part replaces 18310-KSC-A20.

18310-KSC-305

$1,010.41

3

MUFFLER (COO)

18310-KSC-305

$1,010.41

4

PIPE, EX.

18320-KSC-000

$265.67

5

PROTECTOR, EX. PIPE

18323-KSC-A30

$68.23

6

PROTECTOR, MUFFLER

18324-KRN-000

$76.58

7

ARRESTER, MUFFLER (COO) This part replaces 18340-KSC-A20.

18340-KSC-305

$261.04

7

ARRESTER, MUFFLER (COO)

18340-KSC-305

$261.04

8

BAND, R. MUFFLER

18373-KE8-000

$25.72

8

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$25.72

9

GASKET, MUFFLER

18392-MK4-000

$12.26

10

NUT, SPRING (6MM)

19508-KA3-710

$5.34

11

RUBBER, SIDE COVER

83512-KA4-700

$4.26

12

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

13

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.42

14

BOLT, FLANGE (8X18)

90123-KZ4-J40

$1.80

15

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.06

16

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.64

17

WASHER (6MM)

90406-KV3-780

$2.20

18

NUT, FLANGE (8MM)

94050-08000

$0.86

19

WASHER, PLAIN (8MM)

94101-08000

$0.75

20

WASHER, PLAIN (8MM)

94102-08800

$0.86
