Description

Price

1

COVER, OIL FILTER

11333-KRN-670

$44.98

2

COVER, L. CRANKCASE

11340-KSC-A30

$236.28

3

GASKET, L. COVER This part replaces 11395-KRN-670.

11395-KRN-671

$13.19

3

GASKET, L. COVER

11395-KRN-671

$13.19

4

VALVE ASSY., RELIEF

15220-MEB-770

$23.77

5

FILTER, ENGINE OIL

15412-MEN-671

$7.74

6

SPRING, OIL FILTER

15414-MEB-670

$2.62

7

DIPSTICK, OIL

15650-KRN-670

$14.77

8

COVER, DRIVE SPROCKET

23810-KSC-A30

$23.57

9

GUIDE, DRIVE CHAIN

23812-KSC-670

$9.84

10

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

11

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

12

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

13

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

14

CAP (14MM)

90084-MEN-670

$11.93

15

WASHER, THRUST (13MM)

90451-459-770

$2.48

16

CIRCLIP, SPECIAL (INNER) (24MM)

90602-MEB-670

$3.08

17

O-RING (8.5X1.7)

90751-GK1-003

$2.70

18

OIL SEAL (10X21X5)

91204-HP1-601

$3.67

19

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

20

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (18X3)

91307-035-000

$2.92

22

CLIP (2X60)

91410-679-000

$10.06

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

PIN, DOWEL (10X16)

94301-10160

$2.28

25

CIRCLIP (INNER) (14MM)

94520-14000

$1.49

26

BOLT, FLANGE (6X30)

96001-06030-07

$1.80

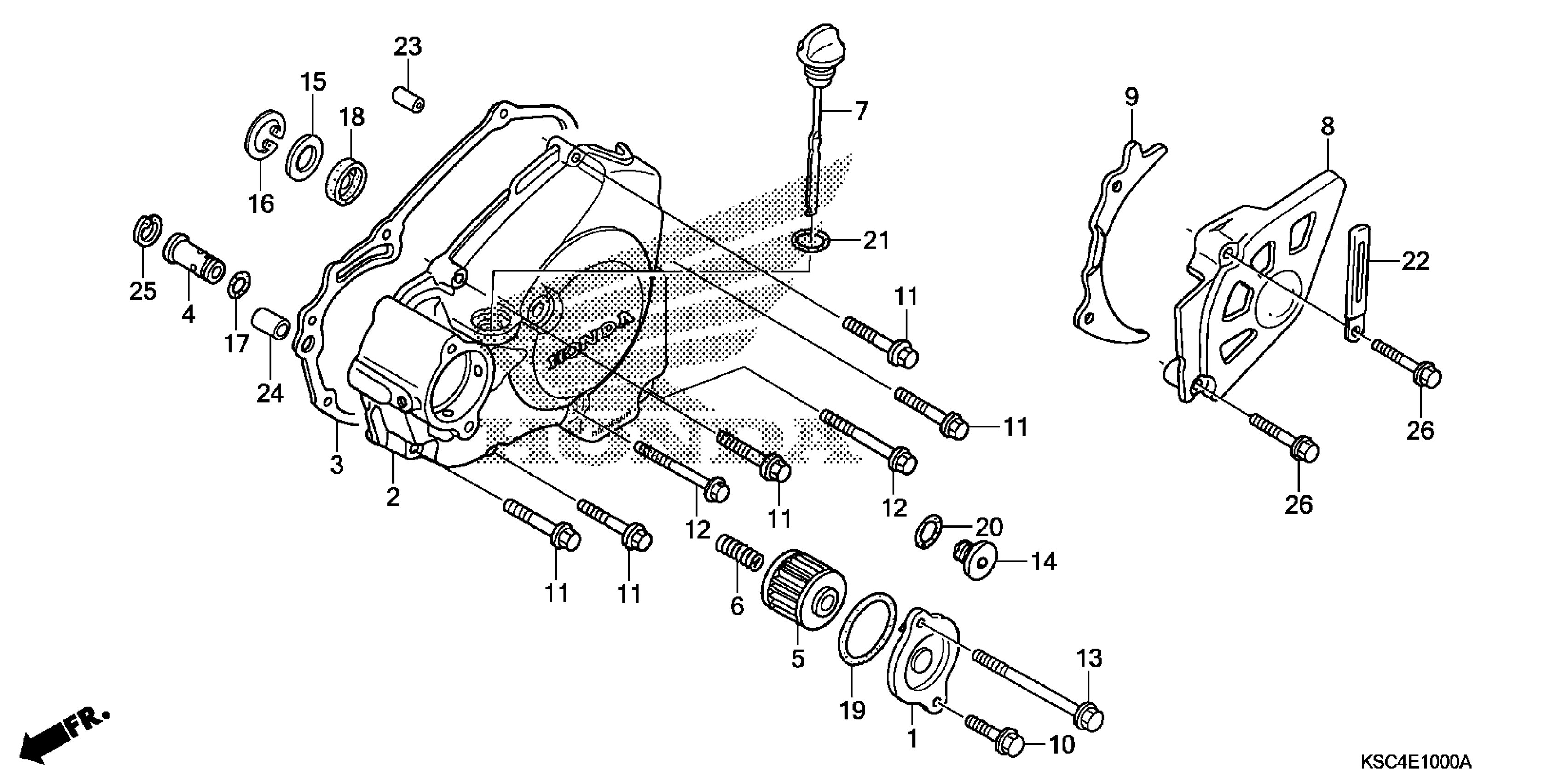

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 LEFT CRANKCASE COVER Diagram
