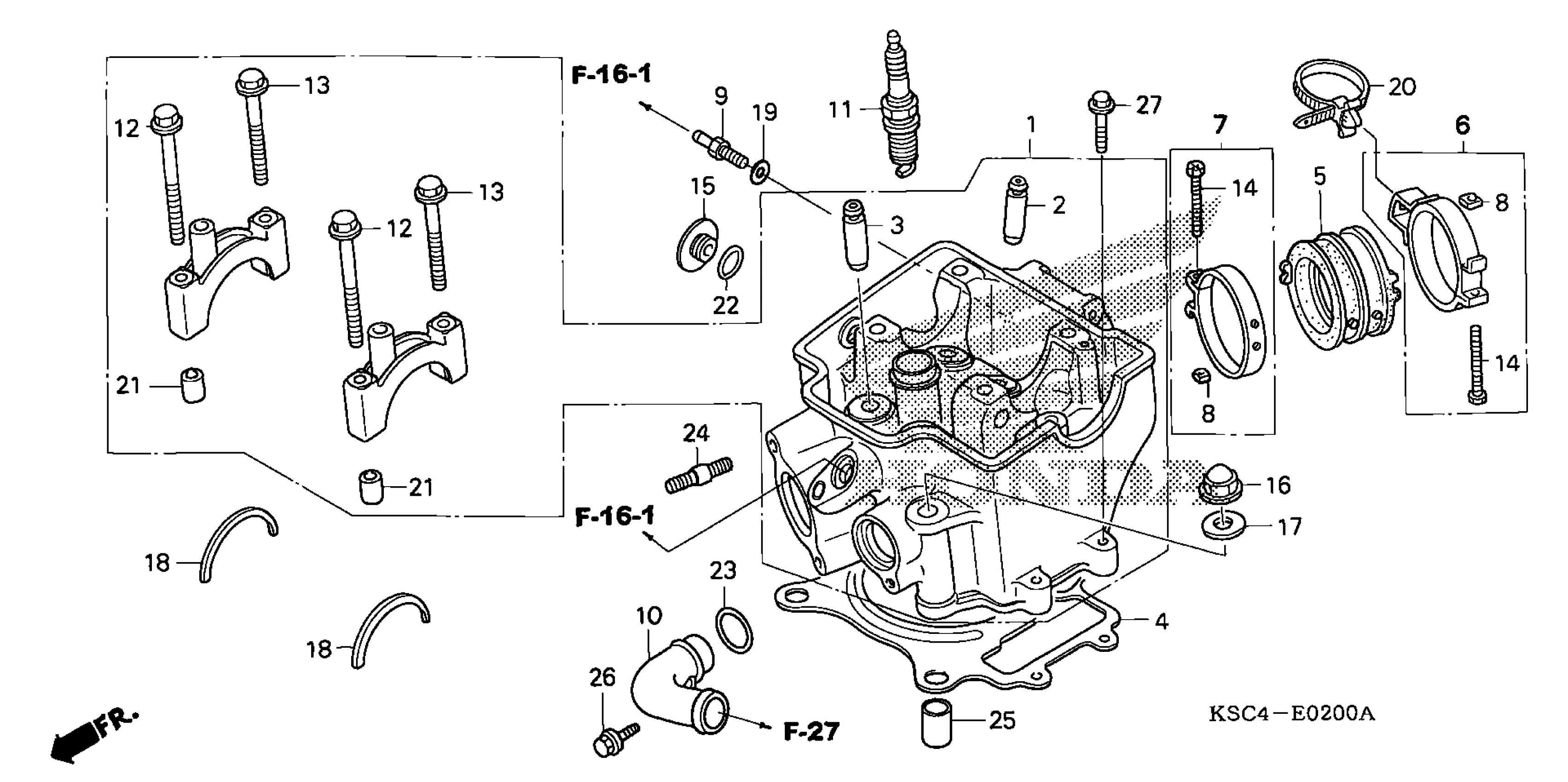

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-KSC-A10

$568.51

2

GUIDE, VALVE (OVER SIZE)

12204-KRN-P00

$14.44

3

GUIDE, EX. VALVE (OVER SIZE)

12205-KRN-P00

$14.87

4

GASKET, CYLINDER HEAD

12251-KRN-731

$22.58

5

INSULATOR, CARBURETOR

16211-KRN-670

$11.01

6

BAND, INSULATOR

16218-KSC-670

$9.28

7

BAND B, INSULATOR

16218-MCJ-000

$8.06

8

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

9

JOINT, BOOST

17113-KSC-670

$3.49

10

JOINT, WATER

19523-KRN-730

$15.37

11

SPARK PLUG (IMR8C-9H) (NGK)

31911-MBW-E11

$15.29

11

SPARK PLUG (IMR9C-9H) (NGK) | (Optional).

31912-MBW-E11

$15.29

11

SPARK PLUG (VUH24D) (DENSO)

31921-MBW-E12

$31.01

11

SPARK PLUG (VUH27D) (DENSO) | (Optional).

31922-MBW-E12

$29.05

12

BOLT, FLANGE (7X60)

90001-KRN-670

$2.54

13

BOLT, FLANGE (7X50)

90002-KRN-670

$2.54

14

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.40

15

CAP (14MM)

90084-MEN-670

$10.93

16

NUT, CAP (9MM)

90232-MB6-680

$3.71

17

WASHER, PLAIN (9MM)

90401-KRN-670

$2.16

18

WASHER, CAMSHAFT THRUST

90446-KRN-670

Unavailable

19

WASHER, SEALING (5MM)

90452-323-000

$1.54

20

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$5.97

21

PIN, DOWEL (9X14)

90701-MR7-000

$4.10

22

O-RING (13.8X2.5)

91303-377-000

$3.26

23

O-RING (19X3) (NOK)

91312-KE7-003

$2.41

24

BOLT, STUD (8X22)

92900-08022-0B

$2.54

25

PIN, DOWEL (12X20)

94301-12200

$2.80

26

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

27

BOLT, FLANGE (6X28)

96001-06028-00

$2.59
