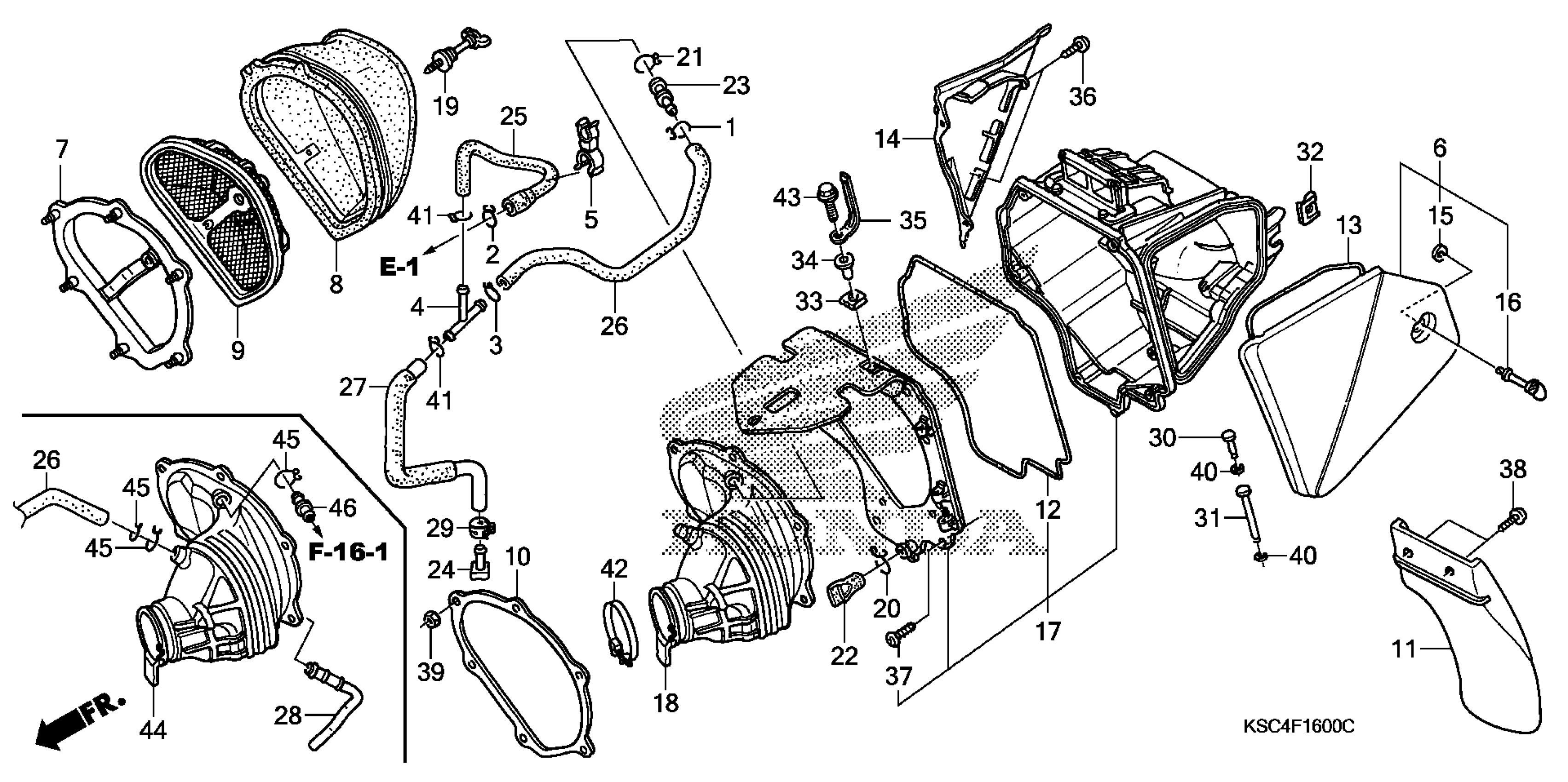

Honda CRF250XA (12) CRF250X, JPN, VIN# JH2ME110-CK600001 AIR CLEANER Diagram

#

Description
Price

2

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

3

CLIP, BREATHER TUBE

15772-551-000

$1.81

4

T-JOINT

17193-MN5-000

$17.08

5

CLAMP, HOSE

16965-VM0-771

$2.70

6

COVER ASSY., AIR CLEANER

17211-KSC-A30

$39.12

7

STAY, AIR CLEANER ELEMENT

17212-MEN-670

$63.96

8

ELEMENT, AIR CLEANER

17213-KSC-000

$35.69

9

BASE ASSY., ELEMENT

17214-MEN-670

$42.85

10

PLATE, FR. AIR CLEANER HOUSING

17217-MEB-770

$11.71

11

SPLASH GUARD, AIR CLEANER HOUSING

17218-KSC-A30

$34.99

12

SEAL, AIR CLEANER HOUSING

17218-KSC-000

$7.71

13

SEAL A, AIR CLEANER COVER

17219-KSC-000

$6.70

14

COVER, R. SIDE

17221-KSC-A30

$18.13

15

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.22

16

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.51

17

HOUSING, AIR CLEANER

17250-KSC-010

$95.78

19

BOLT, ELEMENT SETTING

17291-KSC-000

$6.48

20

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

22

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

22

TUBE, DRAIN

17358-HM8-000

$4.60

24

PLUG, BREATHER TUBE

17370-419-700

$3.49

25

TUBE A, BREATHER

17372-KRN-000

$8.42

26

TUBE B, BREATHER

17374-KSC-770

$9.23

27

TUBE C, BREATHER

17375-KSC-000

$8.04

28

PIPE, BREATHER

17376-KSC-770

$56.26

29

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

30

PIN, BRAKE LOCK LEVER PIVOT

53189-GCS-000

$1.03

31

PIN, VISOR HINGE

64308-GG2-000

$7.35

32

PLATE, SPRING

64508-KV3-000

$6.72

33

NUT, CLIP (6MM)

90305-GK8-000

$2.17

34

COLLAR, AIR CLEANER

90501-KRN-000

$4.77

35

CLIP (2X70)

91413-679-000

$8.30

36

SCREW, TAPPING (4X12)

93903-24380

Unavailable

37

SCREW, TAPPING (5X16)

93903-25380

$0.83

38

SCREW, TAPPING (5X16) (PO)

93913-25410

$1.03

39

NUT, HEX. (5MM)

94002-05070-0S

$0.55

40

E-RING (3MM)

94540-03010

$1.00

41

CLIP, TUBE (B12)

95002-02120

Unavailable

42

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60321

$5.50

43

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

44

TUBE, AIR CLEANER CONNECTING

17253-KSC-770

$51.16

45

CLIP, BREATHER TUBE

17316-611-000

$8.28

46

JOINT (TWO-WAY)

18631-MAH-710

$7.73
