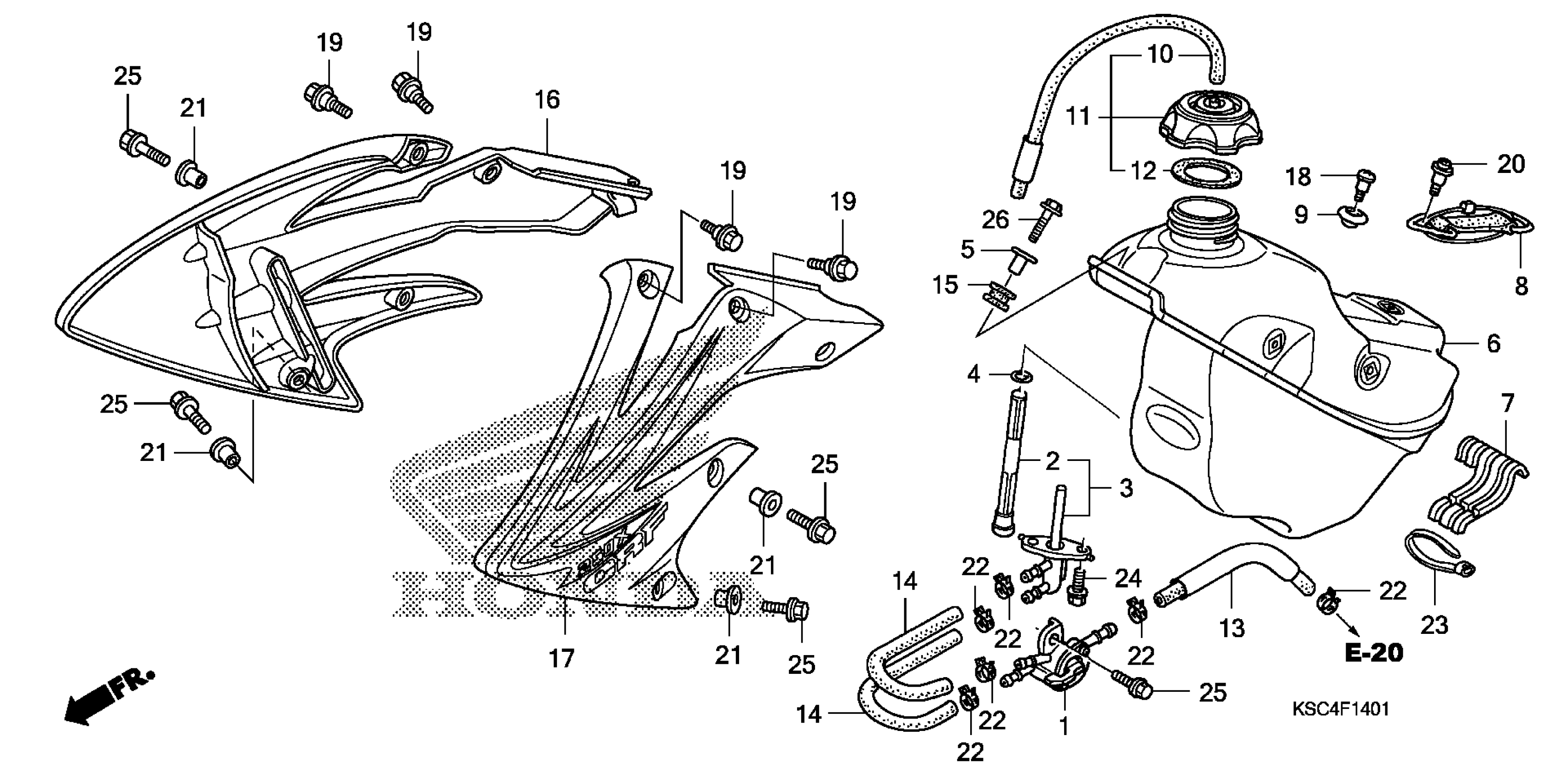

Honda CRF250XA (09) MOTORCYCLE, JPN, VIN# JH2ME110-9K500001 TO JH2ME110-9K599999 FUEL TANK (2) Diagram

PETCOCK ASSY.

16950-KSC-A21

$37.48

SCREEN SET, FUEL STRAINER

16952-KCY-671

$29.49

JOINT ASSY., FUEL

16955-KSC-A21

$32.55

O-RING (11.8X3.55)

16997-467-000

$2.11

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

TANK, FUEL

17510-KSC-A20

$519.26

RUBBER, FUEL TANK MOUNTING

17512-KSC-A20

$11.69

BAND, RR. TANK

17516-KZ3-B00

$16.29

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

TUBE, FUEL CAP BREATHER

17521-KZ4-J20

$4.83

CAP ASSY., FUEL TANK

17620-MEB-670

$91.13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

TUBE B, FUEL

17681-KSC-A20

$16.79

TUBE A, FUEL

17684-KSC-A20

$10.10

RUBBER, MUFFLER

18334-ML3-680

$3.87

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KSC-A30ZA

$108.75

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KSC-A30ZA

$108.75

BOLT, STATOR COVER SETTING

90018-ZA5-000

$1.84

BOLT, SPECIAL (5X9)

90101-KRN-730

$2.64

SCREW (5X12)

90105-MEN-730

$1.67

COLLAR A

90501-KZ4-J20

$3.67

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

TY-RAP, CABLE

91560-MS8-600

$2.38

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X30)

96001-06030-00

$1.49
