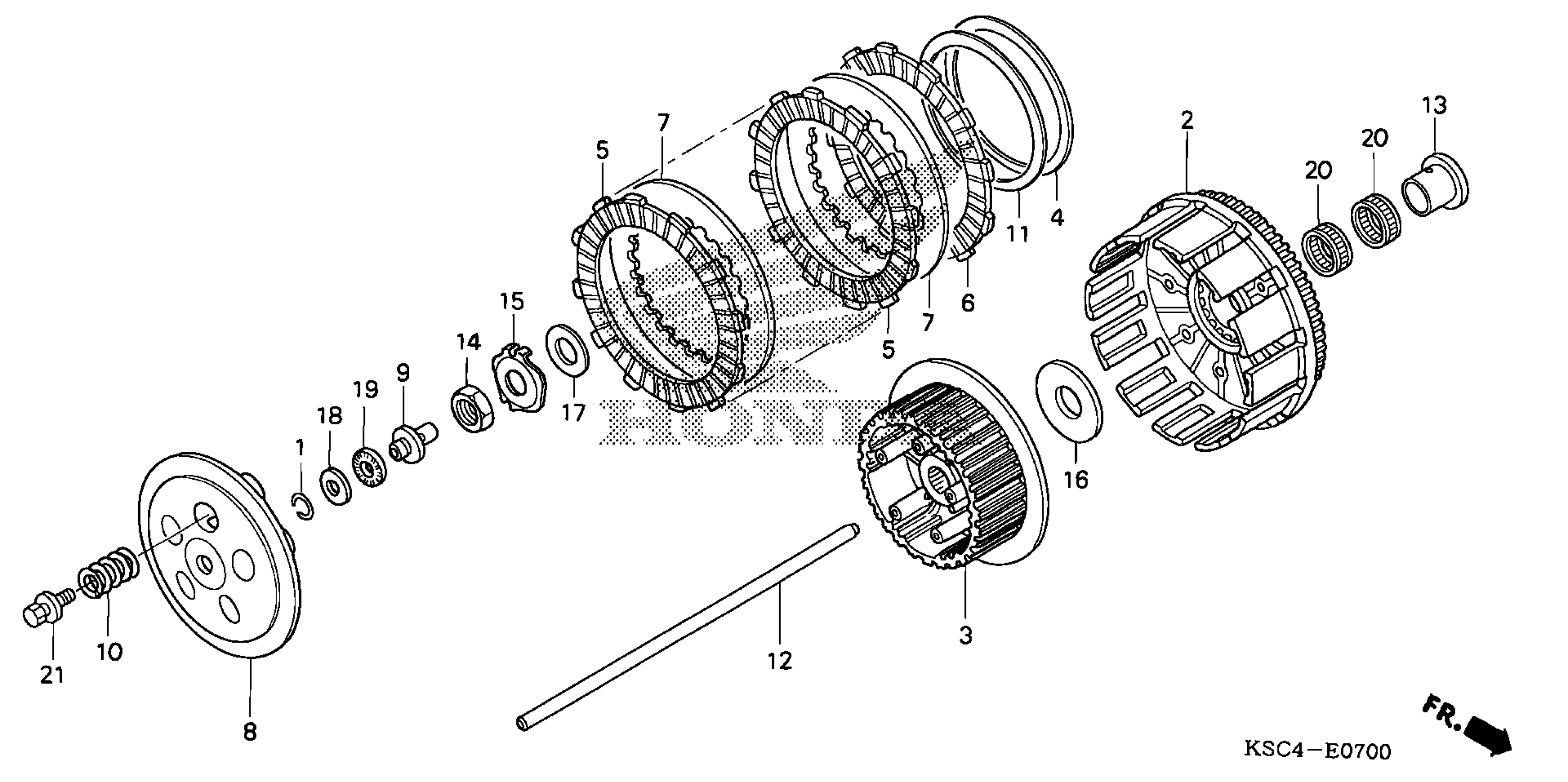

Honda CRF250XA (08) MOTORCYCLE, JPN, VIN# JH2ME110-8M400001 TO JH2ME110-8M409999 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-KSC-000

Unavailable

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

CLUTCH OUTER

22100-KSC-A10

$389.52

CENTER, CLUTCH

22120-KRN-A00

$111.90

SEAT, JUDDER SPRING

22125-435-000

$9.15

DISK A, CLUTCH FRICTION

22201-KSC-670

$14.76

DISK B, CLUTCH FRICTION

22202-KSC-670

$15.38

PLATE, CLUTCH

22321-KF0-770

$14.92

PLATE, CLUTCH PRESSURE

22351-KRN-A10

$54.87

PLATE, CLUTCH PRESSURE This part replaces 22351-KZ4-A90.

22351-KRN-A10

$54.87

PIECE, CLUTCH LIFTER

22352-KZ4-A90

$33.41

SPRING, CLUTCH

22401-KSC-670

$3.97

SPRING, JUDDER

22402-435-000

$34.37

ROD, CLUTCH LIFTER

22851-KZ3-J20

$20.74

COLLAR, CLUTCH (OUTER)

28237-KSC-670

$17.98

NUT (18MM)

90235-KA4-000

$11.09

WASHER, LOCK (18MM)

90441-KSC-670

$3.26

WASHER, THRUST (20MM)

90456-KS6-000

$10.84

WASHER (18X32X2)

90501-ML3-910

$4.37

WASHER (12MM)

90608-072-000

$3.80

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

BEARING, NEEDLE (27X31X16.8)

91012-P68-003

$11.93

BOLT-WASHER (6X20)

93404-06020-08

$1.62
