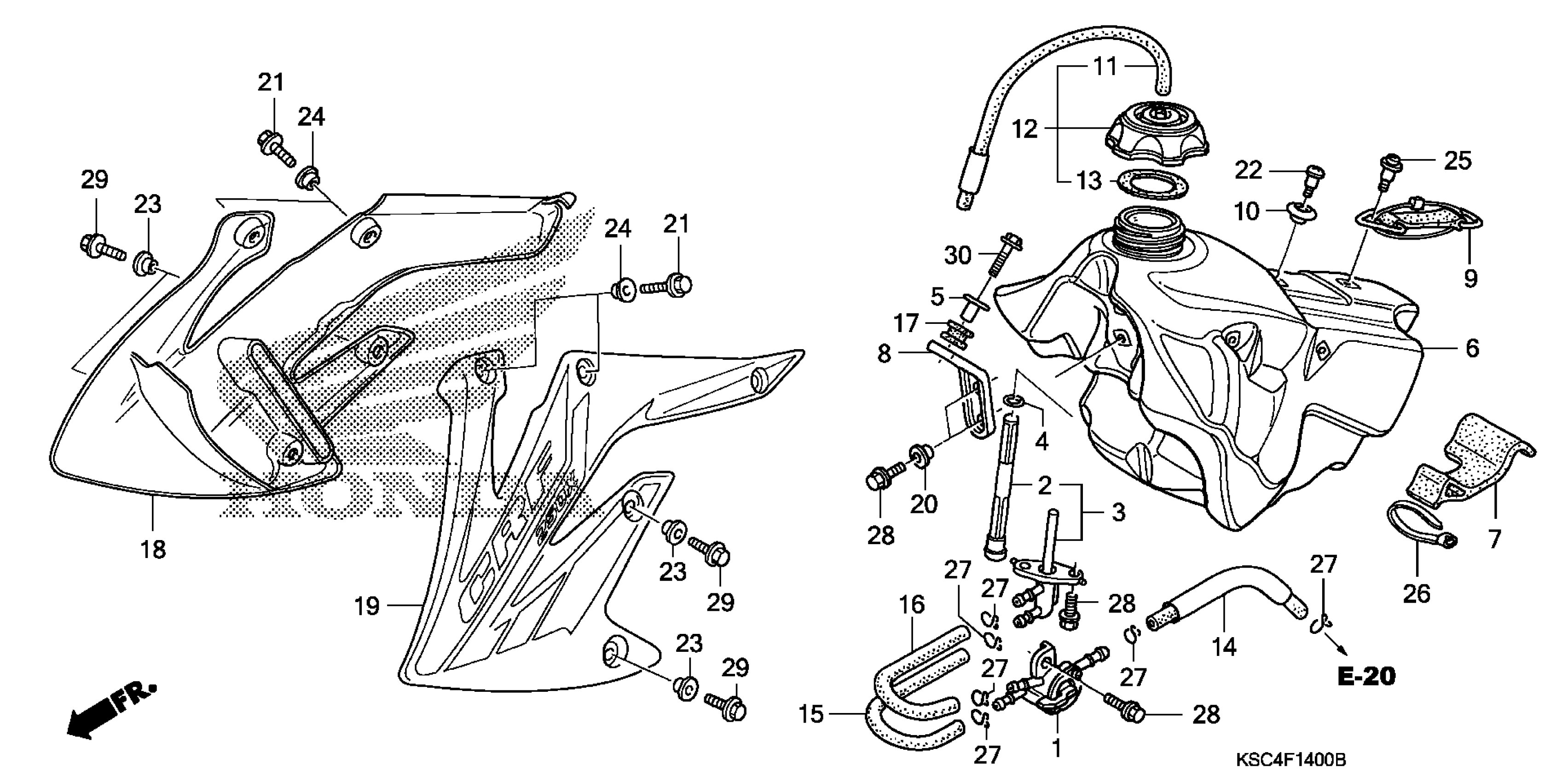

Honda CRF250XA (05) MOTORCYCLE, JPN, VIN# JH2ME110-5M100001 TO JH2ME110-5M109999 FUEL TANK (1) Diagram

PETCOCK ASSY.

16950-KSC-003

$42.02

SCREEN SET, FUEL STRAINER

16952-KCY-671

$29.49

JOINT ASSY., FUEL

16955-KSC-003

$32.33

O-RING (11.8X3.55)

16997-467-000

$2.11

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

TANK, FUEL

17510-KSC-000

Unavailable

RUBBER, FUEL TANK MOUNTING

17512-KRN-010

$19.34

RUBBER, FUEL TANK MOUNTING This part replaces 17512-KRN-000.

17512-KRN-010

$19.34

STAY, FR. TANK

17515-KSC-000

Unavailable

BAND, RR. TANK

17516-KZ3-B00

$16.29

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

TUBE, FUEL CAP BREATHER

17521-KZ4-J20

$4.83

CAP ASSY., FUEL TANK

17620-MEB-670

$91.13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

TUBE B, FUEL

17681-KSC-000

$4.55

TUBE A, FUEL MAIN

17684-KSC-000

$3.44

TUBE A, FUEL RESERVE

17685-KSC-000

$3.44

RUBBER, MUFFLER

18334-ML3-680

$3.87

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KSC-730ZA

Unavailable

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KSC-730ZA

Unavailable

COLLAR

84706-415-000

$2.23

BOLT, FLANGE (5X12)

90106-KRN-000

$1.49

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

COLLAR A

90501-KZ4-J20

$3.67

COLLAR, SHROUD (UPPER)

90502-KRN-000

$2.97

SCREW, PAN (5X13)

90108-MN0-000

$1.70

TY-RAP, CABLE

91560-MS8-600

$2.38

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X30)

96001-06030-00

$1.49
