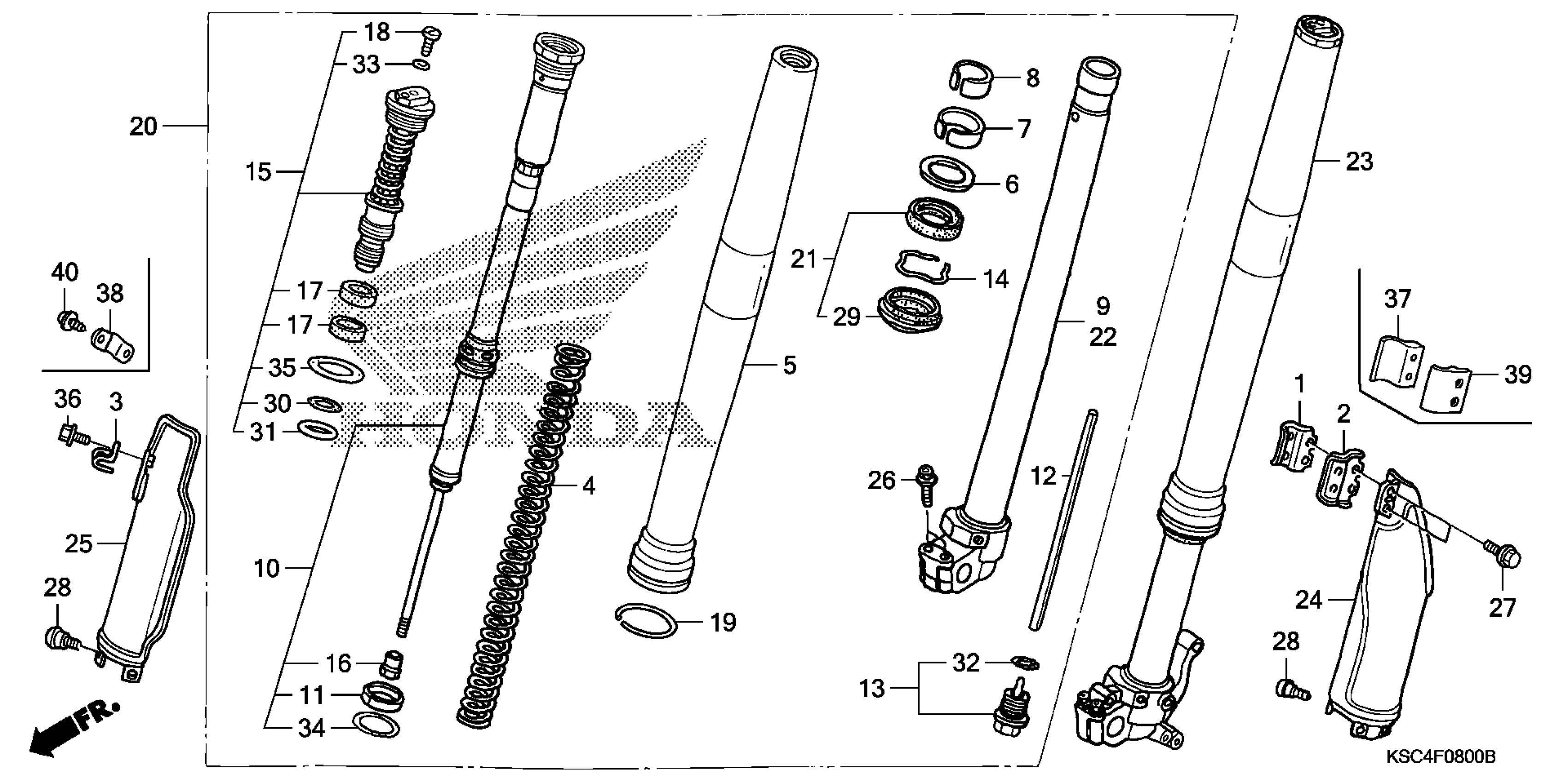

Honda CRF250XA (05) MOTORCYCLE, JPN, VIN# JH2ME110-5M100001 TO JH2ME110-5M109999 FRONT FORK Diagram

CLAMP A, FR. BRAKE HOSE

45461-GBF-J00

$10.73

CLAMP B, FR. BRAKE HOSE

45462-GBF-J00

$9.37

WIRE, SPEEDOMETER CABLE GUIDE

45462-KAE-740

$4.49

SPRING, FR. FORK (4.12N/MM,0.42KGF/MM) (SHOWA)

51401-KSC-003

$110.46

SPRING, FR. FORK (3.92N/MM,0.40KGF/MM) (SHOWA) (OPTIONAL) | (Optional).

51402-KSC-003

$98.05

SPRING, FR. FORK (4.31N/MM,0.44KGF/MM) (SHOWA) (OPTIONAL) | (Optional).

51403-KSC-003

$98.05

TUBE (OUTER)

51410-KSC-003

Unavailable

RING, BACK-UP

51412-KZ3-B01

$10.12

BUSH, GUIDE

51414-KZ3-B01

$16.80

BUSH, SLIDER

51415-KZ3-B01

$9.66

PIPE, R. SLIDE

51420-KSC-003

Unavailable

DAMPER, FR.

51430-KSC-003

Unavailable

BUSH B, SLIDER

51431-KZ3-B01

$9.66

COLLAR, REBOUND NEEDLE

51437-KZ3-J41

$9.83

BOLT, CENTER

51440-KSC-003

$29.11

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

BOLT ASSY., FR. FORK

51450-KSC-003

Unavailable

NUT, LOCK

51451-KZ3-B01

$15.36

BUSH C, SLIDER

51453-KZ3-B01

$6.54

BOLT, PLUG

51456-KZ3-J41

$6.21

RING, WEAR

51476-KZ3-711

$5.83

FORK SUB-ASSY., R. FR. (NOT AVAILABLE)

51480-KSC-003

Unavailable

SEAL SET, FR. FORK

51490-KSC-003

$23.92

PIPE, L. SLIDE

51520-KSC-003

$421.51

FORK SUB-ASSY., L. FR. (NOT AVAILABLE)

51580-KSC-003

Unavailable

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51610-MEB-750ZA

Unavailable

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51620-KCZ-J70ZA

Unavailable

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

BOLT, PROTECTOR

90113-MAC-780

$3.53

DUST SEAL

91254-KSC-003

$11.00

O-RING (26.7X3.5)

91256-KZ3-A71

$3.10

O-RING (27.7X1.9)

91257-MEB-751

$2.28

O-RING (18.8X1.9)

91258-KZ3-B01

$2.72

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
