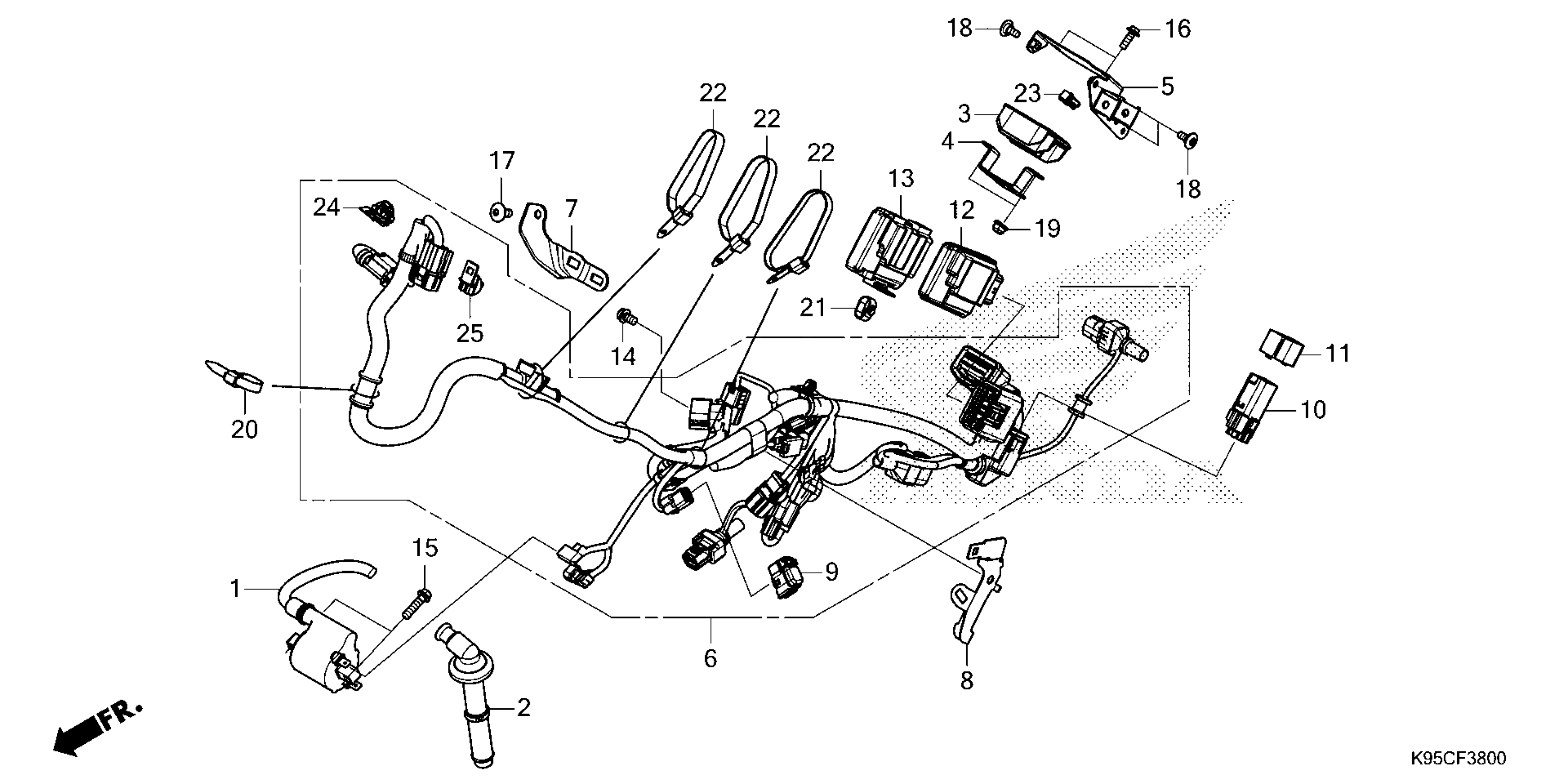

Honda CRF250RXAC (26) MOTORCYCLE, JPN, VIN# JH2ME12C-TK700001 TO JH2ME12C-TK799999 WIRE HARNESS Diagram

COIL ASSY., IGNITION

30500-MKE-A01

$61.93

CAP ASSY., NOISE SUPPRESSOR

30700-K95-A21

$60.39

RECTIFIER ASSY., REGULATE

31600-KZL-931

$158.42

COVER

31601-K95-AG0

$4.32

STAY

31605-K95-AG0

$17.59

WIRE HARNESS

32100-K95-AH0

$254.99

STAY, FR. CONNECTOR

32110-MKE-AF0

$8.58

STAY, HARNESS (L)

32125-MKE-AF0

$7.00

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

Unavailable

RELAY (2P) (WPC)

38580-MKE-A61

$41.58

CUSHION, RELAY

38585-MKE-A11

$4.96

PGM-FI UNIT

38770-K95-AH1

$482.42

SUSPENSION

38771-K95-AG0

$9.25

BOLT, FLANGE (6X10)

90020-GHB-610

$1.93

BOLT, FLANGE (6X22)

90020-GHB-670

$2.12

BOLT, FLANGE (6X18)

90025-GHB-650

$1.96

SCREW, PAN (6X12)

90106-KSE-000

$1.74

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$2.88

NUT, SELF-LOCK (6MM)

90343-ZE6-000

$1.62

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

BAND, RUBBER (50)

90652-MKH-D20

$2.67

BAND SUC HOSE

90679-KPE-C21

$1.87

CLIP, CABLE

90682-MGS-D41

$3.04

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.30
