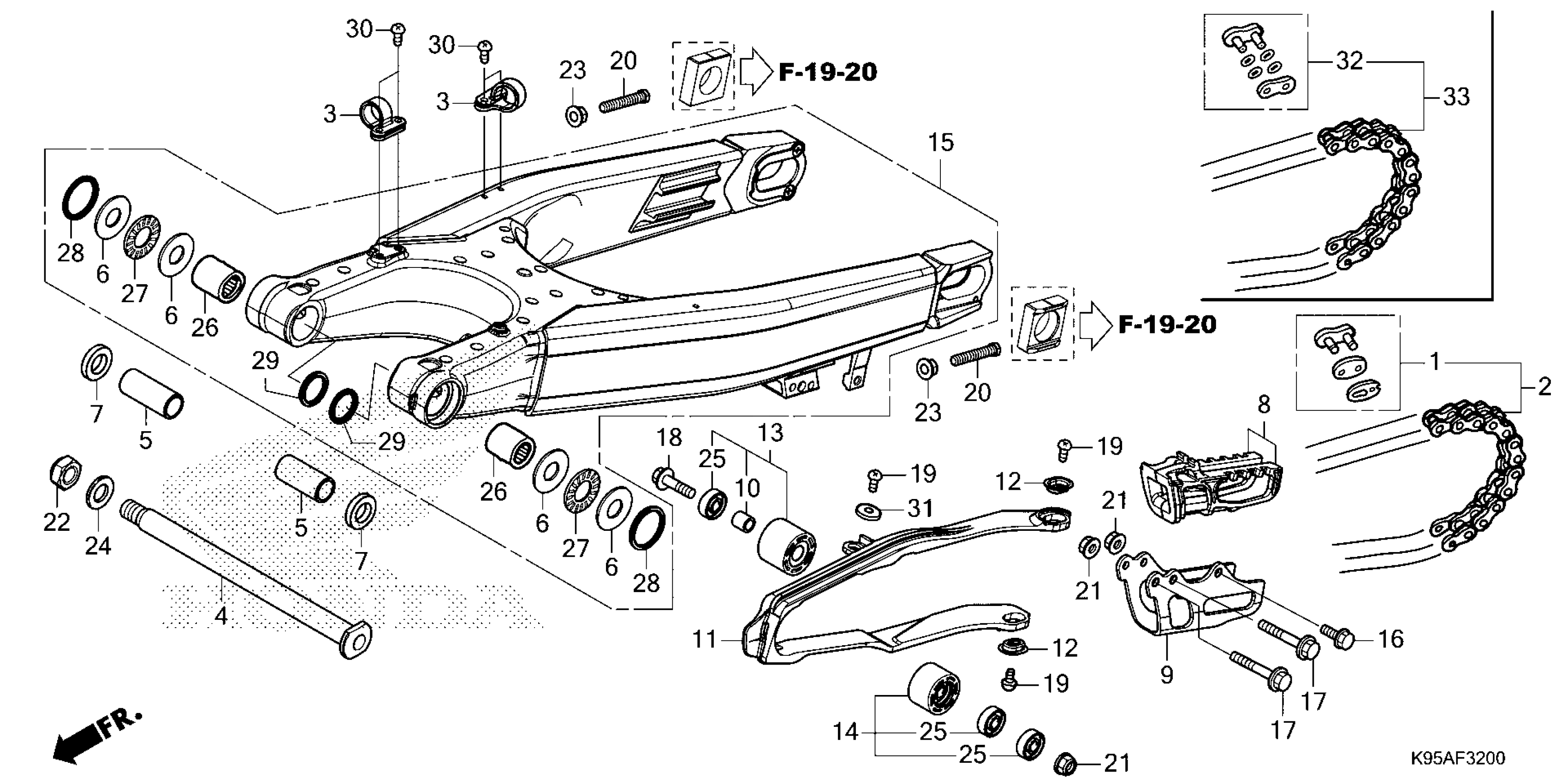

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 SWINGARM Diagram

GUIDE A, BRAKE HOSE

43468-KRN-C90

$4.40

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$25.58

COLLAR, SWINGARM (47MM)

52141-MKE-A70

$22.72

WASHER, SWINGARM SIDE THRUST

52143-MEN-A30

$1.92

COLLAR, SWINGARM PIVOT SIDE

52143-MKE-A60

$10.85

GUIDE SET, CHAIN

52146-MKE-A01

$31.37

PLATE, CHAIN GUIDE

52147-MEN-J00

$47.39

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.72

SLIDER, CHAIN

52170-MKE-AF0

$72.28

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

ROLLER, CHAIN (34MM)

52175-MKE-A00

$54.20

ROLLER, CHAIN (LOWER) (34MM)

52176-MKE-A00

$54.20

SWINGARM SUB-ASSY., RR.

52200-MKE-AF0

$967.18

BOLT, FLANGE (6X12)

90020-GHB-620

$2.15

BOLT, FLANGE (6X45)

90020-GHB-750

$2.70

BOLT, FLANGE (8X32)

90101-MEN-A70

$3.30

SCREW, PAN (5X8)

90101-MKE-A70

$1.49

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.92

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.81

NUT, HEX. (10MM)

90309-357-000

$3.40

WASHER (26X14X2.8)

90501-GAH-000

$6.63

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.63

BEARING, RADIAL BALL (608UU)

91051-KRN-A31

$12.50

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

BEARING, NEEDLE THRUST

91072-KZ3-861

$13.46

DUST SEAL (30X37X3)

91251-MKE-A01

$6.58

DUST SEAL (22X29X3)

91252-MKE-A01

$5.30

SCREW, PAN (5X8)

93500-05008-0G

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49

MASTER LINK (ZJ) (DAIDO)

40535-K95-A51

$11.41

CHAIN, DRIVE (DID520MXV5-120ZB) (STANDARD LINK 114L)

40540-K95-A51

$199.67
