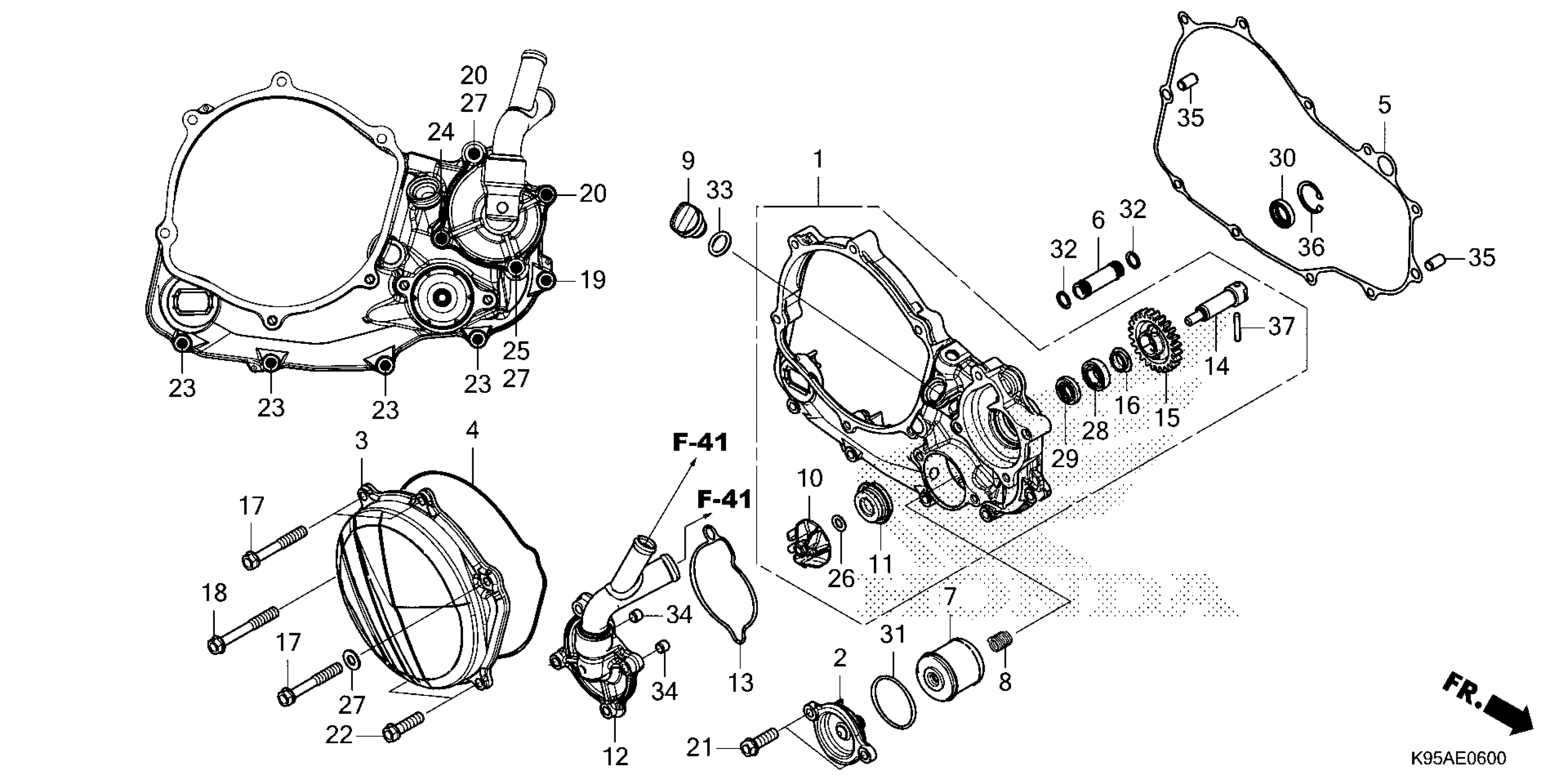

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 RIGHT CRANKCASE COVER @WATER PUMP Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11300-K95-AA0

$324.26

2

COVER, OIL FILTER

11333-MKE-A00

$37.34

3

COVER, CLUTCH

11351-K95-AA0

$122.83

4

GASKET, CLUTCH COVER

11352-K95-A20

$10.86

5

GASKET, R. COVER

11394-K95-A21

$25.48

6

PIPE, OIL PASSAGE

15104-K95-A20

$13.03

7

FILTER, ENGINE OIL

15412-MEN-671

$6.99

8

SPRING, OIL FILTER

15414-MEB-670

$2.39

9

CAP, OIL FILLER

15611-K95-A20

$14.81

10

IMPELLER, WATER PUMP

19215-K95-A20

$41.77

11

SEAL, MECHANICAL

19217-KRN-A61

$41.66

12

COVER, WATER PUMP

19220-K95-A20

$76.03

13

GASKET, WATER PUMP

19226-K95-A20

$4.64

14

SHAFT, WATER PUMP

19241-K95-A20

$57.25

15

GEAR, WATER PUMP DRIVEN (24T)

19242-K95-A20

$19.76

16

COLLAR

19243-K95-A20

$2.38

17

BOLT, FLANGE (6X50)

90020-GHB-760

$2.64

18

BOLT, FLANGE (6X55)

90020-GHB-770

$2.71

19

BOLT, FLANGE (6X35)

90020-GHB-720

$2.26

20

BOLT, FLANGE (6X45)

90020-GHB-750

$2.46

21

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

22

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

23

BOLT, FLANGE (6X28)

90020-GHB-690

$2.12

24

BOLT, FLANGE (6X30)

90020-GHB-700

$2.16

25

BOLT, FLANGE (6X25)

90020-GHB-680

$2.06

26

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

27

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

28

BEARING, BALL (12X24X6)

91002-MEN-A31

$7.92

29

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

29

OIL SEAL (12X22X5)

91201-965-000

$3.77

30

OIL SEAL (14X22X5) (ARAI)

91201-HM3-A61

$2.80

31

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$3.91

32

O-RING (9.6X1.9)

91302-K95-AA1

$1.71

33

D-RING (14X3)

91307-KRN-A41

$2.80

34

PIN, DOWEL (8X7)

91320-KE1-000

$2.03

35

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

36

CIRCLIP (INNER) (24MM)

94520-24000

$1.10

37

ROLLER (4X23.8)

96220-40238

Unavailable
