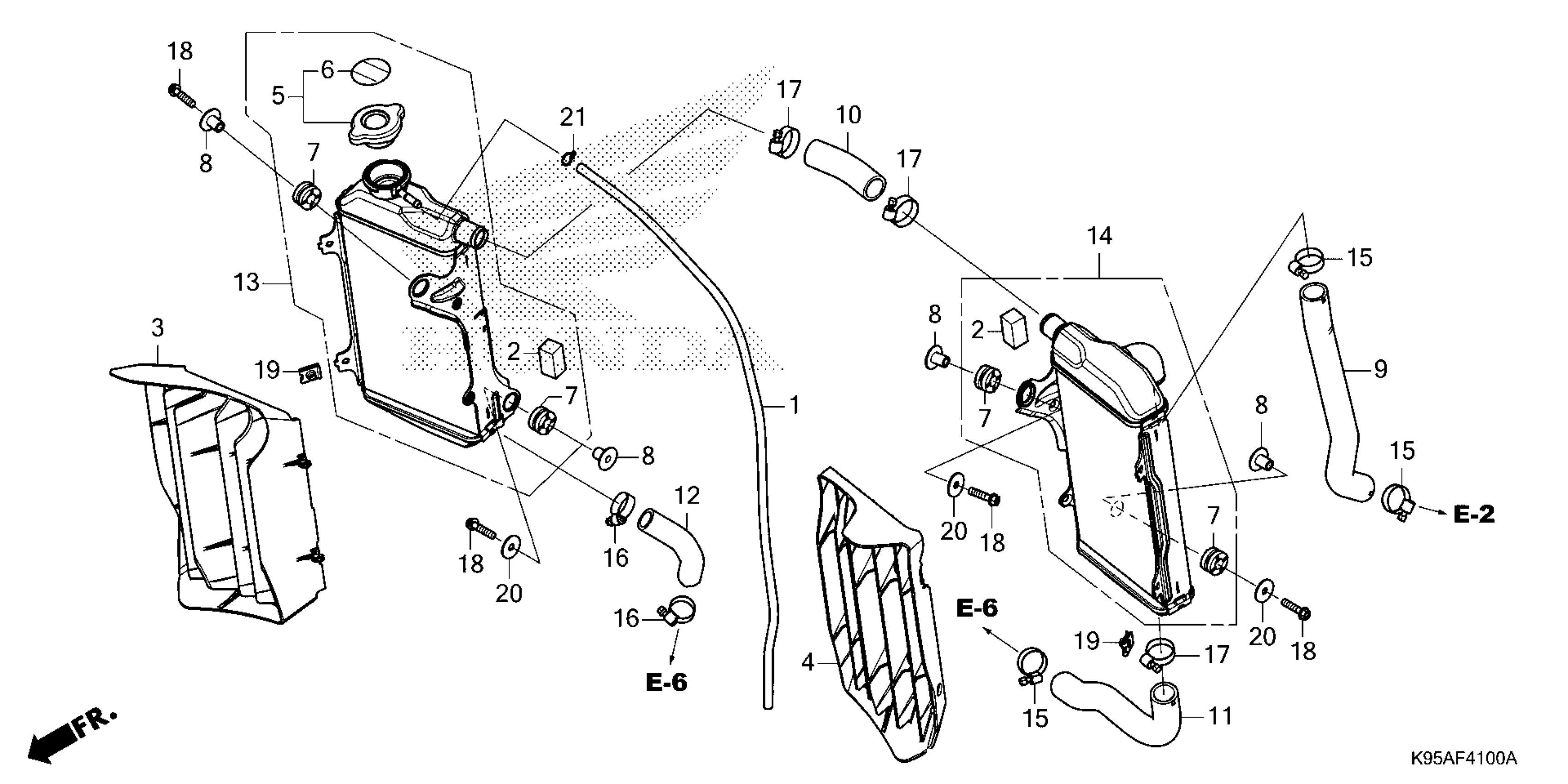

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 RADIATOR Diagram

TUBE, RADIATOR

19003-MKE-A70

$3.80

RUBBER, RADIATOR (UPPER)

19021-MEN-A30

$2.31

GRILLE, R. RADIATOR

19033-MKE-AF0

$40.28

GRILLE, L. RADIATOR

19034-MKE-AF0

$37.98

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE A, WATER

19061-K95-AA0

$14.06

HOSE B, WATER

19062-MKE-AF0

$4.62

HOSE C, WATER

19063-K95-AA0

$14.03

HOSE D, WATER

19064-K95-AA0

$9.23

RADIATOR ASSY., R.

19100-K95-AA0

$287.33

RADIATOR ASSY., L.

19150-K95-AA0

$279.37

CLAMP, WATER HOSE (D27)

19502-MKE-A00

$9.11

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

NUT, CLIP (6MM)

90201-KPR-901

$1.87

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80
