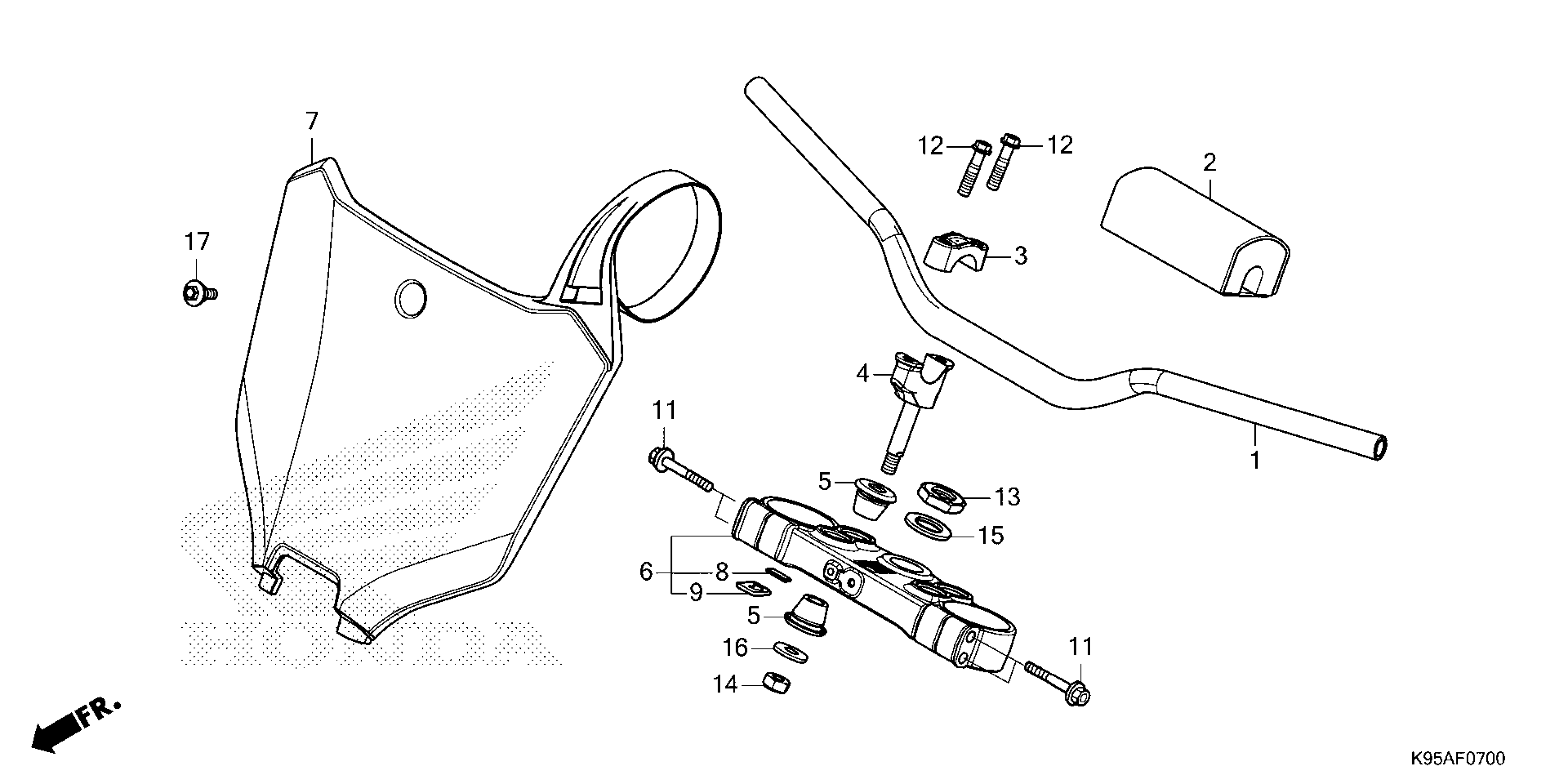

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 HANDLEBAR@TOP BRIDGE Diagram

HANDLEBAR

53100-MKE-A70

$226.34

PROTECTOR, HANDLE

53121-MKE-A70

$86.23

HOLDER, HANDLE (UPPER)

53131-MKE-A70

$25.10

HOLDER, HANDLE (LOWER)

53132-MKE-A70

$41.15

CUSHION, HANDLEBAR

53134-MKE-A70

$3.60

BRIDGE, FORK TOP

53300-K95-AC0

$234.15

PLATE SET, FR. NUMBER (TYPE1) (WL)

61140-MKE-AF0ZA

$48.74

EMBLEM, HRC

86105-K95-AC0

$24.82

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.26

NUT, STEERING STEM

90304-KZ4-J30

$7.93

NUT, U (10MM)

90306-KZ4-711

$3.74

WASHER, STEERING STEM

90503-KZ4-J40

$1.56

WASHER, PLAIN (10MM)

90507-KA3-830

$3.74

BOLT, SPECIAL (6MM)

90126-MEN-A70

$2.99
