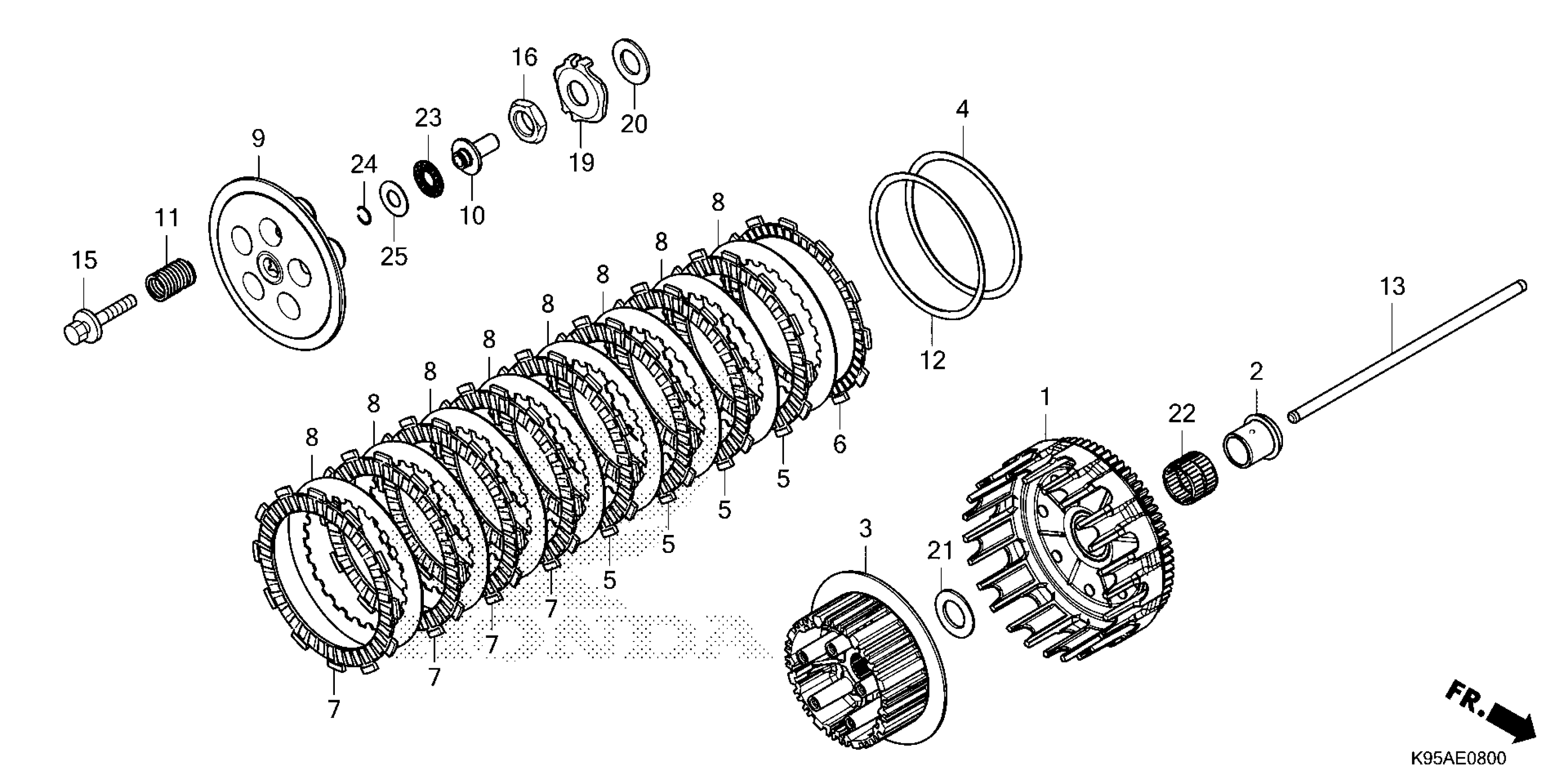

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER (64T)

22100-K95-AA0

$307.51

2

COLLAR, CLUTCH (OUTER)

22116-K95-A20

$13.58

3

CENTER, CLUTCH

22120-K95-AA0

$90.33

4

SEAT, JUDDER SPRING

22125-MJL-D30

$8.20

5

DISK, CLUTCH FRICTION

22201-K95-A20

$11.50

6

DISK B, CLUTCH FRICTION

22202-K95-A20

$11.50

7

DISK, CLUTCH FRICTION

22203-K95-A20

$11.50

8

PLATE, CLUTCH

22321-KF0-770

$13.39

9

PLATE, CLUTCH PRESSURE

22351-KRN-A10

$49.27

10

PIECE, CLUTCH LIFTER

22352-K95-AA0

$41.04

11

SPRING, CLUTCH

22401-K95-AA0

$3.95

12

SPRING, JUDDER

22402-MJL-D31

$42.58

13

ROD, CLUTCH LIFTER

22850-K95-A20

$56.01

15

BOLT, WASHER (6X30)

90024-K95-AA0

$2.10

16

NUT (18MM)

90235-MEN-A30

$4.78

19

WASHER, LOCK (18MM)

90441-KSC-670

$3.03

20

WASHER, THRUST (18X32)

90456-KA4-000

$4.26

21

WASHER, THRUST (20MM)

90459-KB4-670

$3.90

22

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$28.25

23

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.31

24

CLIP, PISTON PIN (10MM)

13115-147-000

$2.01

25

WASHER (12.1X25X1)

90401-MKE-A70

$2.12
