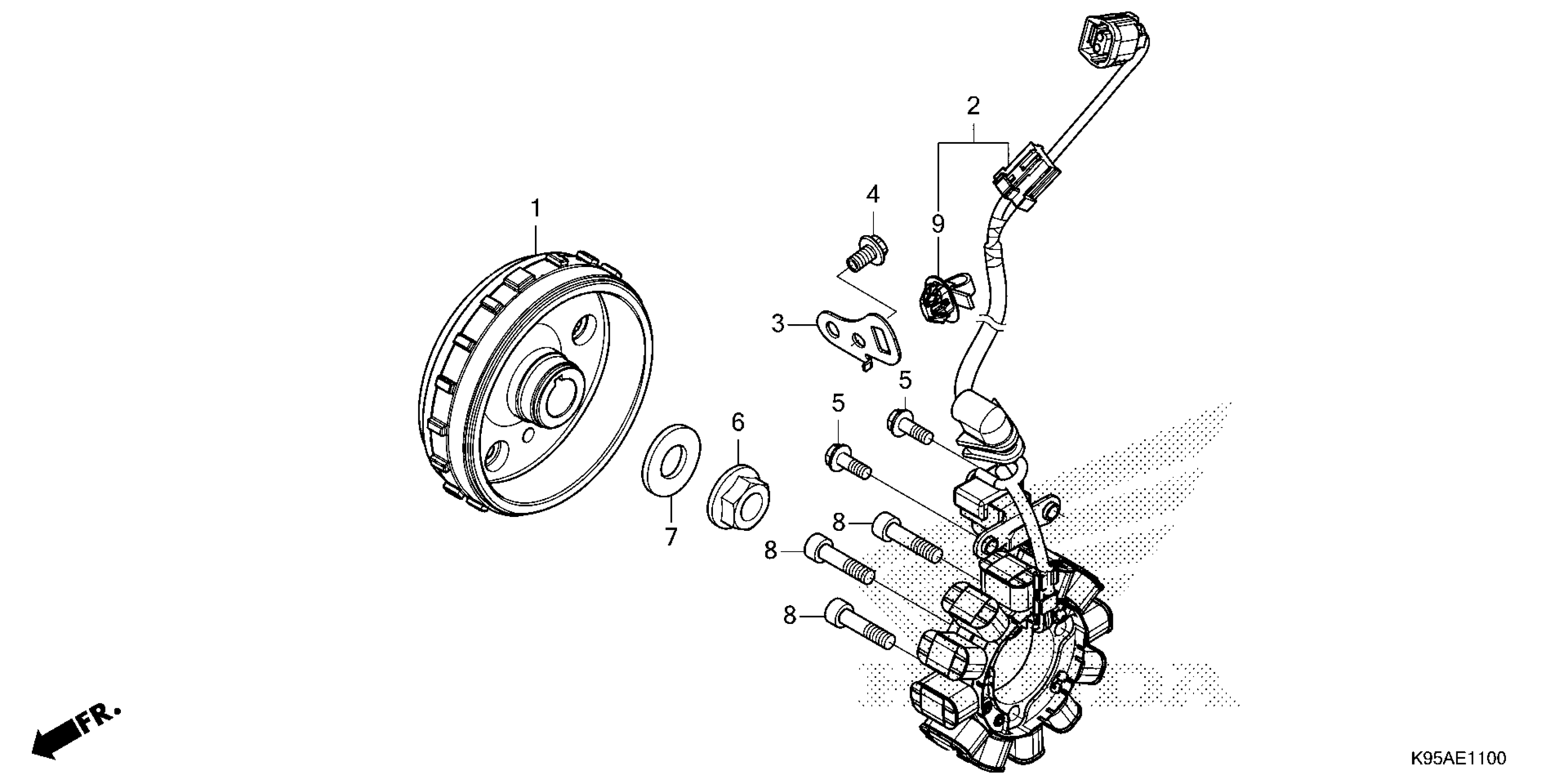

Honda CRF250RXAC (24) MOTORCYCLE, JPN, VIN# JH2ME12C-RK500001 ALTERNATOR Diagram

#

Description
Price

1

FLYWHEEL

31110-K95-AB1

$313.18

2

STATOR

31120-K95-AB1

$260.00

3

STAY, HARNESS

32112-K95-AA0

$5.03

4

BOLT, FLANGE (6X10)

90025-GHB-610

$1.96

5

BOLT, FLANGE (5X14)

90003-MEL-000

$1.22

6

NUT, FLANGE (14MM)

90201-K95-AA0

$4.78

7

WASHER (14.1X29X2.8)

90501-KPT-A00

$2.78

8

BOLT, SOCKET (6X25)

96600-06025-00

$1.71

9

CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

91542-SNA-003

$0.52
