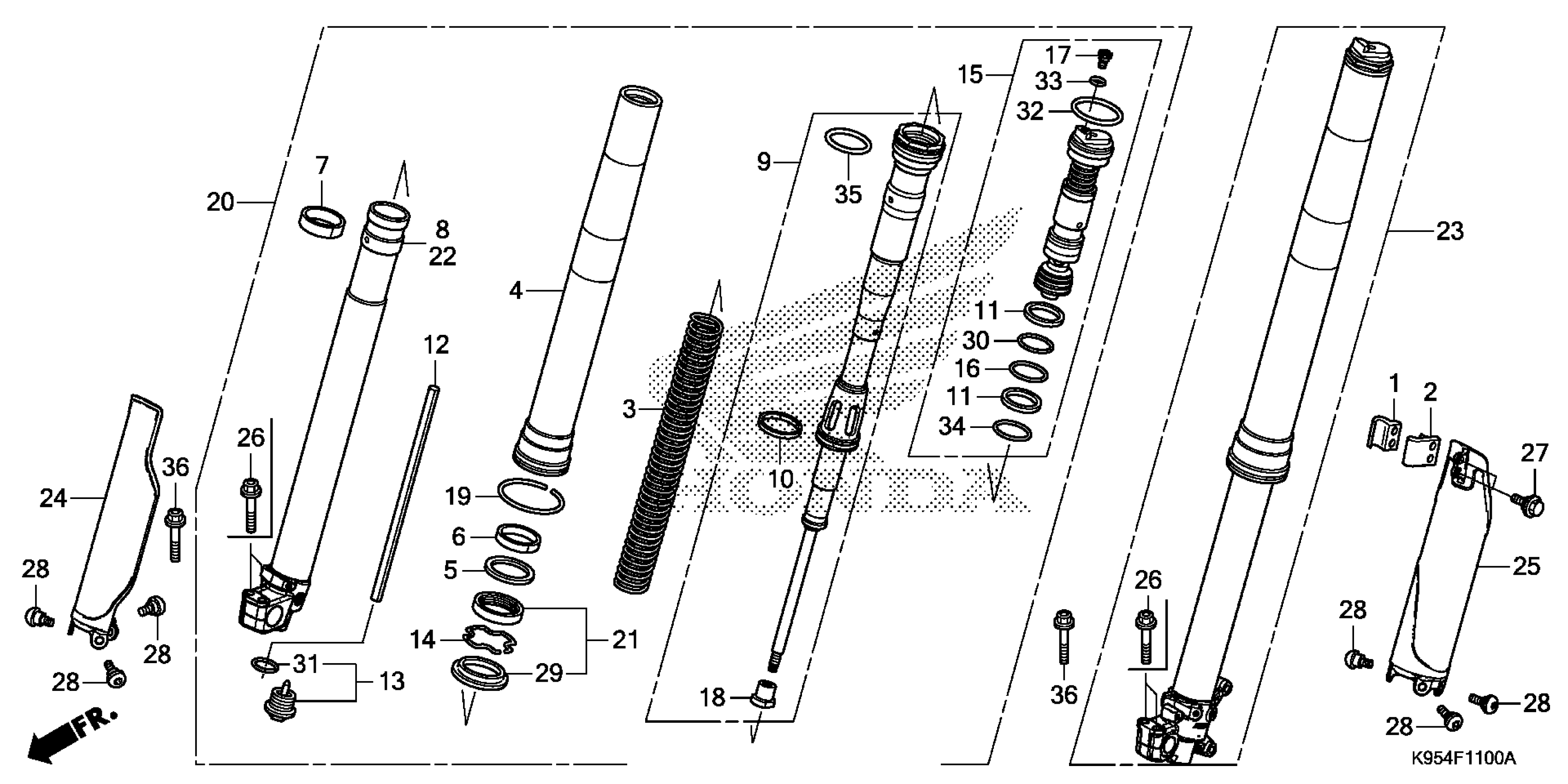

Honda CRF250RXAC (20) MOTORCYCLE, JPN, VIN# JH2ME12C-LK100001 TO JH2ME12C-LK199999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

SPRING, FR. FORK (4.4N/MM) | (Optional).

51401-K95-A21

$95.86

3

SPRING, FR. FORK (4.6N/MM)

51402-MKE-A01

$97.38

3

SPRING, FR. FORK (4.8N/MM) | (Optional).

51402-MKE-A71

$94.16

4

TUBE (OUTER)

51410-MKE-A01

$482.81

5

RING, BACK-UP

51412-MKE-A71

$6.65

6

BUSH, GUIDE

51414-KRN-A91

$11.74

7

BUSH, SLIDER

51415-KRN-A91

$11.56

8

PIPE, R. SLIDE

51420-MKE-A01

$370.91

9

DAMPER, FR.

51430-K95-A51

$392.77

10

BUSH B, SLIDER

51431-MKE-A01

$11.08

11

BUSH, SLIDER

51436-KRN-A91

$12.49

12

COLLAR, REBOUND NEEDLE

51438-KRN-A91

$10.63

13

BOLT, CENTER

51440-KRN-A91

$35.08

14

RING, OIL SEAL STOP

51447-KRN-A91

$3.49

15

BOLT ASSY., FR. FORK

51450-K95-A71

$211.83

16

RING, PISTON

51453-KRN-A91

$9.12

17

BOLT, PLUG

51456-KZ3-J41

$5.78

17

BOLT, PLUG This part replaces 51456-KZ3-711.

51456-KZ3-J41

$5.78

18

NUT, LOCK

51458-KRN-A91

$10.74

19

RING, WEAR

51476-KRN-A91

$7.19

20

FORK ASSY., R. FR.

51400-K95-A71

$1,389.32

21

SEAL SET, FR. FORK

51490-KRN-A91

$23.71

22

PIPE, L. SLIDE

51520-MKE-A01

$370.91

23

FORK ASSY., L. FR.

51500-K95-A71

$1,389.32

24

PROTECTOR, R. FR. FORK *R292R* (EXTREME RED)

51610-MKE-A70ZA

$81.74

25

PROTECTOR, L. FR. FORK *R292R* (EXTREME RED)

51620-MKE-A70ZA

$69.80

27

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

28

BOLT, PROTECTOR

90113-MAC-780

$3.28

29

DUST SEAL

91254-KRN-A91

$11.41

30

O-RING (31.6X1.8)

91256-KRN-A91

$2.81

31

O-RING (22.1X1.9)

91257-KRN-A91

$2.29

32

O-RING (42.2X2.4)

91258-GF4-003

$5.50

33

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

34

O-RING (35.5X2)

91302-MA3-661

$2.37

35

O-RING (47.2X2.4)

91351-KRN-A41

$3.52

36

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94
