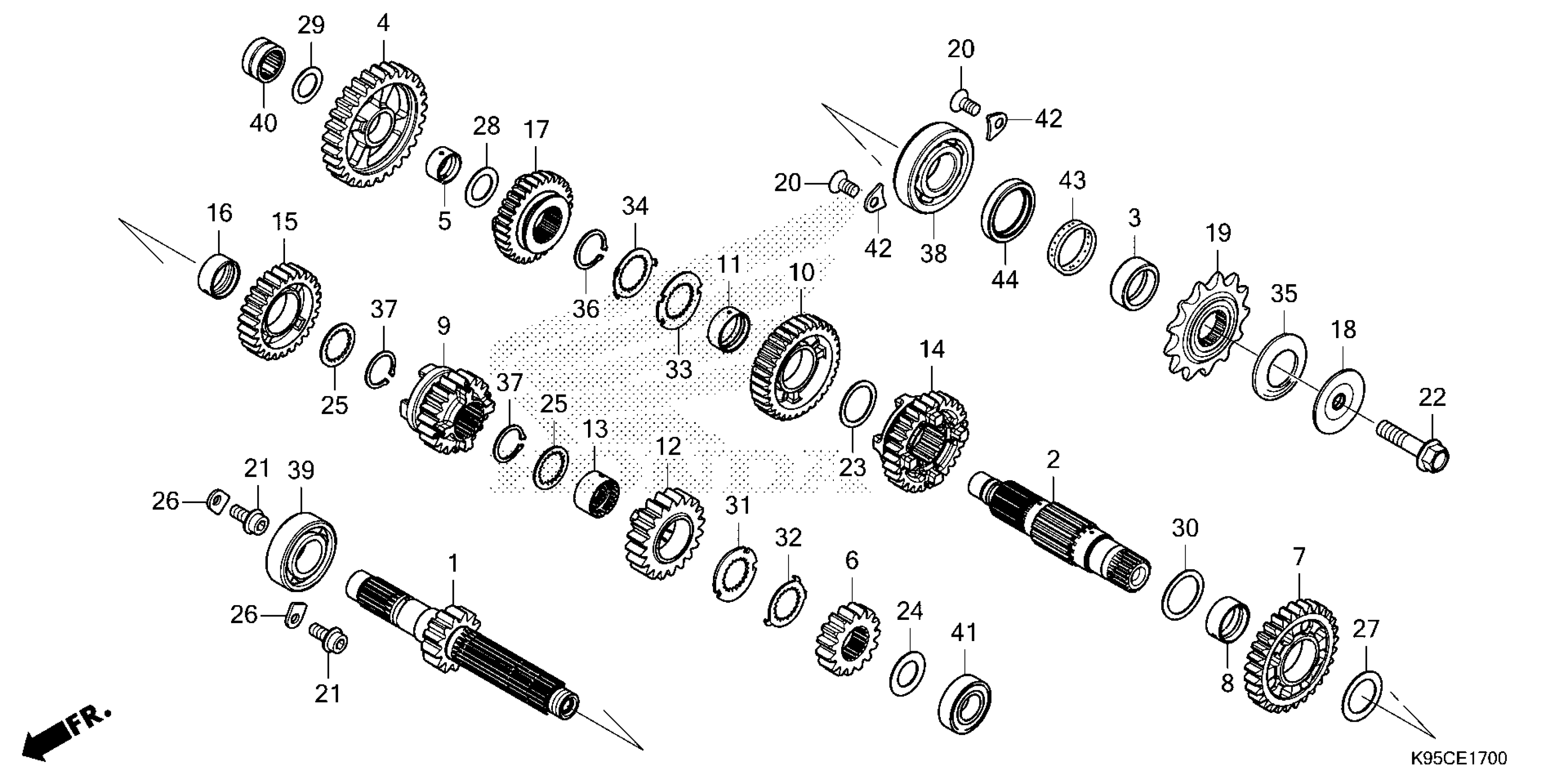

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-K95-AA0

$139.79

2

COUNTERSHAFT

23221-K95-AA0

$133.77

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$14.95

4

GEAR (31T)

23411-K95-AA0

$94.66

5

COLLAR (17MM)

23413-KRN-A40

$7.43

6

GEAR (15T)

23421-K95-AA0

$48.70

7

GEAR (29T)

23431-K95-AA0

$90.00

8

COLLAR (27X30X13.2)

23432-MKE-A00

$16.66

9

GEAR (20T)

23441-K95-AG0

$72.51

10

GEAR (32T)

23451-K95-AA0

$94.66

11

COLLAR (25X28X11) (NOT AVAILABLE)

23452-K95-AA0

$12.34

12

GEAR (20T)

23461-K95-AA0

$87.13

13

COLLAR (22X12.2)

23462-K95-AA0

$13.75

14

GEAR (27T)

23471-K95-AG0

$76.49

15

GEAR (26T)

23481-K95-AA0

$90.00

16

COLLAR (22X25X10)

23482-K95-AA0

$12.89

17

GEAR (30T)

23491-K95-AA0

$103.66

18

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

19

SPROCKET, DRIVE (13T)

23802-MEN-730

$39.50

20

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$2.03

21

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

22

BOLT, UBS (8X33)

90112-413-000

$3.85

23

WASHER (25X32X1.0)

90401-HP1-670

$2.87

24

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

25

WASHER (22X21X1.0)

90404-K95-AA0

$2.43

26

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

27

WASHER, THRUST (24.1X37X1.0)

90445-MKE-A00

$3.43

28

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

29

WASHER (16X26X1.0)

90446-K95-A20

$2.92

30

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.85

31

WASHER, SPLINE (22MM)

90453-K95-A20

$3.10

32

WASHER, LOCK (22MM)

90454-K95-A20

$3.34

33

WASHER, SPLINE (25MM)

90461-MEN-A70

$3.08

34

WASHER, LOCK (25MM)

90462-MEN-A70

$3.31

35

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

36

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

37

SET-RING, COUNTER SECOND

90602-360-000

$9.66

38

BEARING, RADIAL BALL (24X56X14)

91005-MKE-A01

$32.04

39

BEARING, RADIAL BALL (22X47X14)

91006-HM7-003

$36.41

40

BEARING, NEEDLE (16X24X13)

91006-K95-A21

$12.38

41

BEARING, RADIAL BALL (17X40X11)

91006-MKE-A51

$20.67

42

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

43

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.67

44

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65
