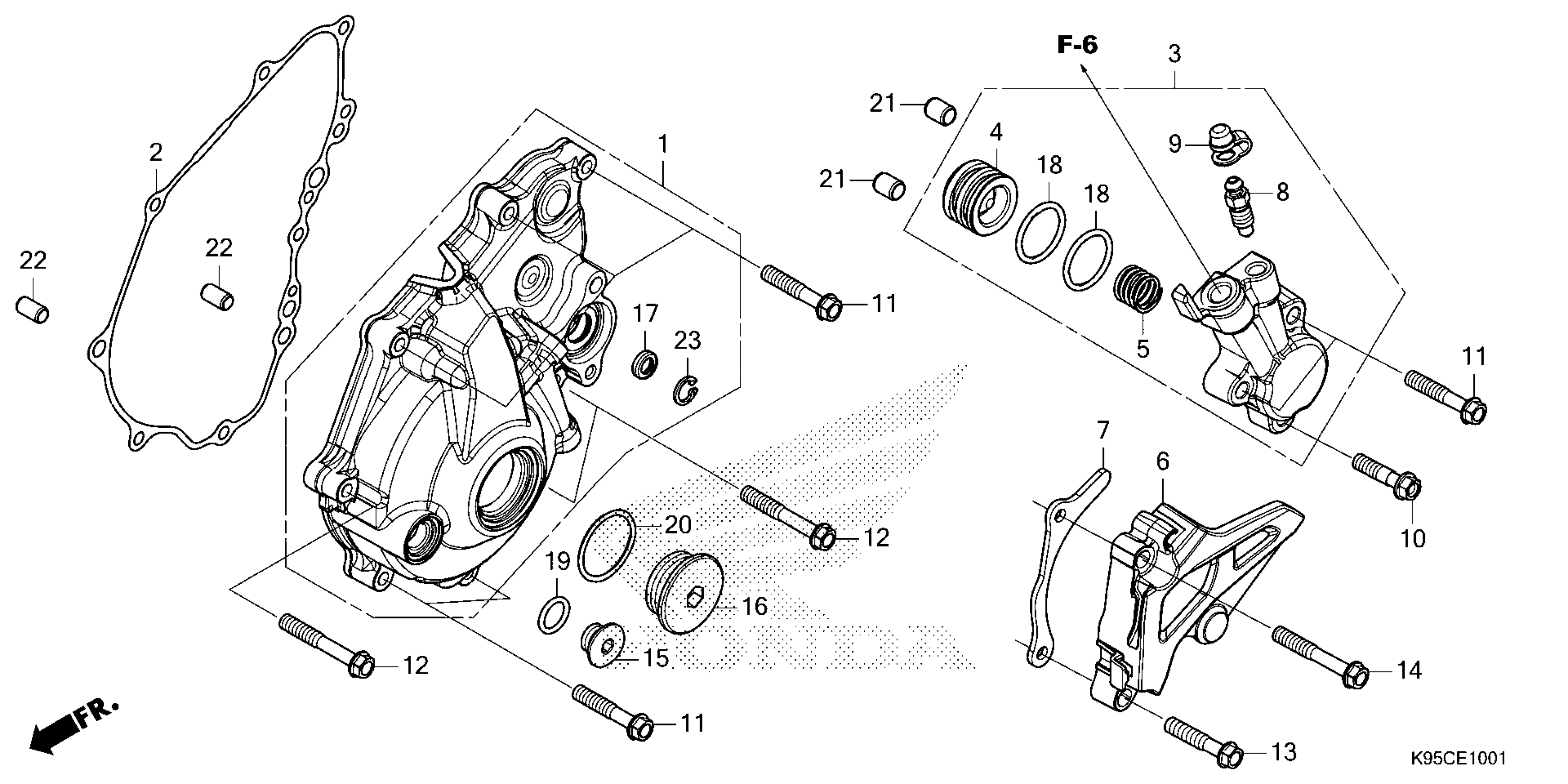

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 LEFT CRANKCASE COVER (CRF250RWE) Diagram

COVER, L. CRANKCASE

11340-K95-AJ0

$155.51

GASKET, L. COVER

11395-K95-A21

$15.49

CYLINDER ASSY., SLAVE

22860-K95-AJ1

$191.06

PISTON, SLAVE CYLINDER

22862-MKE-AF1

$48.18

SPRING, SLAVE CYLINDER

22863-MKE-AF1

$4.04

COVER, DRIVE SPROCKET

23810-K95-AJ0

$17.60

GUIDE, DRIVE CHAIN

23812-K95-A20

$10.43

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

BOLT, FLANGE (6X25)

90020-GHB-680

$2.09

BOLT, FLANGE (6X32)

90020-GHB-710

$2.46

BOLT, FLANGE (6X40)

90020-GHB-740

$2.46

BOLT, FLANGE (6X30)

90021-GHB-700

$2.15

BOLT, FLANGE (6X40)

90021-GHB-740

$2.50

CAP (14MM)

90085-K95-AA0

$8.80

CAP (32MM)

90087-K95-AA0

$16.21

OIL SEAL (7X14.5X5)

91202-MKE-AF1

$3.10

O-RING (21.1X2.45)

91301-MKE-AF1

$1.97

O-RING (13.8X2.5)

91303-377-000

$3.26

O-RING (31.7X2.4)

91305-KRM-840

$1.28

PIN A, DOWEL (8X10)

94301-08100

$2.76

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

CIRCLIP (15MM)

94520-15000

$0.54
