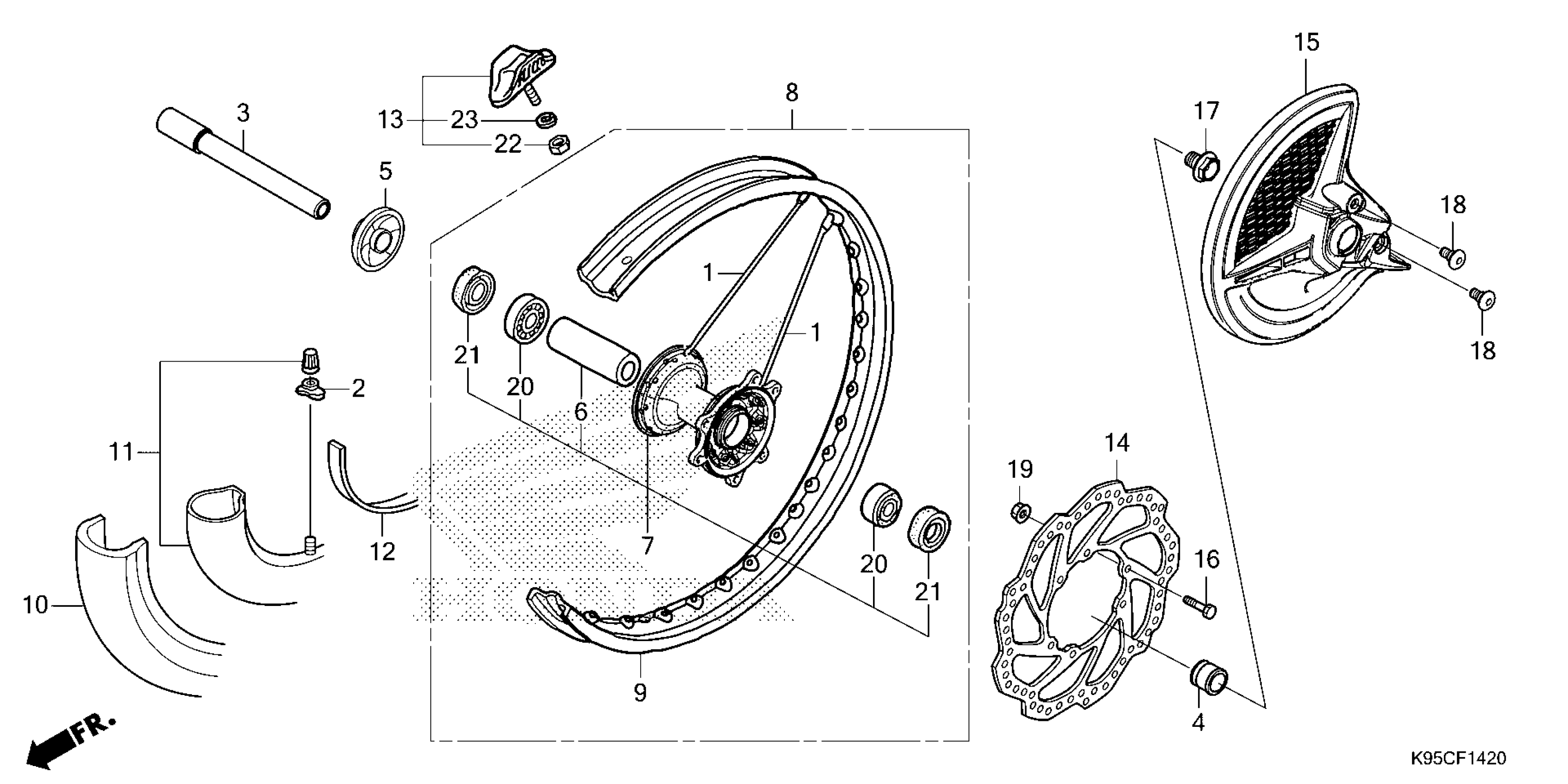

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 FRONT WHEEL Diagram

SPOKE SET, FR. (240MM)

06440-MEN-840

$4.37

CAP, VALVE

42714-KA3-710

$10.46

AXLE, FR. WHEEL

44301-K95-AG0

$37.25

COLLAR, L. FR. WHEEL

44311-MKE-A60

$17.46

COLLAR, R. FR. WHEEL

44312-KRN-A30

$19.24

COLLAR, FR. WHEEL DISTANCE

44620-MKE-A60

$20.25

HUB SUB-ASSY., FR.

44635-MKE-A60

$239.61

WHEEL SUB-ASSY., FR.

44650-MKE-A90

$882.70

RIM, FR. WHEEL (21X1.60)

44701-MKE-A91

$320.48

TIRE (80/100-21 51M)

44711-MKE-AF2

$104.19

TUBE, TIRE (DUNLOP) This part replaces 44712-400-024.

44712-400-034

$44.01

TUBE, TIRE (DUNLOP)

44712-400-034

$44.01

FLAP, TIRE (80/100-21) (DUNLOP)

44713-KS6-641

$6.08

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

DISK, FR. BRAKE

45351-K95-AG1

$147.69

COVER, FR. DISK *NH1* (BLACK)

51614-MKE-A00ZA

$29.63

BOLT, DISK (6X19)

90105-MAC-680

$4.99

BOLT, FR. AXLE

90112-K95-AG0

$4.34

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$3.10

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

BEARING, RADIAL BALL (6904)

91062-MAC-681

$24.55

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$11.37

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
