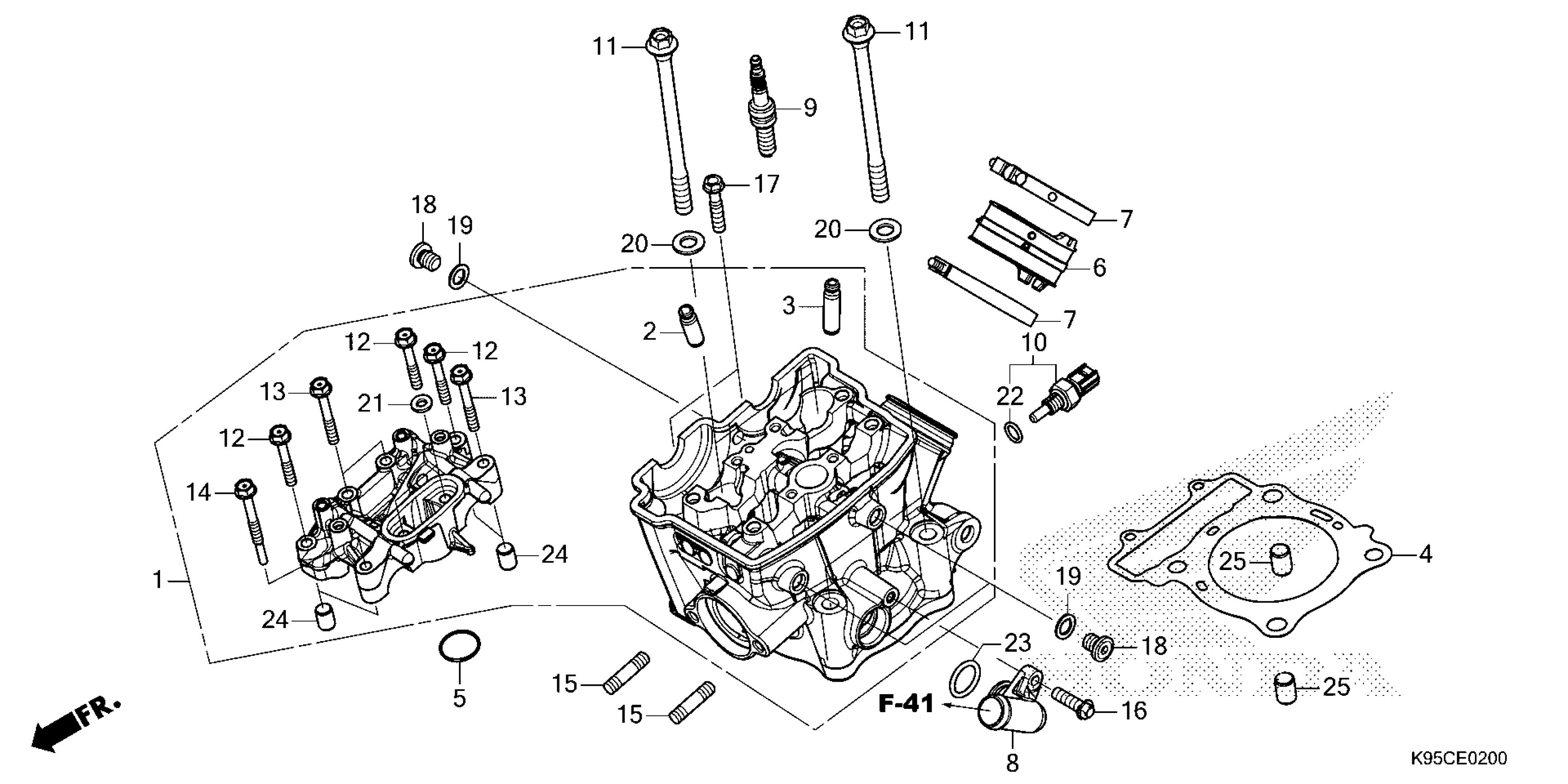

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-K95-AJ0

$532.41

GUIDE, VALVE (OVER SIZE)

12204-K95-P20

$14.27

GUIDE, VALVE (OVER SIZE)

12204-KRN-P10

$13.32

GASKET, CYLINDER HEAD

12251-K95-A21

$29.49

O-RING, PLUG HOLE

12395-MKR-D10

$3.42

INSULATOR

16211-K95-AA0

$14.20

BAND, INSULATOR

16217-MKE-AF0

$11.53

JOINT, WATER

19523-KRN-730

$16.74

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$18.81

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$9.14

BOLT, FLANGE (10X135)

90001-K95-A20

$7.81

BOLT, FLANGE (6X40)

90003-K95-A20

$2.92

BOLT, FLANGE (6X45)

90004-K95-AA0

$3.05

BOLT (6X45)

90007-K95-AA0

$5.25

BOLT, STUD (8X34)

90012-KM9-000

$3.13

BOLT, FLANGE (6X20)

90020-GHB-660

$2.33

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

BOLT, SPECIAL (10MM)

90042-K95-AA0

$4.39

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

WASHER, PLAIN (10MM)

90453-MKE-A00

$2.84

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$3.11

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

PIN A, DOWEL (8X10)

94301-08100

$2.25

PIN A, DOWEL (12X16)

94301-12160

$2.27
