Description

Price

1

CRANKCASE, R.

11100-K95-AA0

$394.43

2

JET, PISTON

11110-K95-A40

$49.38

3

GASKET, CRANKCASE

11191-K95-A21

$27.81

4

CRANKCASE, L.

11200-K95-AA0

$394.36

5

VALVE, REED

11221-MKE-A00

$7.78

6

STOPPER, REED VALVE

11231-K95-AG0

$9.18

7

STRAINER, OIL

15153-K95-A20

$17.79

8

PLATE, OIL GUIDE (NOT AVAILABLE)

15301-K95-AA0

$6.34

9

SCREEN, OIL FILTER

15421-MKE-A70

$14.53

13

SWITCH ASSY., CHANGE

35759-K95-AJ1

$71.44

14

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.80

15

BOLT-WASHER (6X14)

90019-MKE-A00

$2.38

16

BOLT, FLANGE (6X12)

90020-GHB-620

$2.15

17

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

19

BOLT, FLANGE (6X28)

90025-GHB-690

$2.33

20

BOLT, FLANGE (6X45)

90025-GHB-750

$2.92

21

BOLT, FLANGE (6X50)

90025-GHB-760

$2.90

22

BOLT, FLANGE (6X65)

90025-GHB-790

$3.36

23

BOLT, FLANGE (6X75)

90025-GHB-810

$2.92

24

CAP (14MM)

90084-K95-AA0

$7.55

25

PLATE, BEARING HOLDER

90441-MEN-A30

$3.60

26

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

27

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

28

CLAMP, HARNESS

90690-MEF-800

$1.49

30

BEARING, RADIAL BALL (30X72X16)

91001-K95-A21

$39.47

31

BEARING, RADIAL BALL SPECIAL (6202)

91001-MEN-A31

$11.09

32

BEARING, SPECIAL ROLLER

91002-K95-A21

$48.74

33

BEARING, RADIAL BALL (6805)

91004-GEM-003

$10.95

34

OIL SEAL (39X56X7.5)

91202-K95-A41

$17.35

35

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

36

OIL SEAL (24X36X7)

91206-K95-A21

$7.63

37

OIL SEAL (31X45X7)

91207-K95-A21

$8.91

38

O-RING (16.5X2.5)

91305-KC1-850

$1.86

39

PIN A, DOWEL (8X10)

94301-08100

$2.25

40

PIN A, DOWEL (14X20)

94301-14200

$2.28

41

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

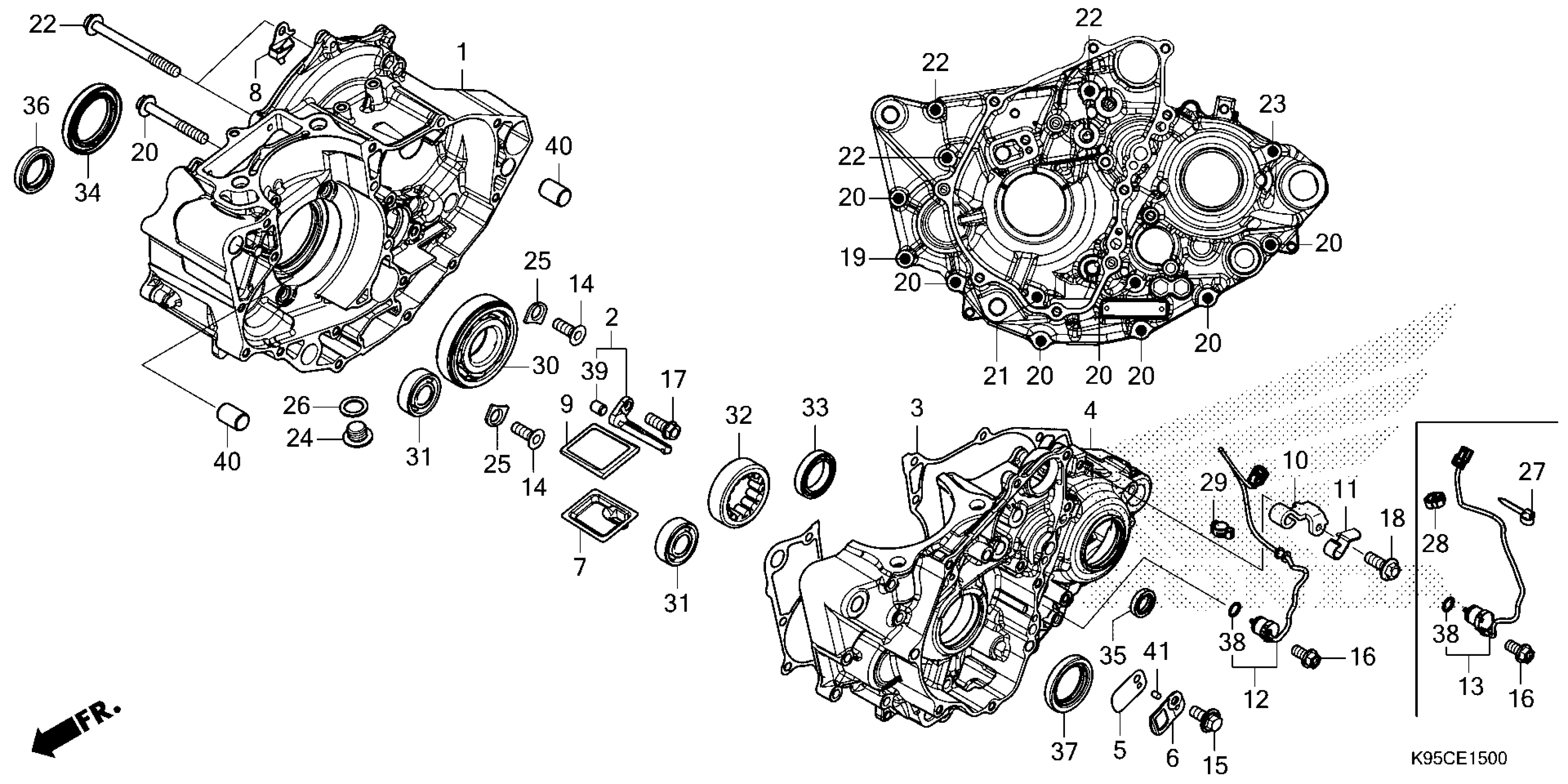

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 CRANKCASE Diagram
