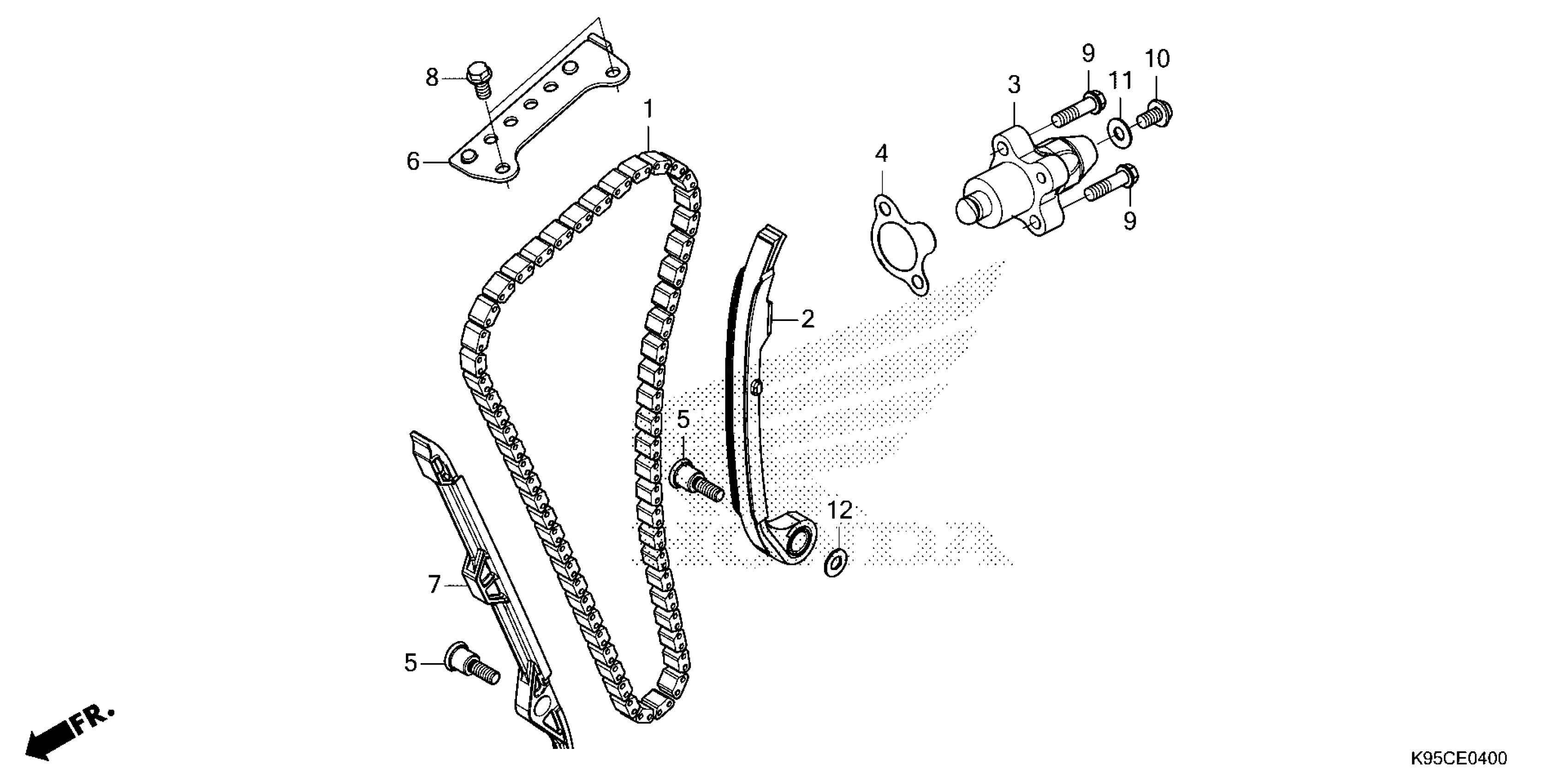

Honda CRF250RWEAC (25) MOTORCYCLE, JPN, VIN# JH2ME153-SK000001 TO JH2ME153-SK099999 CAM CHAIN@TENSIONER Diagram

#

Description

Price

1

CHAIN, CAM (106L) (BORG WARNER)

14401-K95-A21

$66.46

2

TENSIONER, CAM CHAIN

14510-K95-A21

$67.41

3

LIFTER ASSY., TENSIONER

14520-K95-A21

$81.97

4

GASKET, TENSIONER HOLE

14523-K95-A21

$2.67

5

BOLT, TENSIONER PIVOT

14531-K95-A20

$3.68

6

GUIDE B, CAM CHAIN

14546-K95-A20

$45.91

7

GUIDE, CAM CHAIN

14611-K95-A20

$26.06

8

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.80

9

BOLT, FLANGE (6X22)

90020-GHB-670

$2.12

10

BOLT, FLANGE (6X10)

90025-GHB-610

$1.96

11

WASHER, SEALING (6MM)

90442-397-000

$2.25

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable
