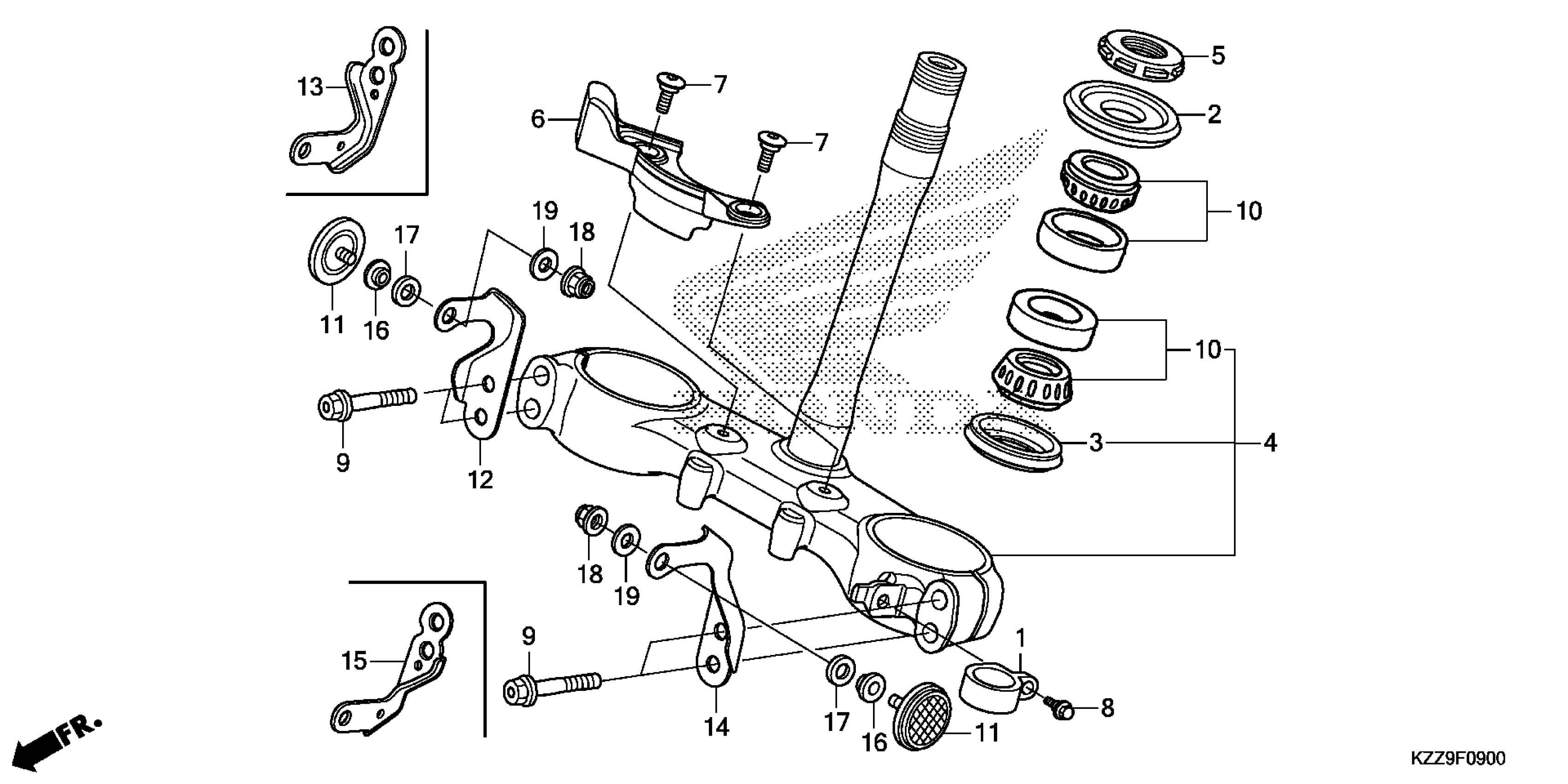

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 STEERING STEM Diagram

GUIDE, FR. BRAKE HOSE

45468-KZZ-J80

$3.01

DUST SEAL, STEERING (UPPER)

53214-KZZ-901

$6.05

DUST SEAL, STEERING HEAD (ARAI)

53214-MCJ-751

$4.33

STEM SUB-ASSY., STEERING

53219-KZZ-A20

$188.39

THREAD, STEERING HEAD TOP

53229-MN1-650

$15.31

COVER, HEAD PIPE

61150-KZZ-J00

$9.38

BOLT, SOCKET (6X18)

90001-K04-930

$1.49

BOLT, FLANGE (6MM)

90113-KZZ-900

$1.49

BOLT, FLANGE (8X45)

90155-KZZ-J00

$1.49

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

BRACKET, R. SIDE REFLECTOR

60114-KZZ-J10

$20.80

BRACKET, L. SIDE REFLECTOR

60115-KZZ-J10

$20.80

COLLAR, REFLECTOR

61101-KZZ-J10

$14.77

RUBBER B, MOUNTING

61106-KW6-840

$1.54

NUT, U (6MM)

90301-VK9-A31

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49
