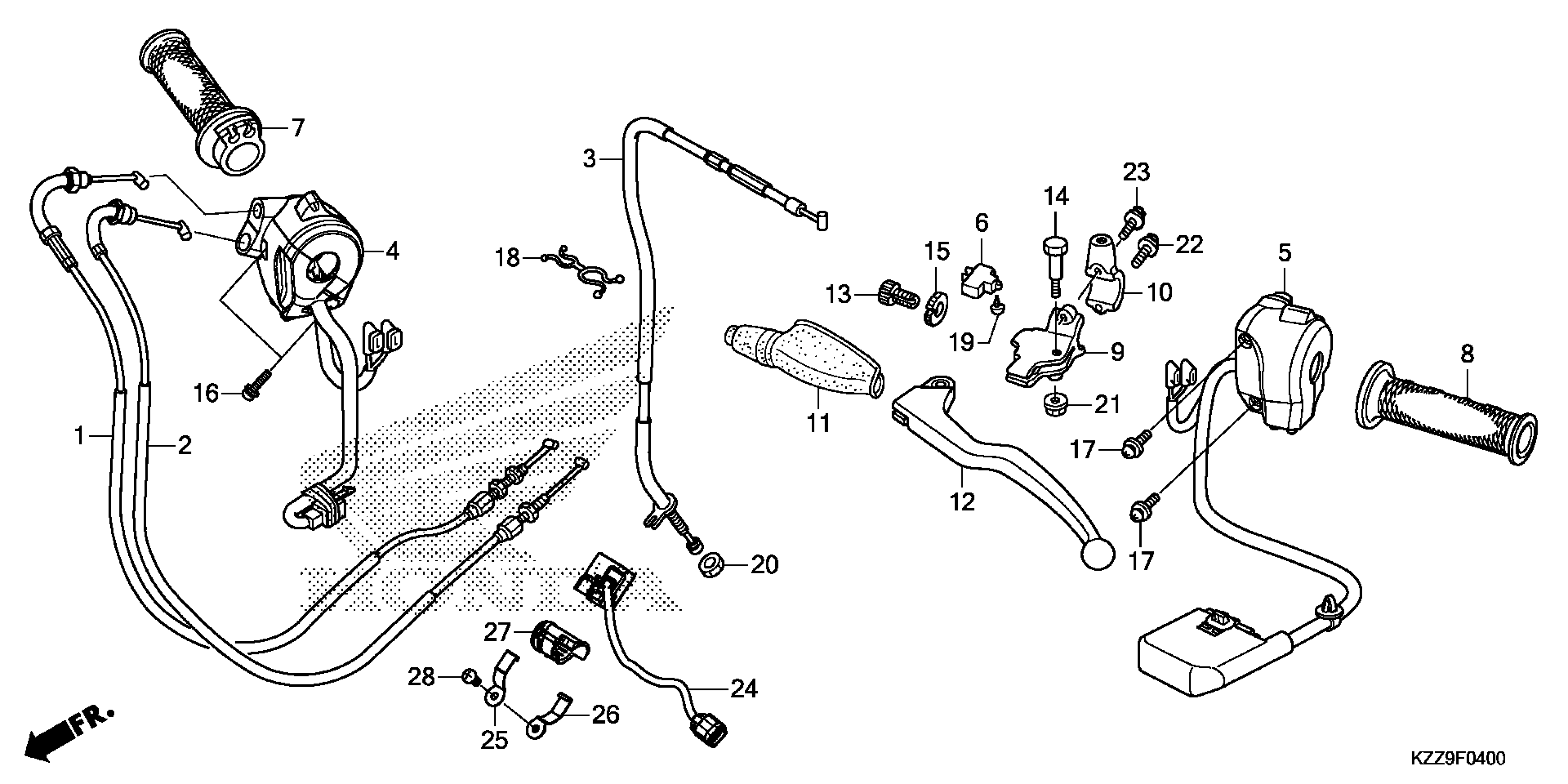

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KZZ-J00

$13.23

2

CABLE B, THROTTLE

17920-KZZ-J00

$13.23

3

CABLE, CLUTCH

22870-KZZ-J00

$13.13

4

SW ASSY., ENG STOP This part replaces 35130-KZZ-J01.

35130-KZZ-J02

$56.16

5

SWITCH ASSY., TURN SIGNAL

35200-KZZ-J02

$131.67

6

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

7

GRIP, THROTTLE (COO)

53140-KZZ-305

$8.17

7

GRIP, THROTTLE (COO) This part replaces 53140-KZZ-900.

53140-KZZ-305

$8.17

8

GRIP, L. HANDLE (COO)

53150-KZZ-305

$8.71

8

GRIP, L. HANDLE (COO) This part replaces 53150-KZZ-900.

53150-KZZ-305

$8.71

9

BRACKET, L. HANDLE LEVER

53172-KZZ-900

$14.79

10

HOLDER, L. LEVER BRACKET

53174-KZZ-900

$16.07

11

COVER, L. HANDLE LEVER

53177-KZZ-900

$2.92

12

LEVER, L. HANDLE (COO)

53178-KZZ-305

$12.21

12

LEVER, L. HANDLE (COO) This part replaces 53178-KZZ-900.

53178-KZZ-305

$12.21

13

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

14

BOLT, HANDLE LEVER PIVOT

90113-KZZ-J00

$1.49

15

NUT, FIXING

90321-315-670

$7.31

16

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

17

SCREW-WASHER (5X16)

90508-KZZ-900

$1.49

18

CLIP, PURSE LOCK

90647-657-671

$5.67

19

SCREW, TAPPING (3X12)

93901-32320

$1.49

20

NUT, HEX. (8MM)

94002-08000-0S

$1.49

21

NUT, FLANGE (6MM)

94050-06070

$1.49

22

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

23

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
