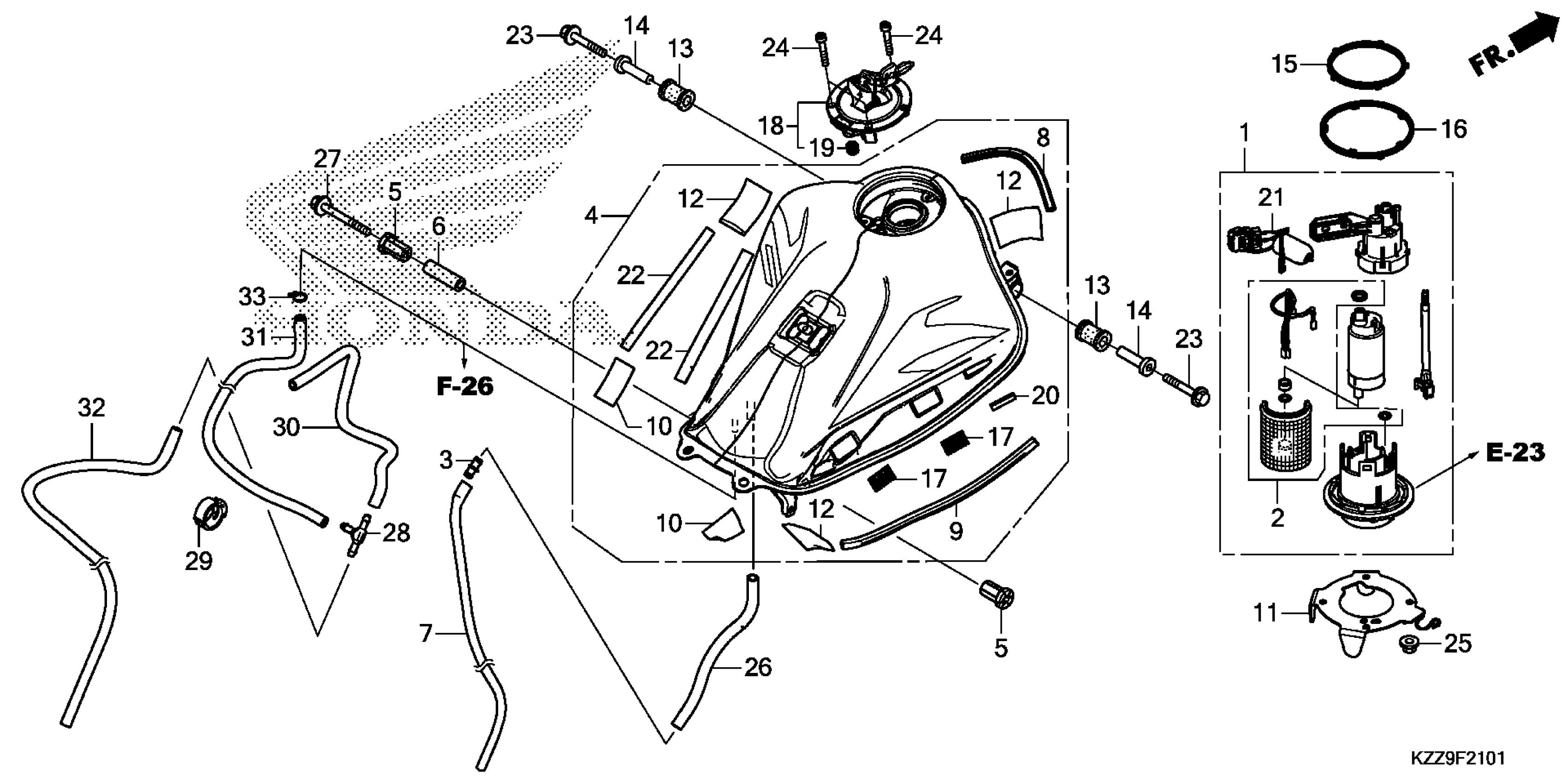

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 FUEL TANK (2) Diagram

PUMP ASSY., FUEL (MSDS)

16700-KZZ-J01

$161.37

FILTER SET

16707-K45-N01

$24.22

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL (TYPE1) (WL)

17500-KZZ-U00ZB

$256.55

CUSHION, FUEL TANK PIVOT

17506-KZZ-900

$2.05

COLLAR, TANK SET

17507-KZZ-900

$1.59

TUBE, DRAIN

17508-KZZ-J00

$5.48

TRIM A, FUEL TANK

17516-KZZ-900

$6.31

TRIM B, FUEL TANK

17517-KZZ-900

$7.19

SEAL, TANK

17521-KY1-300

$2.31

PLATE, SETTING

17527-KZZ-J00

$8.11

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR

17538-KZZ-900

$2.41

GASKET, FUEL PUMP

17572-KPN-A71

$20.60

DUST SEAL

17573-KPN-A71

$12.89

FASTENER A, DUAL LOCK (18X28)

17580-MGZ-J00

$2.52

CAP COMP This part replaces 17620-KZZ-J01.

17620-KZZ-J03

$199.00

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$5.14

CUSHION, SHROUD

17850-KZZ-J00

$1.49

FUEL UNIT

37800-KZZ-J01

$35.59

FILM, PROTECTOR

83512-KZZ-J00

$3.64

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
