Description

Price

1

CLAMP A, BRAKE HOSE

45461-KZZ-J00

$1.38

2

CLAMP B, BRAKE HOSE

45462-KZZ-J00

$1.93

3

FORK ASSY., R. FR. (SHOWA)

51400-KZZ-S01

$761.97

4

SPRING, FR. FORK

51401-KZZ-J01

$85.87

5

TUBE (OUTER)

51410-KZZ-U01

$399.13

6

RING, BACK-UP

51412-KA4-711

$9.65

7

SPRING, REBOUND

51412-KZZ-901

$13.72

8

BUSH, GUIDE

51414-MFN-D01

$7.08

9

BUSH, SLIDER

51415-MGP-D01

$14.84

10

SEAT, STOPPER

51419-KZZ-901

$6.61

11

PIPE, R. SLIDE

51425-KZZ-J01

$238.33

12

ROD

51426-KZZ-901

$138.39

13

DAMPER, FR.

51430-KZZ-J01

$93.26

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51450-KZZ-901

$51.82

16

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

17

RING, STOPPER

51456-KZZ-901

$10.20

18

RING, WEAR

51476-MFB-003

$6.57

19

SEAL SET, FR. FORK

51490-KZZ-J01

$26.20

20

CUSHION ASSY., L. FR. (SHOWA)

51500-KZZ-S01

$750.89

21

PIPE, L. SLIDE

51426-KZZ-J01

$233.08

22

PROTECTOR, R. FR. FORK (TYPE1)

51610-KZZ-D20ZA

$27.62

23

PROTECTOR, L. FR. FORK (TYPE1)

51620-KZZ-D20ZA

$27.46

24

BOLT, PROTECTOR (6MM)

90106-KZZ-900

$1.49

25

BOLT, FLANGE (8X40)

90107-MGE-000

$2.66

26

BOLT, FLANGE (6MM)

90113-KZZ-900

$1.49

27

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

28

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

29

DUST SEAL

91254-ML3-791

$16.10

30

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

31

COLLAR, SPRING

51402-KZZ-J01

$8.49

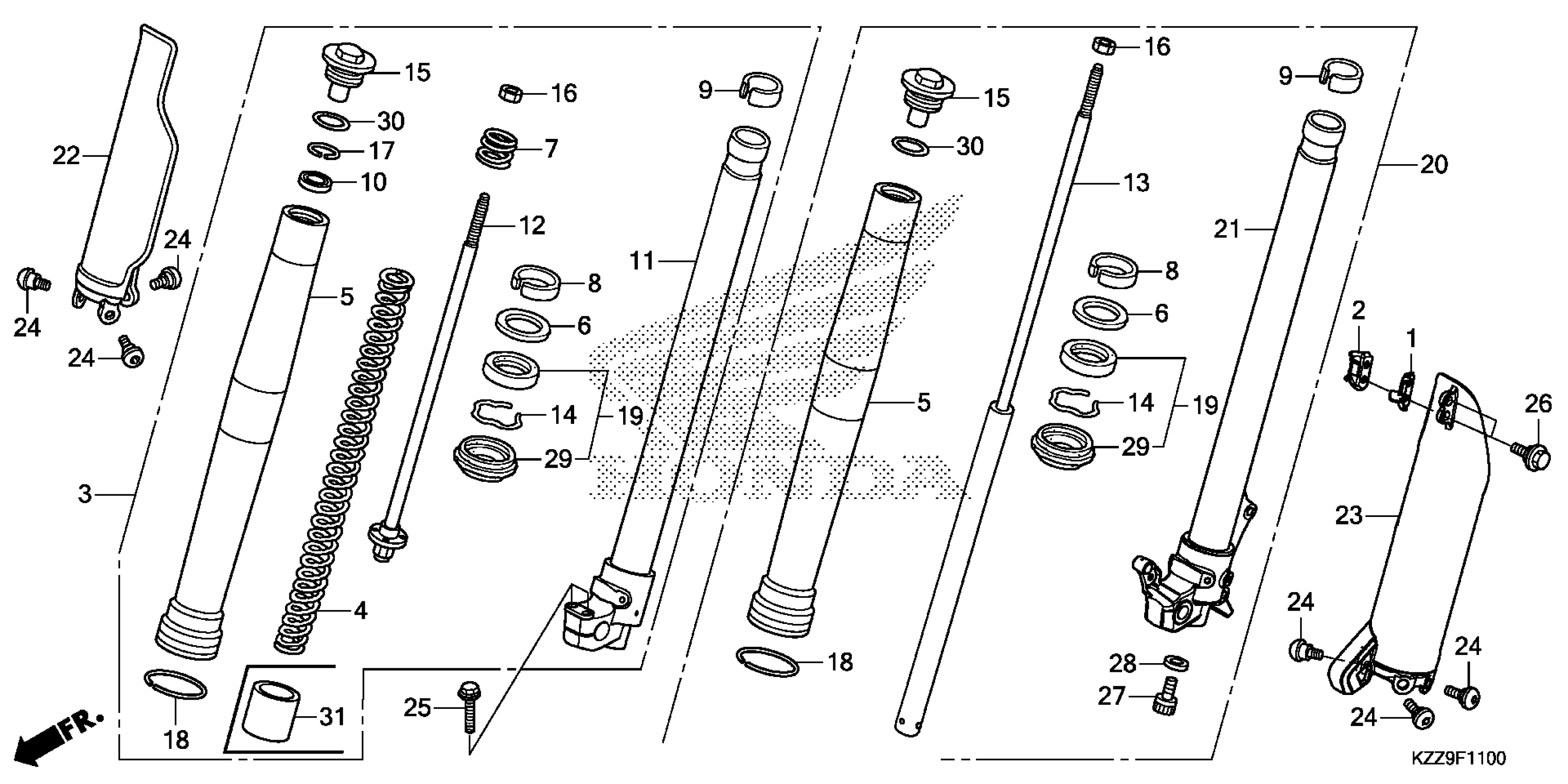

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 FRONT FORK Diagram
