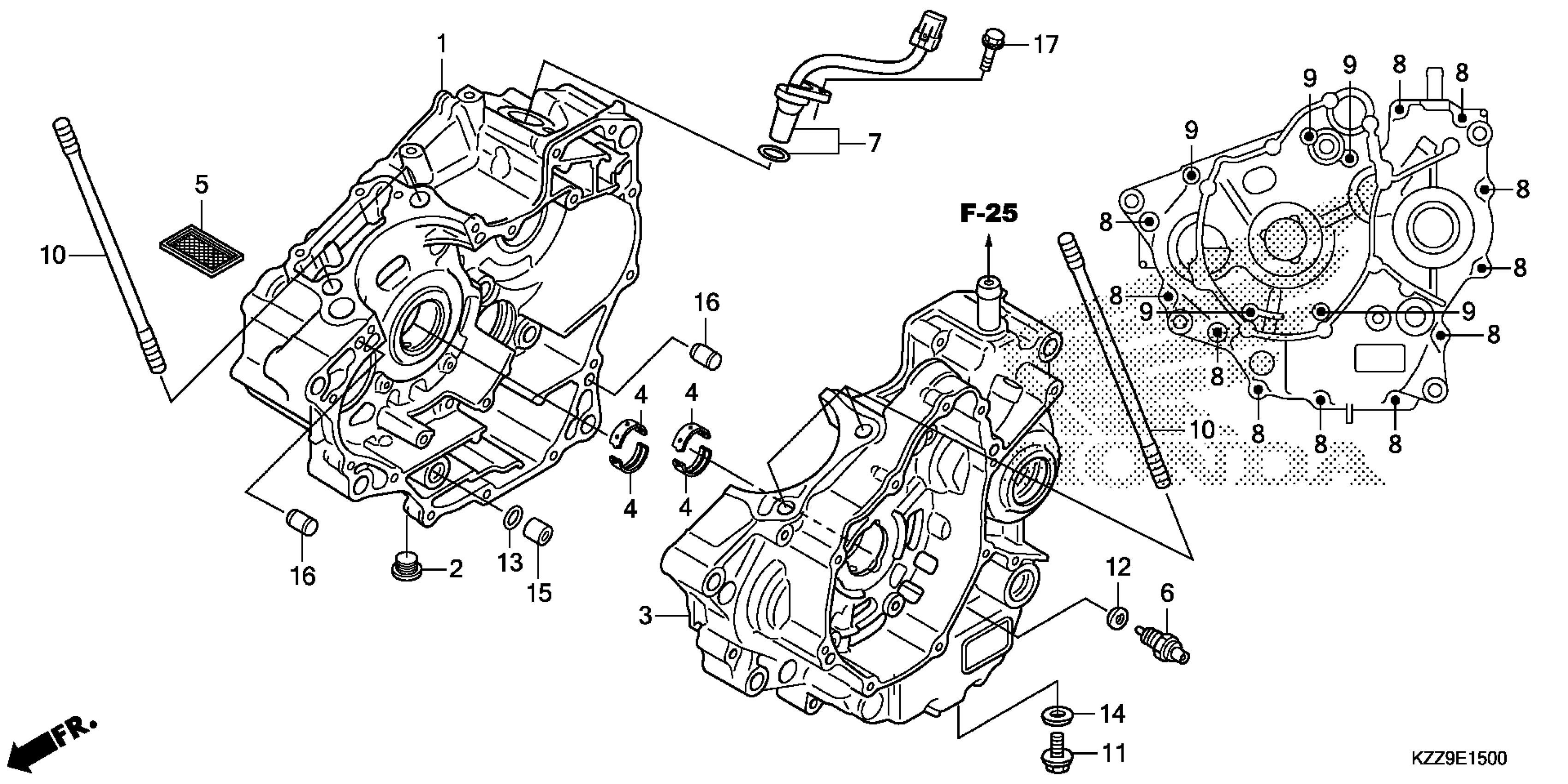

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KZZ-900

$150.43

2

BOLT, SEALING (16MM)

11107-KYJ-900

$2.87

3

CRANKCASE, L.

11200-KZZ-900

$155.96

4

BEARING A, CRANKSHAFT (BLUE)

13312-K33-D01

$10.57

4

BEARING B, CRANKSHAFT (BLACK)

13313-K33-D01

$10.57

4

BEARING C, CRANKSHAFT (BROWN)

13314-K33-D01

$10.57

4

BEARING D, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13315-K33-305

$11.38

4

BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) | (Optional).

13316-K33-305

$11.38

4

BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13317-K33-305

$11.38

4

BEARING G, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13318-K33-305

$11.49

5

SCREEN, OIL FILTER

15421-KYJ-900

$2.80

6

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$16.98

7

SENSOR ASSY., SPEED

37700-KZZ-901

$41.80

8

BOLT, FLANGE (6X40) (NSHF)

90014-KYJ-900

$0.57

9

BOLT, FLANGE (6X70) (NSHF)

90016-KYJ-900

$0.78

10

BOLT, STUD (10X178)

90032-K33-D00

$3.19

11

BOLT, DRAIN PLUG (12MM)

90061-KYJ-900

$0.87

12

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.22

13

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

14

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

15

PIN A, DOWEL (12X16)

94301-12160

Unavailable

16

PIN B, DOWEL (8X14)

94302-08140

$2.04

17

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48
