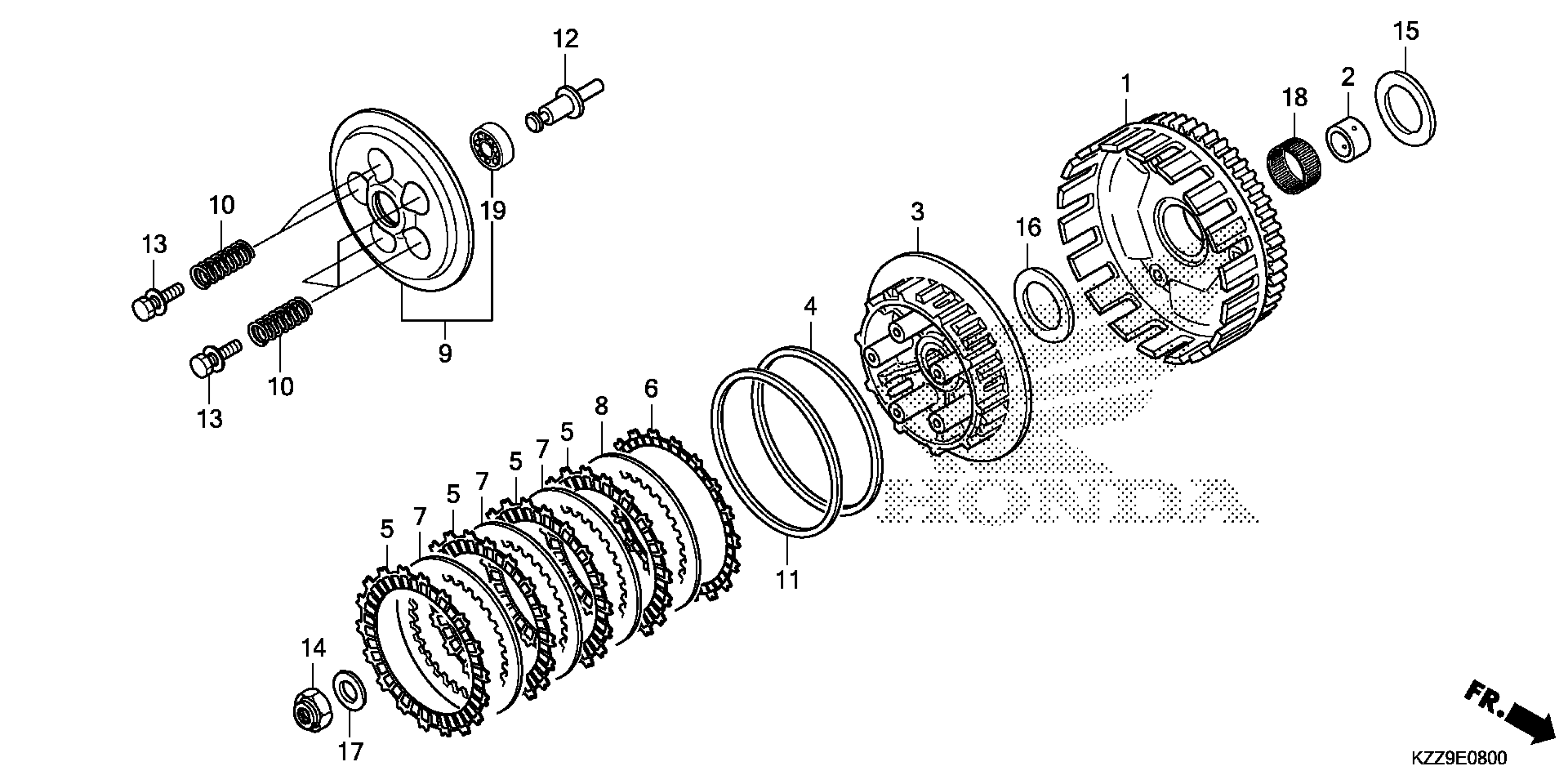

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER (73T)

22100-KZZ-901

$230.02

2

GUIDE, CLUTCH (OUTER)

22116-KYJ-900

$3.26

3

CENTER, CLUTCH

22121-KZZ-901

$46.71

4

SEAT, JUDDER SPRING

22125-KZZ-901

$17.21

5

DISK, CLUTCH FRICTION

22201-MGZ-J01

$17.53

6

DISK B, CLUTCH FRICTION

22202-KZZ-901

$19.41

7

PLATE, CLUTCH

22321-KYJ-902

$7.18

8

PLATE B, CLUTCH

22322-KZZ-901

$8.81

9

PLATE, CLUTCH PRESSURE

22350-KYJ-902

$40.88

10

SPRING, CLUTCH

22401-KYJ-902

$2.87

11

SPRING, JUDDER

22402-KZZ-902

$19.15

12

PIN, CLUTCH LIFTER

22847-KZZ-900

$9.16

13

BOLT (6X1.0)

90050-KYJ-902

$1.49

14

NUT, SPECIAL (16MM)

90201-KYJ-900

$3.67

15

WASHER (20X40X2)

90404-KVK-900

$3.01

16

WASHER (20X40X2)

90404-KYJ-902

$2.89

17

WASHER (16MM)

90434-KPS-900

$2.05

18

BEARING, NEEDLE (28X33X16.8)

91012-KYJ-901

$6.13

19

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
