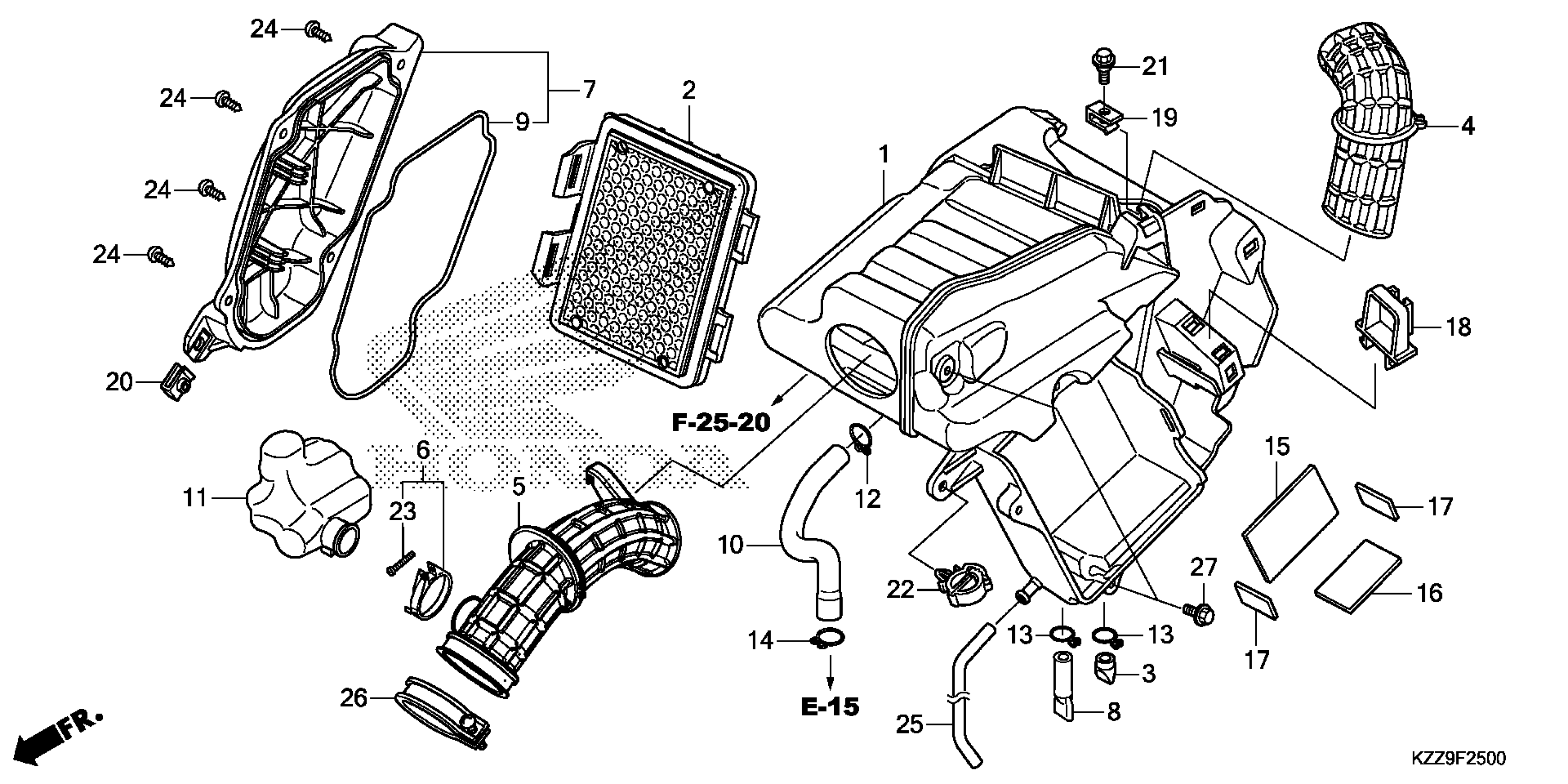

Honda CRF250RLAC (20) MOTORCYCLE, THA, VIN# MLHMD440-L5300001 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-KZZ-900

$31.79

2

ELEMENT, AIR CLEANER

17220-KZZ-900

$16.26

3

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

4

DUCT, AIR CLEANER

17241-KZZ-900

$17.79

5

TUBE, AIR CLEANER CONNECTING

17251-KZZ-J00

$30.95

6

BAND, RESONATOR (28)

17255-MCG-000

$9.51

7

LID, AIR CLEANER

17260-KZZ-900

$7.33

8

TUBE, DRAIN

17261-KVB-T00

$1.49

9

SEAL, AIR CLEANER

17262-KZZ-900

$1.57

10

TUBE, BREATHER

17265-KZZ-900

$6.90

11

RESONATOR

17311-KZZ-900

$5.92

12

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

13

CLIP, BREATHER TUBE

17371-174-670

$2.20

14

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

15

RUBBER, BATTERY CUSHION

31511-KCZ-J60

$3.99

16

RUBBER, BATTERY CUSHION

31511-KE2-850

$3.77

17

RUBBER, BATTERY CUSHION

31511-KZZ-900

$1.52

18

STAY, FUSE BOX

80105-KZZ-900

$1.49

19

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

21

BOLT, FLANGE (6MM)

90109-KZZ-900

$1.49

22

CLIP

90652-KZZ-901

$1.79

23

SCREW, PAN (5X25)

93500-05025-0G

$1.49

24

SCREW, TAPPING (5X20)

93903-25480

$1.49

25

BULK HOSE, VINYL (7X11X8000) (7X11X360) (SOURCE: VINTAGE PARTS INC.)

95003-19008-10M

Unavailable

26

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56250

$5.42

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
