Description

Price

1

BASE, TAILLIGHT

33703-KZZ-J01

$51.89

2

SOCKET, TAILLIGHT

33704-KZZ-J01

$17.12

3

COLLAR, TAILLIGHT

33705-KZZ-J01

$1.13

4

LIGHT ASSY., LICENSE

33720-KZZ-J01

$36.88

5

REFLECTOR, REFLEX

33741-KPL-902

$6.86

6

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

7

BULB, TAILLIGHT (12V 21/5W) (KOITO)

34906-KSS-C01

$8.88

8

STAY, NUMBER BRACKET

80110-KZZ-J00

$41.94

9

COVER, TAILLIGHT

80115-KZZ-J00

$8.26

10

RUBBER, TAILLIGHT MOUNTING

83545-KZZ-J00

$1.68

11

BRACKET, NUMBER PLATE

84701-KZZ-D10

$17.55

12

BOLT (4X10)

90008-ZM7-000

$1.75

13

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$0.54

14

BOLT, FLANGE (6MM)

90110-KZZ-900

$0.68

15

SCREW, SPECIAL (5X14)

90114-MGZ-J00

$0.80

16

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

17

NUT, U (5MM)

90301-KWN-901

$0.61

18

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

19

SCREW, TAPPING (4X12)

93903-24380

Unavailable

20

WASHER, PLAIN (6MM)

94103-06800

$0.71

21

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

22

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

23

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

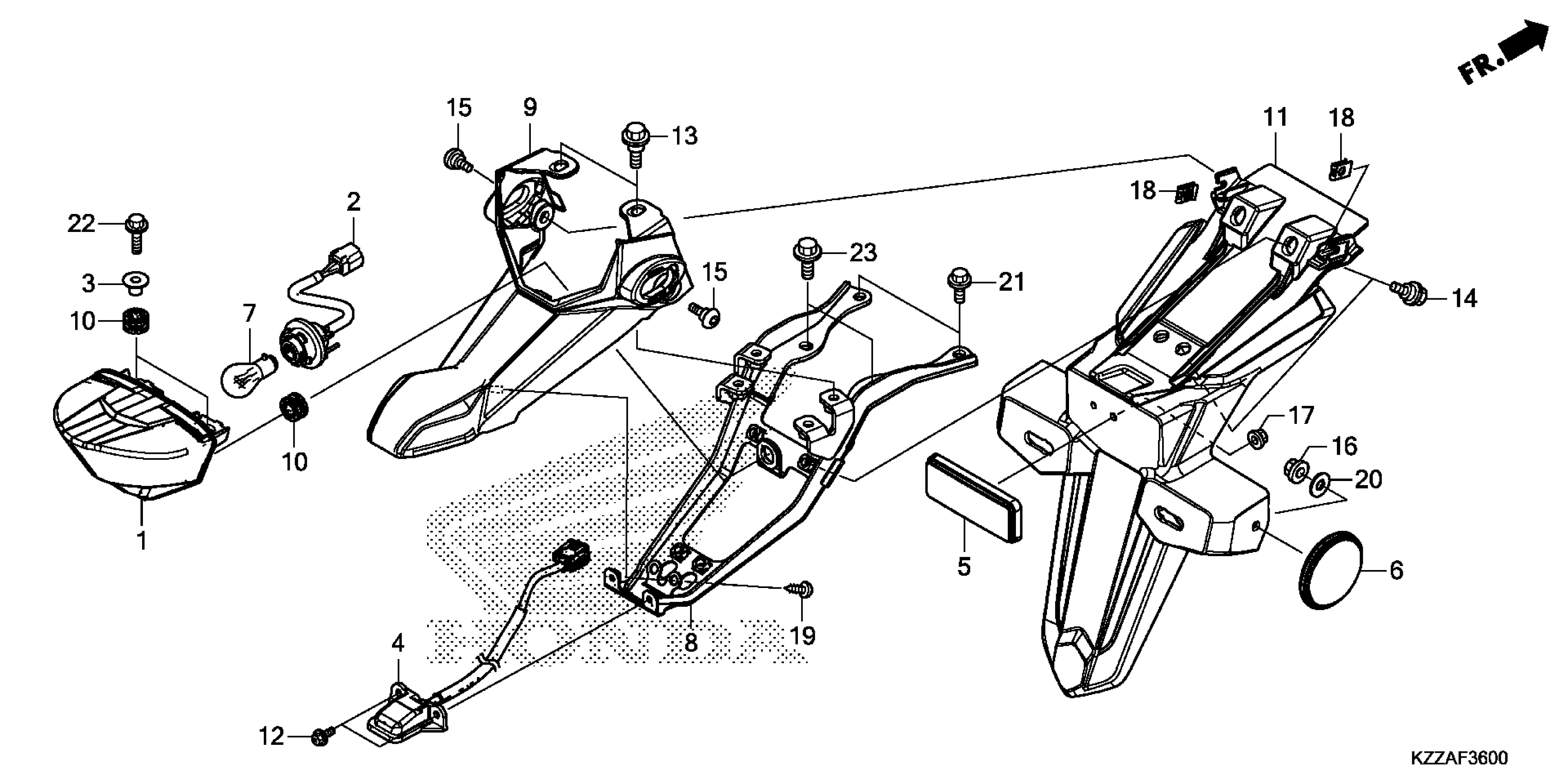

Honda CRF250RLAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 TAILLIGHT Diagram
